Car Rear View Mini Coms Camera

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

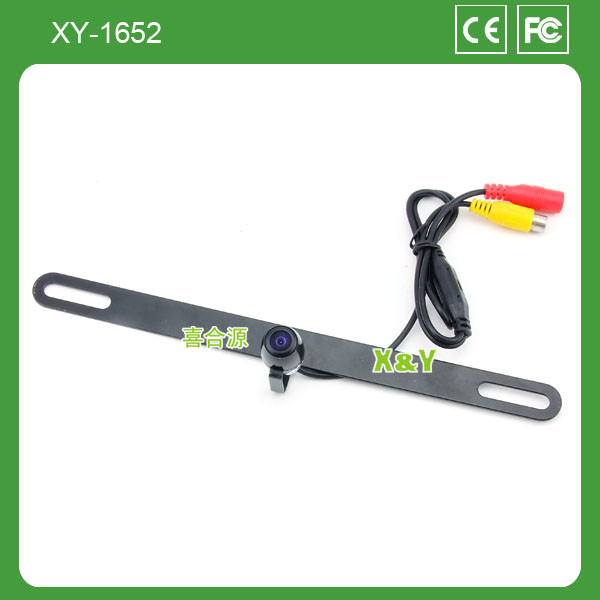

Car Rear View Mini Coms Camera

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$10.0 - $12.0 / Piece

Min. Order (Pieces)	Unit Price
50.0	US $ 12/ Piece
500.0	US $ 11/ Piece
3000.0	US $ 10/ Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Jun 21, 2014 To Sep 19, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:XY-1652

Interface:RCA

Definition:380TVL

Chip:CMOS

Waterproof Grade:IP67

Images Sensors:CCD/CMOS

TV System:PAL/NTSC

Camera Dimension:18X20mm

Video Cable Length:6m

Min Illumination:0.01lux

Current Consumption(Ma):100mA

Mirror/Normal Switch:Optional

Parking Line Switch:Optional

Rotation Lock:Support

Export Markets:Global

Additional Info.

Trademark:X&Y OEM

Packing:50PCS/Carton

Standard:CF

Origin:Guang Dong Guang Zhou

HS Code:8525801390

Production Capacity:9000PCS/Month

Product Description

High quality car camera help driving safely.
170 degree large angle.
High resolusion 480 lines.
Min illumination Low to 0.01LUX
With high quality images sensors.
Images Sensors CCD/CMOS
TV System PAL/NTSC
Current Consumption(mA): 100
Power Supply(DCV) 12
Operating Temperature(Deg. C): -20~+75(RH95% Max. )

QTY: 50PCS/CTN.
G. W.: 20.75Kgs
Measure: 47 x 35 x 33cm

Welcomes All Customers Vistor Our Factory and Happy to do Business with all overseas
Note: We have strict producing process, aging test and QC to make sure high quality production.
We have established systematic production standard in waterproof, shockproof, temperature resistance,
Humidity resistance, high definition.

Competitive advantage
1. Stable quality (CE FCC ROHS)
2. Most competitive price
3. On time delivery
4. Good aftersales service
5. All products must test one by one wartproof resistance and high/low temperature resistance
6. Warranty: 16months
7. OEM, ODM welcome

Guangzhou X&Y Electronics Co., Ltd. Was established in Guangzhou in 2005. We are a hi-tech enterprise engaged in the R&D, production, and sale of car camera system, car DVR camera. We guarantee punctual delivery, competitive price and prompt response. We welcome your inquiries and look forward to establishing long-term business relationships with you in the near future.

Image Sensor 1/4 " CMOS 7959/3030/7070/1089

NSTC/TV System NTSC/PAL

Sync System internal

Minimum illumination < 1 lux

White balance Auto

Video color Colorful

Waterproof class IP68

Effective pixels 580(H)*540(V)

Resolution 420 TV lines

Sensing area 3.5964*2.7084mm

Video output 1.0Vp-p, 75?

Electronic shutter 1/60S-1/5000S

S/N ratio Better than 48dB

Lens angle 170 degree

Operation temperature -20° ~+70°

Storage temperature -30° ~+80°

Warranty 12 months
