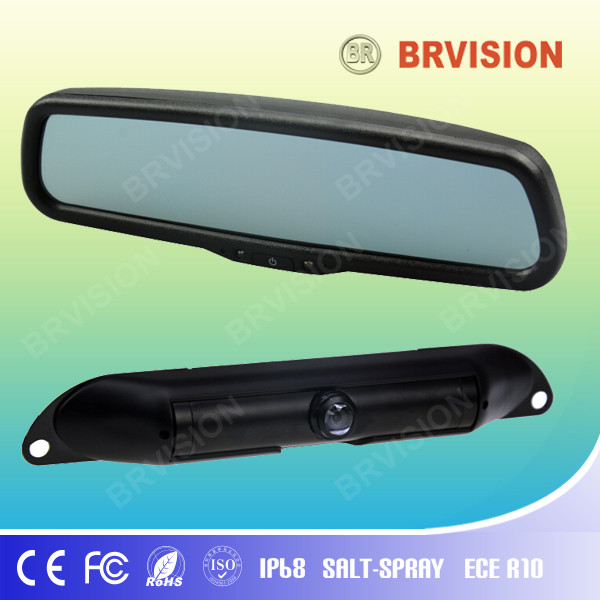

Car Rear View Camera System OE Mirror Monitor

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, EXW

Payment Terms:T/T

Trademark:BR VISION

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:005

Applicable Model:Car

Display Type:Reverse Image

Alarming Distance:2.5-0.35m

Probe Diameter:18.8mm

Interface:RCA

Shell Material:ABS Plastic

Waterproof Grade:IP68

Function:Night Vision

Chip:CCD

Definition:420TVL

Probe Number:1/2/3/4

Export Markets:Global

Additional Info.

Trademark:BR VISION

Packing:Neutral Package

Standard:CE, FCC, Rohs

Origin:China

Production Capacity:50000PCS/Years

Product Description

-3.5" Digital High resolution LCD monitor
- Resolution: 320*240
- One video input with RCA connector
- Automatically switch into reversing image when put on the revers gear
- 12 power input.
- Bracket mount to stick on the window shield glass
- Option bracket: Ford, Toyota, Volkswegen, Citroen bracket
- Drill hole Rear View Camera for option.

- Image Sensor : 1/4" Sharp/Sony Color CCD
- TV System: N TSC/ PAL
- IP Rating: IP68.
- Vibration Rate: 10G
- Night Vision function: 16pcs LED lamp
- Audio Function: Avilable
- Ef fective Pixels N: 510×492 pixels P: 500×582 pixels
- Horizontal Resolution: 420TVL
- Video Output : 1.0vp- p,75Ohm,
- Built-in Lens:2.8mm
- Wide angle: 120°
- Power Supply: 12V DC(+/-10%)
- Power consumption: <3W
- Silver Alluminium housing.
- Oper at i ng Temp: - 20C° t o +70C°
- Storage Temp: - 30C° t o +80C°
- Housing: Sliver/White/Black housing for option
