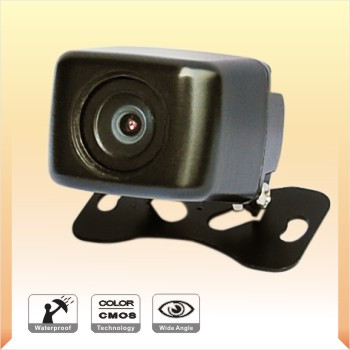

Car Rear View Camera (DF-S1109)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:Express

Trademark:VEISE

Standard:CE, FCC, ISO9001: 2000

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DF-S1109

Type:Car Camera

Additional Info.

Trademark:VEISE

Standard:CE, FCC, ISO9001: 2000

Origin:China

Production Capacity:5000PCS/month

Product Description

*Waterproof rear view camera with OV7949 1/3-inch Color CMOS
Reversing camera with power DC12V, 2.25-16mm Optional Lens
*Water resistance: IP66 (encased in metal housing)
*Backup CMOS camera suit for vehicle forward/rear view system, loaded 2.25MM lens for wide-angle(135 degrees)
*Wireless optional: it can be wireless by connecting with our miniature wireless launcher and receive box

Model	DF-S1109
Image Pick-up Device	1/3" OV7949 Color CMOS
Horizontal Resolution	330 TV Lines
Number of Pixels	PAL:628(H)×586(V);NTSC:510 (H)×496(V)
Scanning System	NTSC:525 Lines,60 Field/sec, PAL:625 Lines 50 Field/sec
Sync System	Internal Synchronization
Gamma Characterlstic	0.45
S/N Ratio	?48dB(AGC Off)
Electronic Shutter Time	On: NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec; Off: NTSC 1/60 Sec, PAL 1/50 Sec
Usable Illumination	3 Lux(F:2.0)
Lens	Board Lens 3.6mm/F2.0(optional)
Video Output	1.0Vp-p 75 ohm
Gain Control(AGC)	Auto
Cable	BNC JACK
Water resistance	IP66
Operation Temperature	-10ºC~+50ºC RH95% Max
Storage Temperature	-20ºC~+60ºCRH95% Max
Power Supply	DC12V±10% 400mA
Dimension	160 x 310(mm)
Weight	300 g
