1. Brief Introduction:

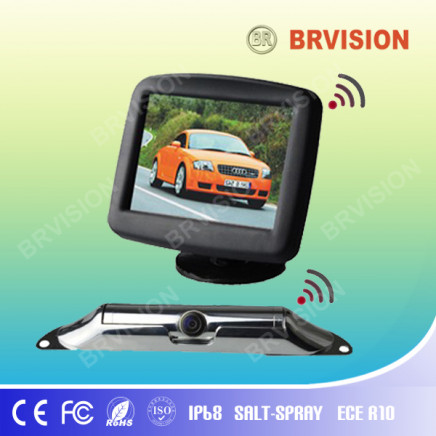

- License plate rear view camera,
- 1/4" CMOS color sensor,
- 170° view angle,
- 12V DC power input

2. Certificate:

- CE, FCC, Emark, ISO9001-2008

3. Quality Control:

 - Ageing Test
- Waterproof Test
- Salt-spray Test
- Viberation Test
- Cable Swing Test
- High Pressure Immersion Water Test
- High Low Temperature Testing: -20C°-70C°

4. Key Specification:

- Image Device: 1/4" CMOS image sensor
- TV System:  NTSC/PAL
- View Angle: 170°
- Waterproof: IP68
-  Vibration Rate: 10G
- Resolution: 420TV lines
- 1.8mm waterproof lens
- Effective Pixels: 510*496pixels
- Sensing Area: 5.961mm*4.276mm
- Minimum Illumination: 0-01Lux
- Video Output: 1-0vp-p, 75Ohm
- Gamma Consumption: 0-45
- White Balance: Auto
- S/N Ratio: Better than 48dB
- Electronic Shutter: 1/60S-1/5000S
- Power Supply: DC12V
- Operating Temperature: -20° to +70° (RH95%Max.)
- Storage Temperature (Deg.C): -30~+80°(RH95%MAX.)
