Car Camera for Farm Agricultural Machinery Vehicle, Livestock, Tractor, Combine, RV Vision

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Car Camera for Farm Agricultural Machinery Vehicle, Livestock, Tractor, Combine, RV Vision

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, EXW

Payment Terms:L/C, T/T, Western Union

Trademark:VEISE

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DF-8093

Shell Material:ABS Plastic

Probe Number:2

Display Type:LCD Matrix

Interface:Air Plug

Function:Night Vision

Definition:420TVL

Chip:CCD

Waterproof Grade:IP69k

Alarming Distance:2.5-0.35m

Probe Diameter:24mm

Export Markets:Global

Additional Info.

Trademark:VEISE

Packing:Gift Box

Standard:CE, FCC, ISO9001: 2000, RoHS

Origin:China

HS Code:8525801390

Production Capacity:5000PCS/Month

Product Description

car camera for Farm Agricultural Machinery Vehicle, Livestock, Tractor, Combine, RV Vision

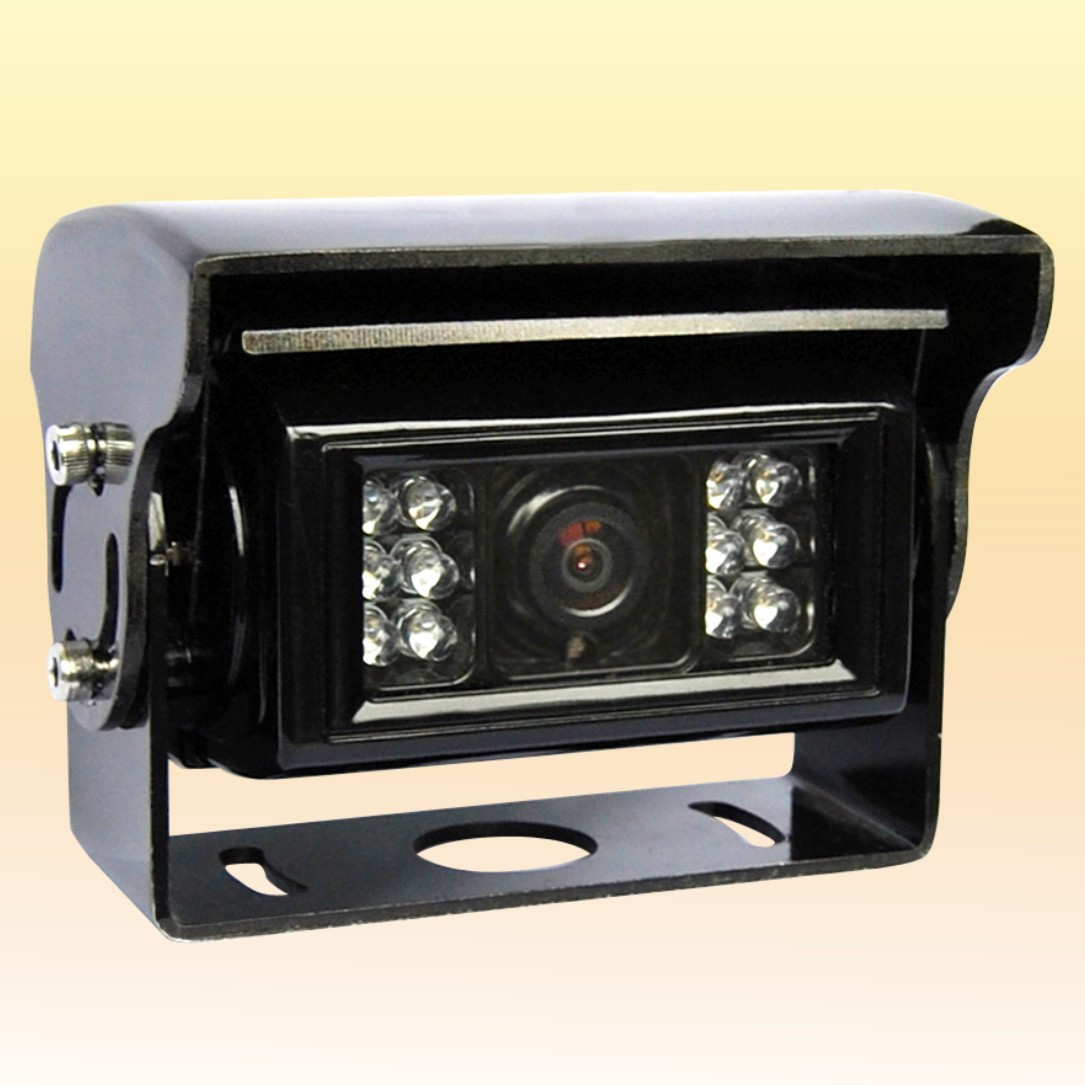

Auto Shutter Backup Camera Part
*Miniature Size Auto Shutter 2.4G Wireless Backup Camera
*Free Operating Voltage DC11-32 Volts and IP68 Waterproof
*Automatic Motorized Protection Shutter Sunvisor, Built in IR LED's for Picture Support in the Dark
*Automatic Heating Below +10oC, Switchable Magnetic Screw for NORMAL/MIRROR View Selection

PRODUCT SPECIFICATION

AUTO Shutter Backup Camera (DF-8093)

Image Type: 1/3 Color SHARP CCD

Resolution(pixels): PAL:500(H)*582(V) ,NTSC:510(H)*492(V)

Horizontal Resolution: 420TV Lines

Usable Illumination : 0Lux (12pcs LEDs for night vision 10M )

Free viewing angle: 130°

Video Output: 1.0Vp-p 75 ohm

Shockproof: 10G

Waterproof: IP68

Operation Temperature : -50ºC~+50ºC RH95%Max(Automatic Heating Below +10oC)

Storage Temperature : -20ºC~+60ºC RH95%Max

ee Operating Voltage: DC11-32 Volts

Dimensions: 89(W) x 53(H) x 48(D) mm (without mounting)

Weight : 200g
