Car Black Box with Navigation Function for Pioneer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:200 Sets

Trade Terms:FOB

Payment Terms:T/T, Western Union, Paypal

Trademark:LLT

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LLT-PR3110

Type:GPS Navigator

Use:Automotive

Port Number:Multiplex Multi-purpose Channel

Model:Integration Type

Carrier Frequency:Dual-Frequency

Chip:SiRF

Certification:ISO/TS16949, ISO14001, ISO2000

CPU:800MHz

RAM:256MB

Hvga:800*480

Main Chip Model:Sirf Atlas V/Msb2531

Navigation Storage:SD Card

OS:Wince6.0 Core

Storage Temperature:~40 to +100

Wv:DC 9-16V

Export Markets:Global

Additional Info.

Trademark:LLT

Packing:Standard Export Box

Standard:CE, SGS

Origin:Shenzhen, Gongdong

Production Capacity:50000PCS

Product Description

HD/Mimic Navigation, Navigation Module, Navigation System, GPS Box For Pioneer, Alpine, JVC, Kenwood, Philips, Sony, Clarion with AVH-P6300BT/P8400BH/X8500BHS/X7500BT/X6500DVD/X4500BT/X2500BT/X1500DVD, VH-P4250/3250/6850/4150/4450
Installation advantages:

1) Nondestructive installation design, which does not damage to the wires of original car; Special interface cable, plug-up installation without wire cut;
2) Choose installation functions freely(Bluetooth optional);
3) Technology is reliable, take the original agreement;

4) After the upgrade, it still retains all the functions of the original host, even if navigation goes wrong, does not affect the function of the use of the original car;
5) After-sales service is convenient, replace the adapter module directly, compare with special machine, it's simple, less risk, safety and reliable
6) Choose beautiful interface by yourself;

7) Achieve handwritten navigation, and control the navigation by touching it. Compare with the original navigation module, it's more convenient and flexible.

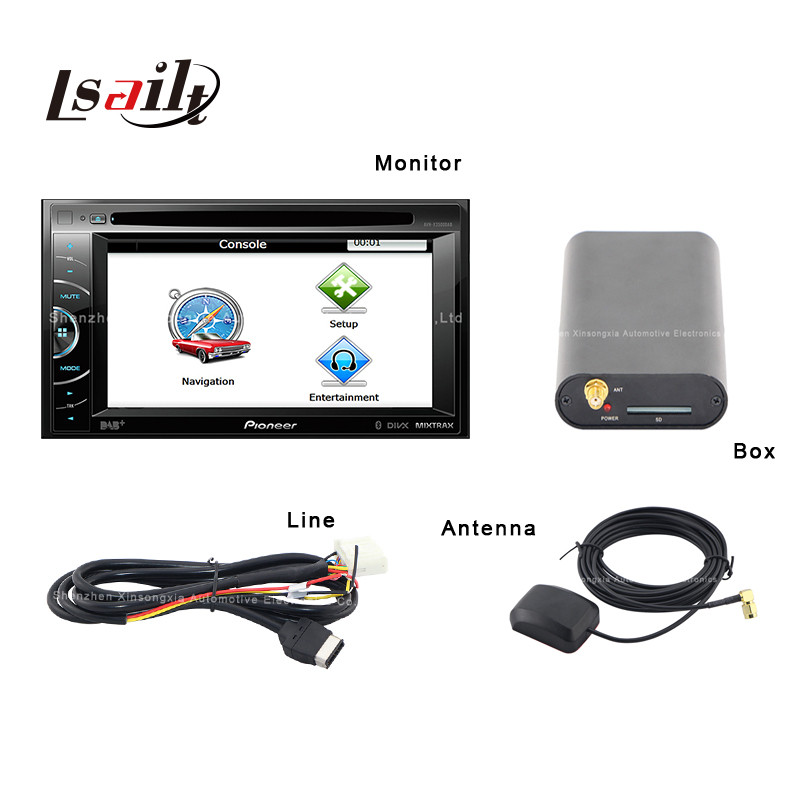

Product accessories

Mainframe	1(standard configuration)
Dedicated wire	1(standard configuration)
Antenna	1(standard configuration)
Specification	1(standard configuration)
certification	1(standard configuration)
Warranty card	1(standard configuration)
Microphone	1(optional configuration)
Horn	1(optional configuration)
Map card	1(optional configuration)
Mute dedicated line	1(optional configuration)

Product parameters

CPU	664MHZ+336MHZ DSP/800MHZ
model	Sirf Atlas V/MSB2531
RAM	128MB/256MB
Storage space:	128MB(can expand to 8GB)
Storage space:	SD card
Operating system:	WINCE6.0 CORE
Supported audio and video formats:	MP3/PCM/WMA/ Mp4/mpeg/mpg/asf/wmv/mov etc.
Support video type:	Mp4/mpeg/mpg/asf/wmv/mov etc.
Video output format:	Composite Video(CVBS,Y/C,YPbPr)/ Analog RGB
Video output voltage:	1.0Vpp/75?
Resolution:	800X480(selection by resistor)
Sound output:	Dual channel CD stereo sound
Operating temperature:	~40 to +85
Storage temperature:	~40 to +100
Operating voltage:	DC 9-16V
Tracking sensitivity:	~161dBm
Positioning accuracy:	10m, 2D RMS,5m, 2D RMS, WAAS enable
GPS Antenna type:	External active ceramic antenna

For models:AVH-P6300BT/P8400BH/X8500BHS/X7500BT/X6500DVD/X4500BT/X2500BT/X1500DVDetc. all machine with NAVI interface . (800X480)

Statement: All brands on this website are belong to original company, if do not want to use this website, please note in time and delete.
