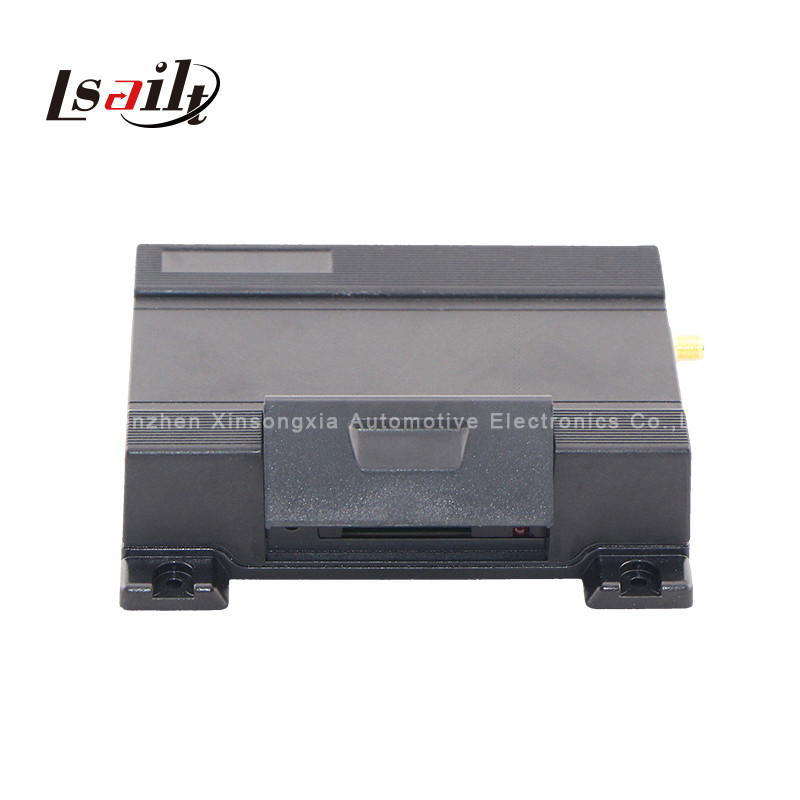

Car Black Box on HD Philips with Navigation System

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:50 Sets

Trade Terms:FOB

Payment Terms:T/T, Paypal

Trademark:LLT

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LLT-PH3700

Type:GPS Navigator

Use:Automotive&Hand Held

Port Number:Multichannel

Model:Integration Type

Carrier Frequency:Dual-Frequency

Chip:SiRF

Brand:Philips

Frequency:664MHz+336MHz DSP/800MHz

Main Chip:Sirf Atlas V/Msb2531

Storage Space:128MB/256MB

Definition:800*480(Selection by Resistor)

Operating System:Wince6.0 Core

Map Card:SD Card

Operating Temperature:~40軏 to +85軏

Support Video Type:MP4/MPEG/Mpg/Asf/WMV/MOV etc.

Sound Output:Dual Channel CD Stereo Sound

Positioning Accuracy:10m, 2D RMS, 5m, Waas Enable

Export Markets:Global

Additional Info.

Trademark:LLT

Packing:Standard Export Box

Standard:CE, SGS

Origin:Shen Zhen, Guang Dong

Production Capacity:50, 000per/Year

Product Description

HD/Mimic Navigation Box, Navigation Module, Navigation System, Navigation Chipset For
Alpine, JVC, Kenwood, Philips, Pioneer, Sony, Clarion with CED-1700/6900DVD, etc NAVI interface

Installation advantages:
Nondestructive installation design, do not damage the original car line, special interface wire, plug-up installation without wire cut,

Select installation function freely (can select BT function)
Technology is comparatively reliable; Comply with the original car agreement.

Remain all functions of the original host after upgrading. If there are some wrong with navigation, it will not have influence on the original car function.

Convenient After-sale service; It is more simple, fewer risks, safer and more reliable than dedicated machine and it can directly change suitable module.

Choose a beautiful interface freely.

Realize handwritten navigation function, and touchscreen control navigation, which is more convenient and flexible than original industrial navigation.

Product accessories

Mainframe	1(standard configuration)
Dedicated wire	1(standard configuration)
Antenna	1(standard configuration)
Specification	1(standard configuration)
certification	1(standard configuration)
Warranty card	1(standard configuration)
Microphone	1(optional configuration)
Speaker	1(optional configuration)
Map card	1(optional configuration)
Mute dedicated line	1(optional configuration)

Product parameters

Frequency:	664MHZ+336MHZ DSP/800MHZ
Main chip model:	Sirf Atlas V/MSB2531
Memory:	128MB/256MB
Storage space:	128MB(can expand to 8GB)
Navigation software storage:	SD card
Operating system:	WINCE6.0 CORE
Supported audio and video formats:	MP3/PCM/WMA/ Mp4/mpeg/mpg/asf/wmv/mov etc.
Support video type:	Mp4/mpeg/mpg/asf/wmv/mov etc.
Video output format:	Composite Video(CVBS,Y/C,YPbPr)/ Analog RGB
Video output voltage:	1.0Vpp/75?
Resolution:	800X480(selection by resistor)
Sound output:	Dual channel CD stereo sound
Operating temperature:	~40蚓 to +85蚓
Storage temperature:	~40蚓 to +100蚓
Operating voltage:	DC 9-16V
Tracking sensitivity:	~161dBm
Positioning accuracy:	10m, 2D RMS,5m, 2D RMS, WAAS enable
GPS Antenna type:	External active ceramic antenna

For models:CED-1700/6900DVDetc. all machine with NAVI interface . (800X480)

Statement: All brands on this website are belong to original company, if do not want to use this website, please note in time and delete.
