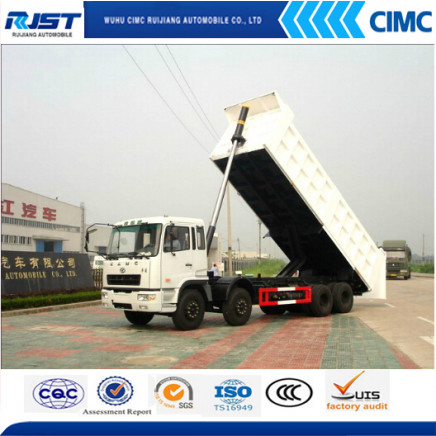

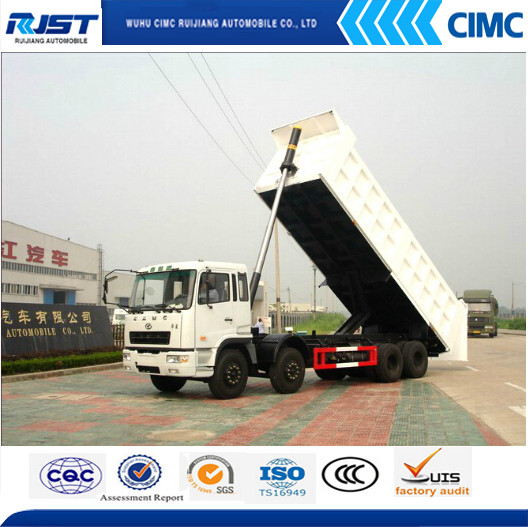

Camc 8X4 25ton 12 Wheel Dump Truck/Tipper Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 32600.0-57000.0/ Piece

Price:$32600.0 - $57000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Mar 30, 2015 To Jun 30, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HN3310P34B8M3

Transmission Type:Automatic

Power:Diesel

Load Capacity:25t

Emission Standard:Euro 3

Drive Wheel:8×4

Engine Capacity:6-8L

Seats:2

Horsepower:251-350hp

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Truck Type:Dump Truck

Export Markets:Global

Additional Info.

Trademark:cimc ruijiang

Packing:in Nude

Standard:ISO9001

Origin:China

Production Capacity:10, 000 units/year

Product Description

CIMC RUIJIANG is a special vehicle manufacturer that belongs to CIMC group and is located in Wuhu, Anhui province. The company possesses assets worth of 160 million US Dollars with total area of 330000 square meters; the plant area encompasses approximately 90000 square meters. We have international advanced production lines for concrete mixers, powder tankers, liquid tank trucks, aluminum alloy tank trucks, dump trucks, semi-trailers. The company produces more than 300 varieties of special vehicles of more than 10 series. CIMC RUIJIANG has won a lot of titles: "National Hi-tech Enterprise","National Torch Plan Enterprise", "The Famous Brand of Anhui Province", "Anhui Province Quality Award" etc. and owns more than 600 national patents.

Product Name		Dump Truck
Product Model		HN3310P34B8M3
Place of Origin		WuHu, Anhui, China
Kerb mass		14ton
Rated Payload		40-60ton
Drive Type		Left-Hand(optional RHD)
Drive Model		8x4
Vehicle Body Color		Yellow(optional)
Overall Dimension (LxWxH)mm		9000x2495x3340
Body interior (mm)		6200×2300×1200
Engine	Brand	Dongfeng Cummins
	Model	L375 30
	Max. Power (kw/r/min)	375/2200
	Max. T Qrgue(Nm/r/min)	1480/1400
	No. of cylinder	6
	Bore x Stroke(mm)	114x145
	Displacement	8900ml
	Control Type	Mechanical
	Air Cleaner	Dry Paper Element
	Emission Standard	Euro II
Clutch	Type	Hydraulic control with air assisted
Clutch	Plate diameter	dry single plate with diaphragm outside diameter: 430 mm
Transmission	Brand	FAST GEAR
	Model	RT-11509C (9-speed & 1-reverse)
	Type	Mechanical
The Number of Axles		4
Rear Axle(drive axle)-Load		16000kgx2
Front Axle-Load		7500kgx2
Cabin type		Classic flat-roof (optional EF,CH,EH)
Cabin		With A/C, Radio, MP3,Bunk
Brake System	Service	Full air brake dual ciruit
	Parking	Spring actugtor at rear wheels
	Auxiliary	Exhaust break
Steering System		recirculation ball with integral power assisted by oil
Wheelbase (mm)		1850+2850+1350
Wheel/Tire	Type	Bias/Radial tube/Radial tubeless
	Model(optional)	11.00-20/11.00R20/11R22.5 12.00-20/12.00R20/12R22.5
	Tire number	12+1
Fuel Tank	Volume(L)	350
Body Steel Thickness		Bottom 8mm/Side 5mm
Body Lifting System		Hydraulic Front Lift
Front overhang/Rear overhang(mm)		1370/1000
Approach/Departure Angle(°)		24/23
No. of steel spring(front/rear)		9/12
Max. Speed (km/h)		75
