Brvision 7 Inch Digital Mirror Monitor Auto Parts for Backup System

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF, EXW

Payment Terms:L/C, T/T, Paypal

Trademark:BRVISION

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BR-MM7001

Brand:Brvision

Model No.:Br-Mm7001

Function:Identity Recognition, Reversing

Style:Rearview Mirror

Video Resolution:High Definition

Camera:2-Way

Export Markets:North America, South America, Eastern Europe, Western Europe

Screen Size:7"

Additional Info.

Trademark:BRVISION

Packing:Custormize Package

Standard:FCC, CE, RoHS

Origin:Shenzhen(Guangdong)

HS Code:852829

Production Capacity:2000/Week

Product Description

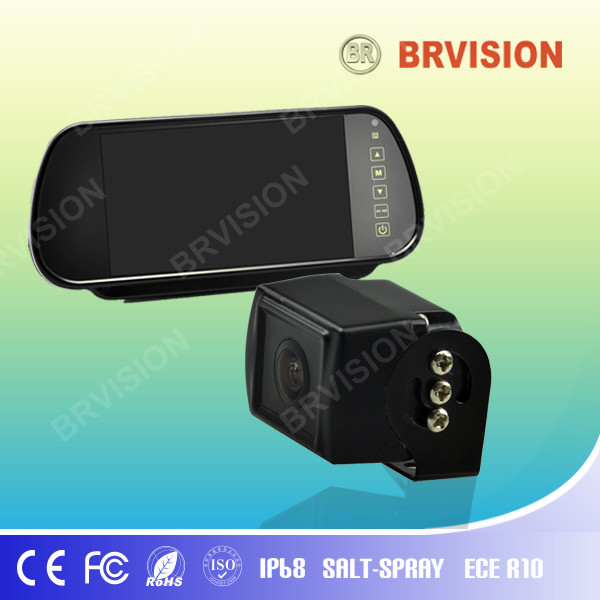

Brvision 7 Inch Digital Mirror Monitor auto parts for Backup System

7"anti glare high reflective ultra digital rear-view mirror display (Model BR-MM7001)
SD Menu Function Separately Set Each Camera Mirror/Normal image , Reversing Image Delay Time ,Trigger priority
Video Inputs 2 CH Video
Display Resolution 800RGB(H) X 480(V) dot
Color System PAL/NTSC (AUTO)
Brightness (cd/m2): 400
Contrast ratio 500:1
Load Dump DC14+87V(Td400mS) 5pulses
Operating temperature -20ºC to +70ºC
Storage temperature -30ºC to +80ºC
Operating Voltage DC11-32V
External dimensions (L x W x T) (249.5 x 108 x 39mm)
Weight Approx: 400g
Aluminum Shell Waterproof IR Color Camera(MODEL:DF-8059)
Image Type: 1/3 inch Color CCD
Horizontal Resolution:700TV Lines
Effective pixel:NTSC:976(H)×494(V) PAL:976(H)x582(V)
Usable Illumination : 0Lux ( Built in 10pcs IR for Picture Support in the Dark)
Free viewing angle: 130°
Waterproof: IP69K
Shockproof: 10G
Video Output:1.0Vp-p75?
Power supply:DC12V from Reversing Monitor
Dimensions: 55(L) x 63(W) x 74(H)mm
Product Accessories
An instruction manual,Electrical Connecting Cable 15m , Auto cigarette lighter

Aluminum Shell Backup Waterproof Camera

Image Type: 1/3 Inch Color CCD

Horizontal Resolution:720TV Lines

NTSC:976(H)×494(V) PAL:976(H)x582(V)

Usable Illumination : 0Lux ( Built in 10 IR LED's for Picture Support in the Dark)

Free viewing angle: 130°

Waterproof: 100% Waterproof IP69K Rating

Shockproof: 10G

Video Output:1.0Vp-p75?

Operating temperature: -40ºC to +70ºC (Automatic heating when the camera's running temperature is below 10ºC optional)

Power supply:DC12V (from Reversing Monitor)

Dimensions: 75(W) x 43(H) x 38(D) mm (without mounting)

Weight Approx: 179g
