Product Description
We provide all kinds of special purpose vehicle, such as construction vehicle, tank truck, van semi-trailer, and etc. Our Brand-new (Arm type) Bridge inspection truck 16m(230HP) are widely used in all kinds of situation. Our Brand-new (Arm type) Bridge inspection truck 16m(230HP) can make your work much smoother and safer. We have professional design team with more than 20years' experience of special purpose vehicle. We have all kinds of special purpose vehicle fit all work situation for you. Also we accept custom design for our customers.
Purpose
HZZ5240JQJ16 bridge detection operations vehicle is the new-brand self-made specific vehicle for the bridge detection, with a beautiful appearance, compact, easy to use, safe and reliable, and other characteristics.
Dongfeng chassis is used, parts of hydraulic parts are imported from abroad.The specific vehicle used exclusively a telescopic, rotating the secondary and tertiary institutions change, formed a three-dimensional space. The staff and equipment will be safely and quickly sent to under the bridge anywhere which is allowed by the arm length of vehicle with the space movement systems of six freedom degree.
Operate
The traditional way of thinking is broken in the process of product design, we set up the unique driver hydraulic outrigger bracket, increased lateral stability.The operator can be more secure conditions.
The pressure of the crawler hydraulic outrigger is small, will not cause damage on the ground. The operators under the bridge platform can control directly the crawler rotation, can work while walking.
Additional Advantage
The cab of the vehicle is equipped with control panel screen, can be check the operating conditions for three-dimensional monitoring.The vehicle also is equipped with emergency power source, in special cases can be operated without the vehicle driving force for independent operation.
Technical Parameters Of 16m (Arm type) Bridge Inspection Truck
Type | HZZ5240JQJ16 |
Name | operating vehicle for bridge detection |
Chassis type | ISDe23030 |
Driver type | 6×4 |
Total mass | 24000Kg |
Outer dimension (mm) | 11240×2500×3930 |
Engine capacity | 6700, 8300 |
Engine | 230, 245, 260, 270HP |
Total operating range under bridge | 16m |
Vertical operating range under bridge | 23m |
The main arm across the width | 3-5.4m |
The first scope of rotation | 0-90° |
The second scope of rotation | 0-135° |
Rated load platform | 200KG |
Hydraulic system | The proportion of electro-hydraulic servo systems |
Control system |
Manual control mode | Cable control mode | Wireless control mode |
|
|
|
|

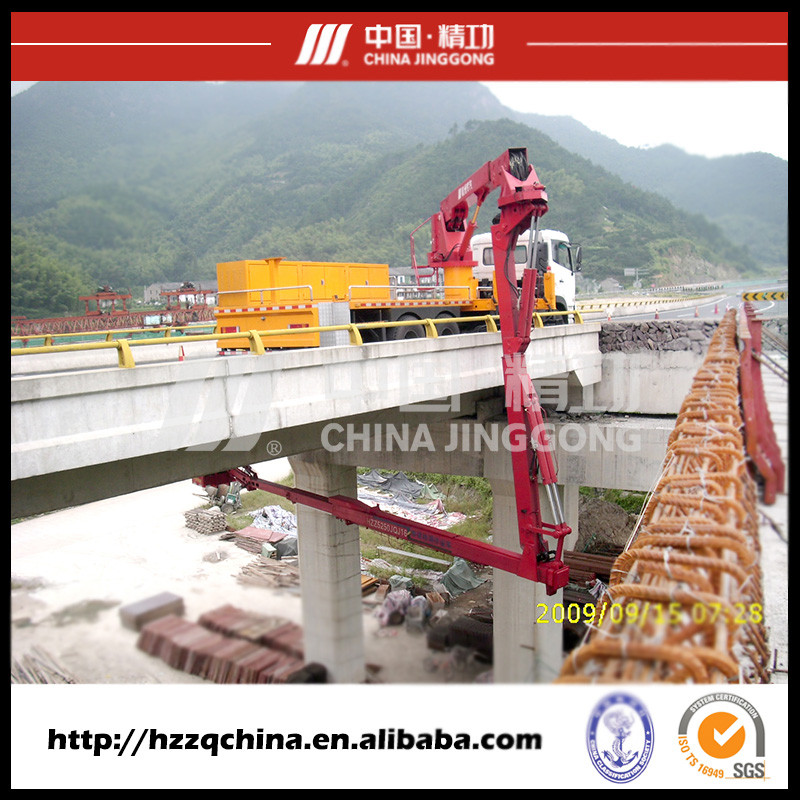

Photos For Bridge inspection truck
Packaging & Shipping
Our service team can arrange shipment for you, to keep sure you can get our products on schedule. We will make sure all the vehicle safe in delivery.
Quality Control
A quality control team with more than 20 years' experience has been set up in Hangzhou Special Automobile. All the members in this team have more than 20 years' experience in the quality control of special purpose vehicle. Each step in the manufacturing process has been strictly monitored to guarantee the products' high quality. No matter what are your interested items, they will be in the same outstanding quality.
Company Information
We are a professional manufacturer with more than 20years' experience of special purpose vehicle. Our main products is included construction vehicle, tank truck, van semi-trailer, and etc. We have a production base covers an area over 60000 square meters. We have professional QC team with rich experience of special purpose vehicle. Each step in the manufacturing process has been strictly monitored to guarantee the products' high quality. We also have established a R&D team with abundant experience in designing reliable and high quality special purpose vehicle. We can provide the best products to our customers around the globe.
