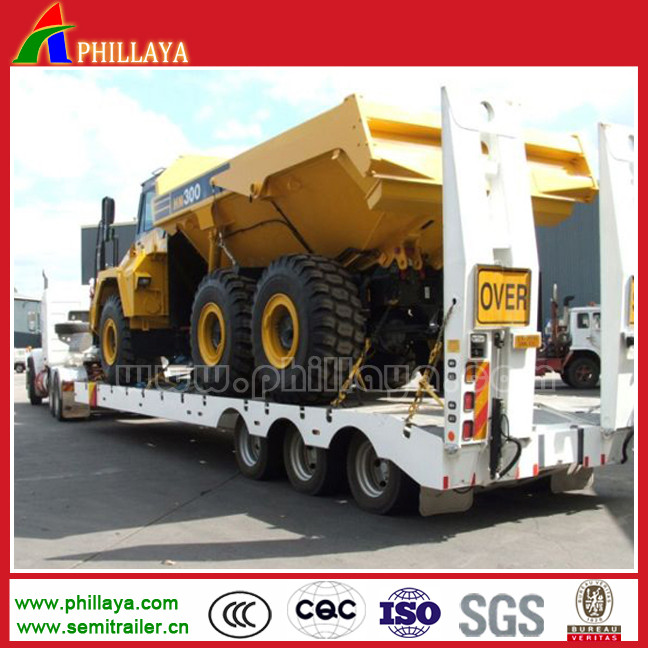

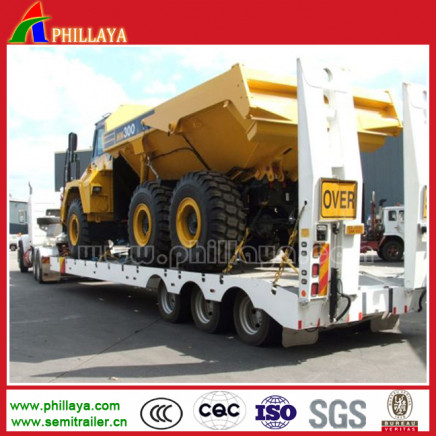

BPW Axles Installed Three Axles Low Deck Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 14000.0-16000.0/ Piece

Price:$14000.0 - $16000.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Money Gram, Western Union

Price Valid Time:From Jun 29, 2015 To Dec 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:PLY9825CY

Type:Semi Trailer

Load Capacity:80T

Certification:GCC, ISO9001, CCC, ISO/TS16949, SGS

Wheel Base:8000-9000mm

Tread:1820mm

Grade:Heavy Duty

Towing Pin Material:Carbon Steel

Impeller Type:Front Semi-open Type

Hook Type:Double

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Anti-slip Type

Independent Suspension Type:Cross Arm Type

Connecting Type:Semi-trailer

Shape:Lowbed

Axle Number:3

Tire Number:12

Self-dumping:Not Self-dumping

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Steel

Condition:New

Color:by Clients? Needs

Paint:Anti-Rust

Logo:by Clients? Needs

Custom-Made:Available

Quality Standards:CCC ISO BV SGS

Place of Oringin:Qingdao Shandong

Trade Mark:Phillaya

Lead Time:15 Working Days

Guarantee Term:1 Year, Mainbeam Lifetime Promise

Production Ability:150 Units Per Month

Export Markets:Global

Additional Info.

Trademark:Phillaya

Packing:Containers, Bulk Ship, Road

Standard:CCC ISO

Origin:Shandong, China

HS Code:871639900

Production Capacity:150units Per Month

Product Description

1. Advantage
Axle could be FUWA or BPW together with German suspension;
Air suspension could be optional;
Tyre could be twin tyres type or single tyre like 425/65R22.5;
Rear heavy duty ladder to load the heavy machines;
MOQ = 1 unit.

2. Specifications

Tare Weight	About 8.5-13T
Dimension	13000×3000×1650mm (adjustable)
Loading Capacity	40T-100T
Axle	13 T/16T, FUWA /BPW Brand
Rim	6.5-20/7.5-20/8.00-20
Tire	8.25R20/10.00R20/11.00R20
Suspension	Mechanical suspension(Germany Type or America Type) Or Air suspension(China brand or BPW brand)
Spring leaf	90(Width)mm×13(Thickness)mm×10(Layer) or 100×12×12mm
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height:450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm;Material is Q345 Carbon Steel.
Side beam	16mm-25mm channel steel(Material is Q235 carbon steel)
Ladder	Manual or Hydraulic type
Gooseneck	For your choice
Brake chamber	WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber(TKL brand);Two pieces of 45L air tanks
ABS	Optional
Twist Locks	Four, Eight or Twelve pieces(Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways(7 wire harness)
Tool box	One piece
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints.

3. Functions
    This series lowbed semi trailers are mainly used in heavy duty transportation for construction or logistic companies, such as excavator, digger, mover, crane, and building materials.
    The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
    The suspensions can be:Air suspension, mechanic (leaf spring suspension), bogie suspension, etc
    The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.
    The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs.

4. Shipping terms
A. By bulk cargo ship;
B. By ro-ro ship.

5. Service
1). 3C&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise.
2). Small Order Can Be Accepted.
3). Any Color & Logo Available
4). The Product Dimension + Specifications Can Be Designed As Your Needs

Welcome to visit our factory, my friend. And we will pick you up at the station or airport. After everything confirmed, our win-win cooperation will be started.
