Bosch Auto Alternator (0120469744, 0120469745 12V 100A FOR MERCEDES)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:20 Pieces

Trade Terms:FOB

Payment Terms:T/T

Trademark:Trans-Sen

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:TA13243BO 0120469811 1-1283-35BO 0120469744

Type:Alternator

Structure:Magneto Alternator

Current Level:8(80?89A)

Bonding Type of Magnetic Field Winding:Inner Bonding

Brushless Alternator Type:Permanent Magnet Type

Voltage Adjuster Type:Electronical

Voltage:12V

Head Cover Position:Front

Brand:Bosch

Peremeter:12V 80A IR/Ef Cw S6

Export Markets:Global

Additional Info.

Trademark:Trans-Sen

Packing:Carton & Pallet

Origin:Shanghai

HS Code:85115090

Production Capacity:20000 Per Year

Product Description

TYPE Alternator
MFR BOSCH
DESIGN IR/EF
VOLTAGE 12
AMPERAGE 80
ROTATION CW
PULLEY DESIGN S6
PULLEY OD50
PLUG CLOCK7
PLUG CODE381

COMPANY NO	TA13243BO
LESTER	13243
PIC	220-204
AC DELCO	334-1918
ANDRE NIERMANN	2469744
BBB	13243
BBB NEW	13243
BECK ARNLEY	186-0464
BOSCH	0-120-469-744
BOSCH	0-120-469-745
BOSCH	0-120-469-746
BOSCH	0-120-469-894
BOSCH	0-120-469-946
BOSCH	0-120-469-947
BOSCH	0-120-469-948
CARGO	112734
DELCO REMAN	10464329
DIXIE	A-6169
EXCEL	10219
LETRIKA (ISKRA) AFTERMARKET	IA 9403
LUCAS ELECTRICAL EUROPE	LRA00723
MERCEDES BENZ	007-154-67-02
MERCEDES BENZ	007-154-68-02
MERCEDES BENZ	008-154-76-02
MINNPAR	47-2898
MPA	15641
NAPA POWER PREMIUM PLUS	213-9398
NAPA POWER SUPREME	13-9398
USA INDUSTRIES	A1442
WAI	1-1283-35BO
WILSON	90-15-6194
WILSON NEW	90-15-6194
WOOD AUTO	ALT10231
WORLDWIDE	14933

DESCRIPTION:

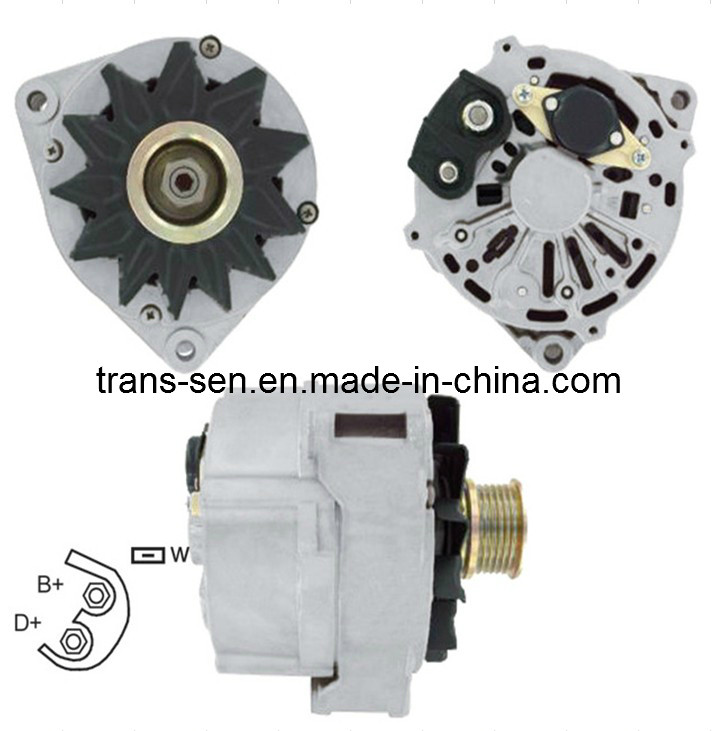

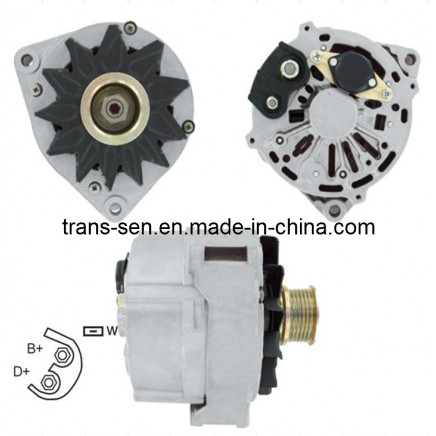

This Unit Appears to Be the Same as the 14783 and the 13367 in All Ways Except Possibly the Clock Position of the Battery Stud / D+ Terminal. This Unit Has the Battery Stud at 7:00 When the Mounting Ears are at 6:00 and 2:00. The Pulley Used Here is a 6-Groove Serpentine With a Neck Between the Fan and the First Groove.

APPLICATION:
MERCEDES 1987-91
6-GROOVE PULLEY 49mm OD
