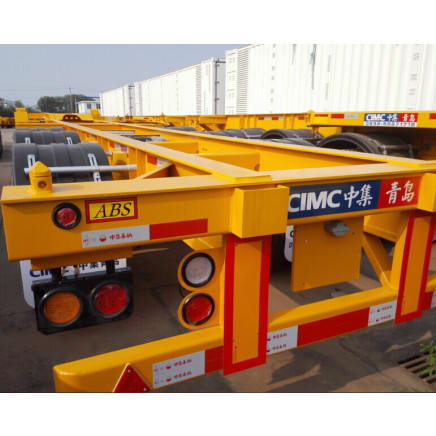

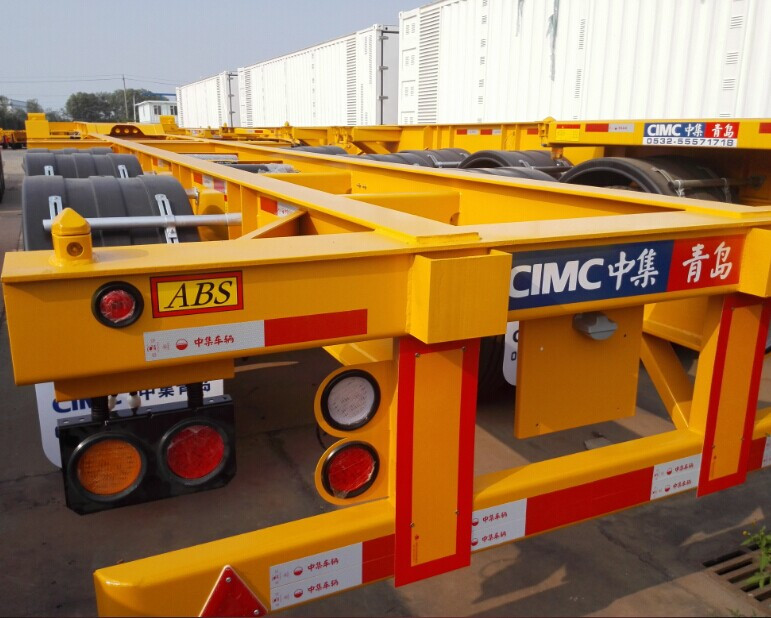

Bone Container Semi-Trailer

More Views

More than 10 available

Availability: In stock

Min. Order (unit)	Unit Price
1.0	US $ 12000.0-13000.0/

Price:$12000.0 - $13000.0 / unit

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Oct 24, 2014 To Jan 24, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Login or Signup to View Links.

Description

Type:Semi-Trailer

Loading Weight:60t

Certification:SGS, ISO/TS16949, CCC, ISO

Grade:Heavy Duty

Tire Number:12

Color:Yellow

Axle Number:3

ABS:With ABS

Tire Size:11.00r20

Condition:New

Scale:Heavy Duty

Load Capacity:60t

Axle:Fuwa 13t

Twist Lock:12 Units

Export Markets:Global

Trademark:Lufeng, CIMC

Packing:Nude Packing

Standard:SGS, BV, ISO

Origin:China

Production Capacity:3000 Units Per Month

Customerized container semi-trailer

Dimension(mm)	LWH: 12500X2500X1800(mm)
Axle space(mm)	7950mm+1301mm
Tare weight(kg)	8400kgs
Payload (kg)	40000kgs
G.V.W.R.	58500kgs
Landing gear	Linkage type, two speed with sand shoe
Kingpin	2"(50#)Welded type
Suspension	Strengthened spring suspension
Axle	FUWA axle, 13 ton capacity/set,3pcs
Tire	11.00R20 Radial tyre , 8Pcs,
Rim	8.5-20 ,8 Pcs
Twist lock	12 units Option: 8units -USD300
Tool box	1 unit
Spare tire carrier	2 units
Main beam	500,14/6/16
Side beam	16# channel steel ,160mm height
Floor	3mm checked plate
Lights, electrical, accesories	yes, 24 volts,
