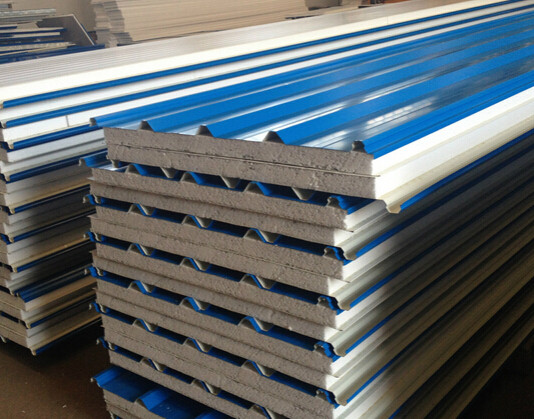

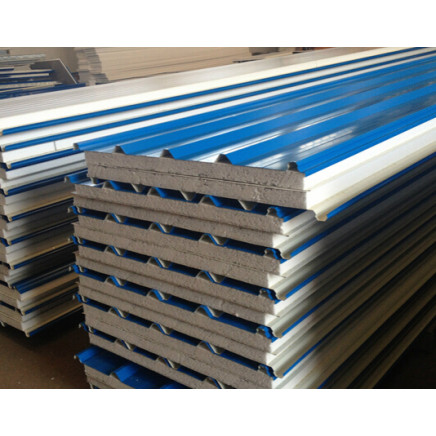

Blue Color Painted V950 PU Sandwich Panel for Cold Room House

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$4.5 - $35.8 / Meter

Min. Order (Meter)	Unit Price
1000.0	US $ 4.5-35.8/ Meter

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Sep 22, 2014 To Dec 31, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Description

Details

Basic Info.

Model NO.:V950

Refractoriness:200-450°C

Material:PU

Diameter:50-200

Surface Treatment:Prepainted

Usage:Interior Tiles

Apparent Density:35~38kg/mł

Color:Blue

Lenght:<=11.8m

Thickness:50mm-150mm

Export Markets:Global

Additional Info.

Trademark:SXGG

Packing:PVC Film

Standard:SGS, CE

Origin:China

Production Capacity:100, 000 Sqm/Month

Product Description

Description:

Waterproof and fireproof
Easy to install
Low thermal conductivity
GB, SGS
Color coated steel surface
Application: Roof plate of high-end building, wall plate of high-end buildings, cold storage plate for warehouse and buildings, curtain wall, exterior wall insulation board

PU sandwich panel,
1. Competitive price, MOQ: 50m2
2. Professional manufacturer, assured quality
3. ISO9001: 2008
4.100mm, 150

PU sandwich panel and cold storage PU sandwich panel is using colour coating steel sheet as surface finishing and polyurethane (PU) as core material.

This product with quick installation and good insulation which is applied widely in: Cold store, ceiling, temporary
House, dormitories, warehouse, workshop and etc.

Specifications:
1. Outer materails specification,
1) Two sides: Carbon steel sheet, color steel sheet, stainless steel sheet for customers' option
2) Thickness(mm): 0.4, 0.42, 0.45, 0.5, 0.7, 1.0
3) Color: According to customer requirement
4) Width: 980mm, 1180mm
5) Length: According to customer requirement, the max length is 10000mm.

2. Sandwich Layer: Polyurethane(PU)
Density: 38-40(kg/m3), 40-42(kg/m3), 42-45(kg/m3).
Thickness(mm): 75, 100, 120, 150, 200mm.
3. Fireproof: According to customer requirement.

Cleanroom PU Sandwich Panel
Type	V950
Dimensions	Total thickness	50-150mm
	Width	950mm
	Length	Less than 11.8m
External face	Material	PPGI
	Thickness	0.4-0.8mm
	Thickness of the zinc	60-80g/mł
	Corrosion protection	Galvanized
	Coating	Prepainted
	Thickness of coating	20 micron
	Color	Gray white / according to the RAL / as customer's requirements
	Pattern	Nearly plain
Insulation	Optional foam Material	EPS PU Rockwool Paper honeycomb
	Thickness	50-150mm
	Density	EPS 8~25KG/M3; PU 38-45KG/M3; ROCKWOOL>110KG/M3;
	Thermal conductivity	0.045w/m2k 0.021w/m2k 0.0034w/m2k
Internal face	Material	PPGI
	thickness	0.4-0.8mm
	Thickness of zinc	60-80g/mł
