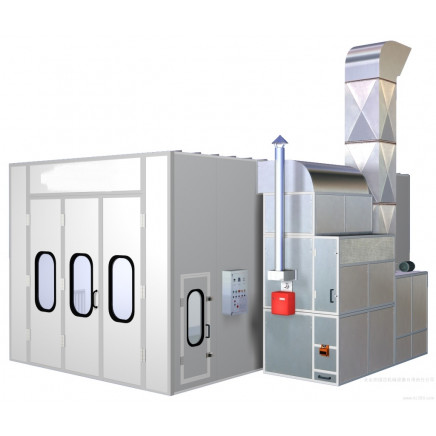

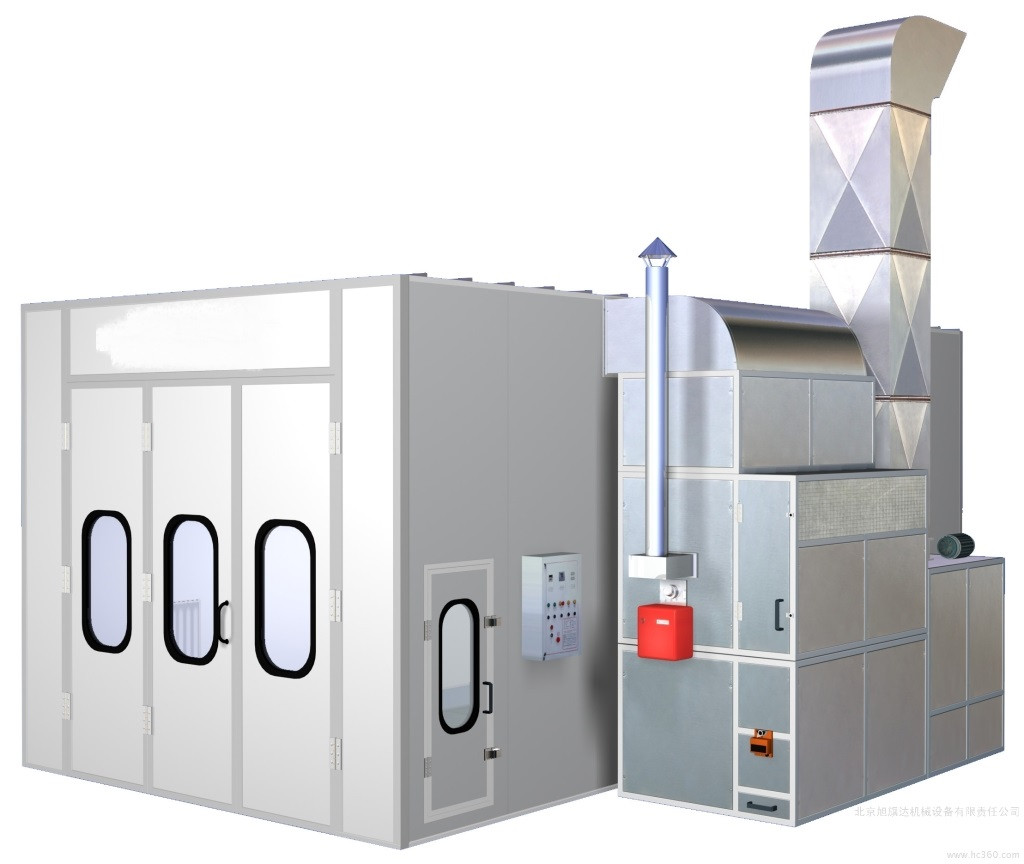

Big Space Coating Equipment, Spray Booth

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
1.0	US $ 25600/ Set

Price:US $25600.0 / Set

Trade Terms: FOB, CFR, CIF, DAT, CIP, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Aug 06, 2015 To Sep 27, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CPYE15 001

Type:Electrostatic Spraying Equipment

Application:Hardware Spraying Equipment, Wood Spraying Equipment, Plastic Spraying Equipment, Porcelain Spraying Equipment

Coating:Paint

Certification:CE, ISO, SGS

Method Type:Manual

Condition:New

Internal Size:23000X5000X5000mm

External Size:23144X6896X5600mm

Steel Wall:75mm EPS Panel with 0.5mm Steel

Main Door:4-Folded Entrance Door with Safety Glass Window

Operator's Door:2units, 800X2000 mm

Ceiling Lights:26units, Each 4X36 W

Side Lights:32units, Each 4X36W

Intake Air System:6X7.5kw Double-Intake Centrifugal Fans

Exhaust Air System:3X11kw Double-Intake Centrifugal Fans

Heating Type:Riello Rg5s

Export Markets:Global

Additional Info.

Trademark:OEM/Captain

Packing:Export Container /Pallet /Disassembly with Carton

Standard:CE, SGS

Origin:China, Shandong

Production Capacity:60sets/Month

Product Description

Detailed Product Description

23M Full Grid Industrial Spray Booths With Double Intake Centrifugal Fans

Advantage
1.CE ISO certificate
2.factory,have our own brand name "Xin Guang Li" and "Qiangxin"
3.infrared heating system
4.4 air supply fans,2 axial fans
5.environmental.energy saving,cost saving
6.customize
7.pre-sales service & after sale service
8.booths received good comments from customers,so far we had sold to Germany,Norway,Nigeria,Egypt,
Saudi Arabia,Ethiopia,Qatar,Libya,Namibia,Cameroon,Angola,Tanzania,Seychelles,Philippine,Malaysia,Singapore,
Australia,Russian Federation etc...

We are professional leading factory in China.
Specializing in manufacture kinds of paint spray room system.
And also offering full garage equipments,car care equipment.

Car spray&baking room system

Bus spray&baking room system

Furnitue spray&baking room system

Industrial painting&baking room system

High temperature baking room system

Customized spray&bake booth.Offer car spray baking booth accossories

Booth Dimension
- Internal Size(L�B�H)	23000�5000�5000mm & 75'4''X16'4''X16'4''
- External Size(L�B�H)	23144�6896�5600mm & 75'9''X22'6''X18'4''
Foundation and Floor
- Grid	23M full grid ( 2 rows air exhust plenum chamber)
- Metal Basement	Need to build the base construction , 2 rows of pits in the ground for exhaust air, dimension of each pit is 20700�760mm(L�W), with galvanized grids made by twisted steel and flat bar above
Wall and Door
- Steel Wall	Profiled bar beams in the roof to strengthen the room body Double construction with insulations EPS , thickness 70mm, width:1150mm, tongue and groove interlock structure
- 4-Folded Entrance Door With Safety Glass Window	1 Unit, 4000�4500mm(WxH) galvanized steel cover frame, with polystyrene(EPS) inside
- Operator�s Door With Safety Glass Window	2Units, 800�2000 mm(W�H) ( 2 service door all at the left side )
Lighting System
- Ceiling Lights	26Units, each 4�36 W, with electronic ballasts
- Side Lights	32Units, each 4�36W, with electronic ballasts
Filter System
- Filter	Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter
- Filtering area	96M2
Ventilation System
- Intake air system (Fresh Air)	6�7.5KW double-intake centrifugal fans for intake air, model YDW4.5M, total air capacity: 126000m3/h
- Exhaust air system(Exhaust Air)	3�11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, model TAE-710H, total air capacity: 108000m3/h
- Damper actuates	Pneumatic damper actuates from spraying to baking cycle, manual dampers for exhaust air
Heating System
- Heating Exchange	Stainless Steel
- Heating Exchange Capacity	260000Kcal/h
- Max. Drying Temperature	80 �C
- Heating time	8-15 min (from 20 to 60) by Drying Phase
- Heating Type (optional)	RIELLO RG5S (260000 kcal/h)Diesel )3set
Control Box
- Control system	Spraying, heat spraying, baking, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hours meter, temperature limit controller, pressure gauge. exhaust reduction voltage motor start
- Total power	98KW
