Big Size Steel Hex Bolt

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1000.0	US $ 1.4/ Piece

Price:US $1.4 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Mar 09, 2015 To Jun 09, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:lkqa

Material:Stainless Steel, Alloy Steel, Steel, Brass

Type:Hexagon Head

Connection:Common Bolt

Head Style:Hexagonal

Standard:DIN, ANSI, GB, JIS

Grade:Class 10.9, 12.9, 14.9

Application:Building

Finish:Plain, Zinc, HDG...

Market:Global

Sample:Free (If in Store)

Export Markets:Global

Additional Info.

Trademark:LK

Packing:Bulk Packing

Standard:DIN, ANSI, ISO, JIS and Non-Standard

Origin:China

HS Code:7318

Production Capacity:500 Ton/Month

Product Description

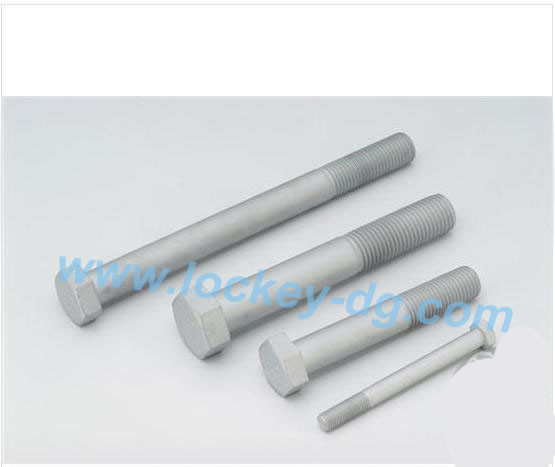

Big Size Steel Hex Bolt
1> Decription: Big Size Steel Hex Bolt
2> Material: Stainless Steel, Alloy Steel, Steel, Brass
3> Surface: Zinc plated, Hot DIP Galvanized in chromium and RoHS,
4> Size: M27( 1")upto M86
5> Length: Up to 1000mm
6>mechanical properties: Class 10.9, 12.9, 14.9
7> Packing: Bulk packing and according to customer's requested then in pallet.

The big size bolt main used in the wind power, hoisting, spaceflight,
Watercraft, bridge etc.

We are looking forward to hear from you if you are interesting in our products.

Technical Delivery Conditions
Material		Steel	Stainless steel		Non-ferrous metal
General requirements		As specified in DIN 267 part 1
Thread	Tolerance	6g
	Standard	DIN13 Part 12 & 15
Mechanical properties	Property class	5.6 8.8 10.9	?M20	A2-70	Subject to agreement
				A4-70
			>M20	A2-50
				A4-50
				C3,C4
	Standard	ISO 898 Part 1	DIN267 Part 11		DIN267 Part 18
Limit deviations geometrical tolerance	Product grade	A for product up to size M24 and L?10d or 150mm B for product exceeding size M24 or L>10d or 150mm

	Standard	ISO 4759 Part 1
Surface finish		As processed Property class 8.8 and above: Blackened	Bright		Bright




		DIN267 Part 2 shall apply with regard to surface roughness
		DIN267 Part 19 shall apply with regard to permissible surface discontinuities
		DIN267 Part 9 shall apply with regard to electropiating
		DIN267 Part 10 shall apply with regard to hot dip galvanizing
Acceptance inspection		DIN267 Part 5 shall apply with regard to acceptance inspection
