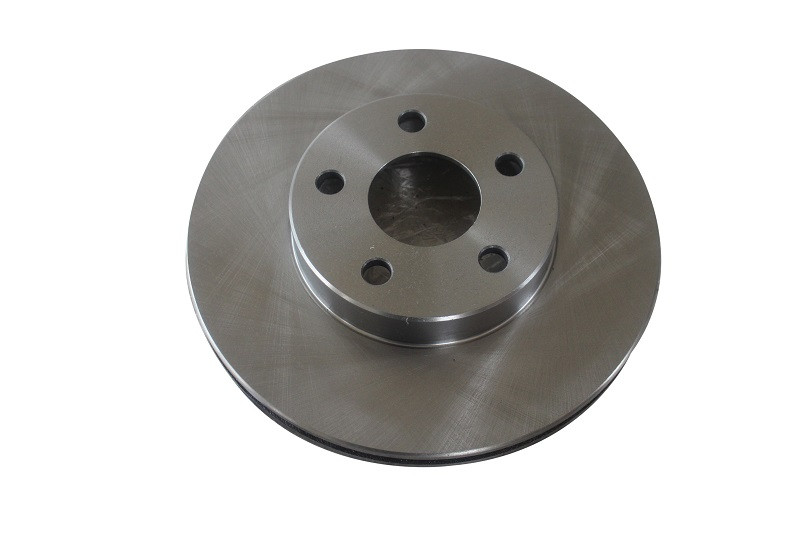

Best Quality G3000 Vented Brake Disc Rotor for Car 5580/18060237

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$8.35 - $45.7 / Piece

Min. Order (Pieces)	Unit Price
100.0	US $ 8.35/ Piece
200.0	US $ 45.7/ Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jul 03, 2015 To Oct 03, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:5580/18060237

Type:Brake Discs

Material:Iron

Position:Front

Certification:ISO/TS16949, TS16949, ISO9001

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Location:Front Axle

Height:48mm

Outer Diameter:259.2 Mm

Pitch Circle Diameter:100mm

Brake Disc Thickness:20.3mm

Minimum Thickness:18.7mm

Number of Holes:5

Solid or Vented:V

Export Markets:Global

Additional Info.

Trademark:luzao

Packing:Neutral Packing or According to The Requirements

Standard:ISO TS

Origin:Shandong Zouping

HS Code:87083099

Production Capacity:400 Tons Per Month

Product Description

Location	Front Axle
Height	48mm
outer diameter	259.2 mm
Pitch Circle Diameter	100mm
Brake Disc Thickness	20.3mm
Minimum Thickness	18.7mm
Number Of Holes	5
Solid Or Vented	V

Matrial	Gray Cast Iron
Place of origin	Shandong, China ( Mainland)
Quality System	ISO/TS 16949 ISO9001
MOQ	100 PCS/item
Package	Neutral box or your need color box
Delivery	20-30 days
Guarantee period	must meet all your requirments

Quality Standard

1. Material Requirements

1.1 Must meet Grade GG20 for gray iron castings.

1.2 Chemical Composition (Percent)

* Total Carbon: 3.0 - 3.50%
* Silicon: 1.90 - 2.30%
* Manganese: 0.60 - 0.90%
* Phosphorus: 0.12% Max.
* Sulfur: 0.10% Max.

1.3 Microstructure:

1.3.1 Graphite Structure-
Predominantly type A, size 3-5.

1.3.2 Matrix
Pearlitic with max. 15 ferrite
Free from chill

1.4 Physical Properties:

1.4.1 Tensile Strength- Min. 200 N/mm

1.4.2 Brinell Hardness- 190 - 230
( 10 mm ball, 3,000 kg load)

Our brake disc is well exported to North America,South America,the Middle East,South Korea,Singapore,Malaysia,United Kingdom,and Denmasrk,and enjoy a very good reputation worldwide.

Now we have more than 2,300 items in total which include almost all typical brakes worldwide,especially some newbrake parts for GM,VW,FIAT,BMW,Peugeot,Opel,Renault,Mercedes,Benz,Hyundai,Daewoo,Kia,and all Janpanese cars.

If you are interested in our product, please contact us,,tel:0086-543-4347957 susan
