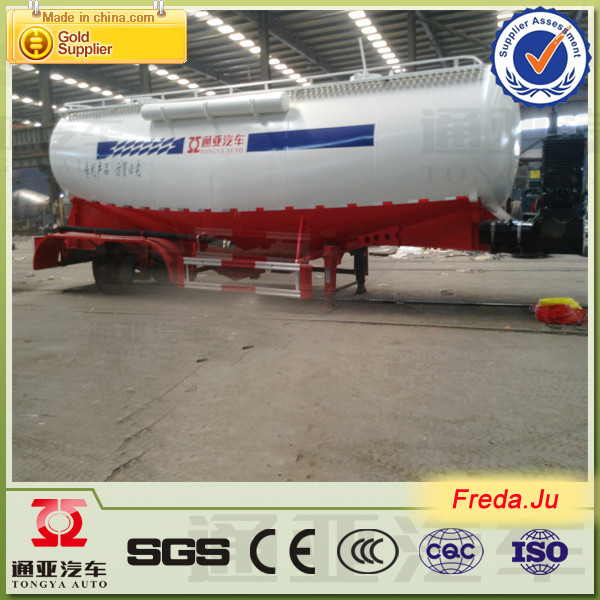

Best Price New Type Bulk Cement Transporters Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 20000/ Piece

Price:US $20000.0 / Piece

Trade Terms: FOB, CFR, CIF, DDP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Dec 11, 2013 To Mar 11, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CTYBF01 bulk cement transporters semi trailer

Name:Bulk Cement Transporters Semi Trailer

Capacity:50 Cubic

Compartment:Three

Axles Number:3

Color:Any Color

Air Compressor:with

Brand:Tongyada

Axles Brand:Fuwa

Material:Steel

Scale:Heavy Duty

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:TONGYADA

Packing:Without Package

Standard:CE

Origin:Shandong Jining

HS Code:871631900

Production Capacity:2000 Pieces/Year

Product Description

Best price new type bulk cement transporters semi trailer

1)Drawing Interpretation of china manufacturers bulk cement transporters tank

Production process

About us

Shandong Liangshan Tongya Automobile Co., Ltd is listed among appointed enterprises to produce and refit automobile approved by Development and Reform Commission of China ( former Economy and Trade Commission of China), the first cooperation enterprise with its products listed in Public Notice on automobile refitting for management. We are the full-size Modified Truck enterprise which integrate the design of product, scientific research developing, production and sale together, Possessing subsidiary companies of Automobile Production, Automobile Trade and Automobile Fittings Production, etc. Our leading products are Tongyada brand semi-trailers, tipper, fuel tanker, liquid bitumen tanker, particle material tanker, bulk cement tanker, concrete mixer truck, wrecker trucks, timber trailers and other special vehicles etc.

Our company covers an area of 730, 000 square meters, total assets 460million RMB. There are 128 persons with senior technical title. We have first class numerical control cutting machine, automatic welding machine, large-size Bending Machine and Board Press machine in china, tanker body automatic welding tipper, the greatest entire-car-passing type shot blasting machine in Shandong Province, 21m length super spray painting and baking varnish room, Switzerland four-wheel ATD-GPS and 400 sets TEST EQUIPMENT which are advanced technology and Hi-Tech equipments. One hundred kinds of truck semi trailers and tanker trailers have passed our National Technical Appraisal and up to top class level in China, We have passed many certificates, such as ISO9001: 2000, CCC etc.

Persisting in "the quality will cast on the brand, the good faith building future" as the enterprise objective, The company staff devote to the promotion enterprise core competitive power, pursuing the sustainable development, the making strong trend brand, in order to serves the all clients.

Welcome you and your friend visit our factory!

	Item		Parameters
Powder Tank	Geometrical volume (m3)		45
	Effective (practical) volume (m3)		45
	Loading Capacity		48 ton
	Tank Materials		Carbon Steel
	Tank material thickness (mm)		5mm or 6mm/ Q235 carbon steel
	Tank front-rear head plate (mm)		5mm or 6mm/ Q235 carbon steel
Trailer	Dimensions	L x H x W ( mm)	12450×2550×3950
		Wheel base (front/rear) (mm)	6390+1310+1310
		Suspension (front/rear) (mm)	/1180
		Approach/away angle (°)	/30
		Loading weight (kg)	48000
		Gross weight (kg)	60000
		Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Semi-trailer Details	Moving brake system		Drum type double air pipe pneumatic brake
	Pneumatic Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
	Suspension type		Spring board balance suspension
	Leaf Spring		90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
	Axle set		Fuwa axle 13Tons
	Number axle		2 or 3 axles, 12T/13T/16T, BPW/FUWA/HUAJING brand
	Number of tire		12
	Tire size		11.00-20
Air Compressor	Model No.		BW-10/2
	Manufacturer		China
	Capacity		10 m³ /min
	Pressure		0.2Mpa
	Axle power		35KW
	Max. rotating speed		950 r/ min
	Continuous operation time		?60 min
	Inhalation temperature		? 40 °C
	Exhaust temperature		? 200 °C
	Noise level		? 88dB(A)
	Tare weight		395 kg
Diesel Engine	Model No.		CTYFJC06
	Manufacture		Diesel Engine
	Engine type		Vertical 4 cylinder, water cooling
	Compression ratio		17:1
	Air cylinder number		4
	Total emissions		3.61/L
	Rotation speed		2000rpm
	Idle speed		550rpm
	Fuel consumption		? 248.8 (g/Kw~h)
	Engine oil consumption		? 2.04 (g/Kw~h)
	Max. torsion		290N~m
	Crank axle direction		Anti-clockwise
	Lubrication type		Pressure and splash combined
	Cooling type		Fore water cooling
	Ignition type		Electrical startup
	Net weight		440 kg
