Best Brand Luxurious Yutong Bus with 52+1 Seats Zk6116D

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

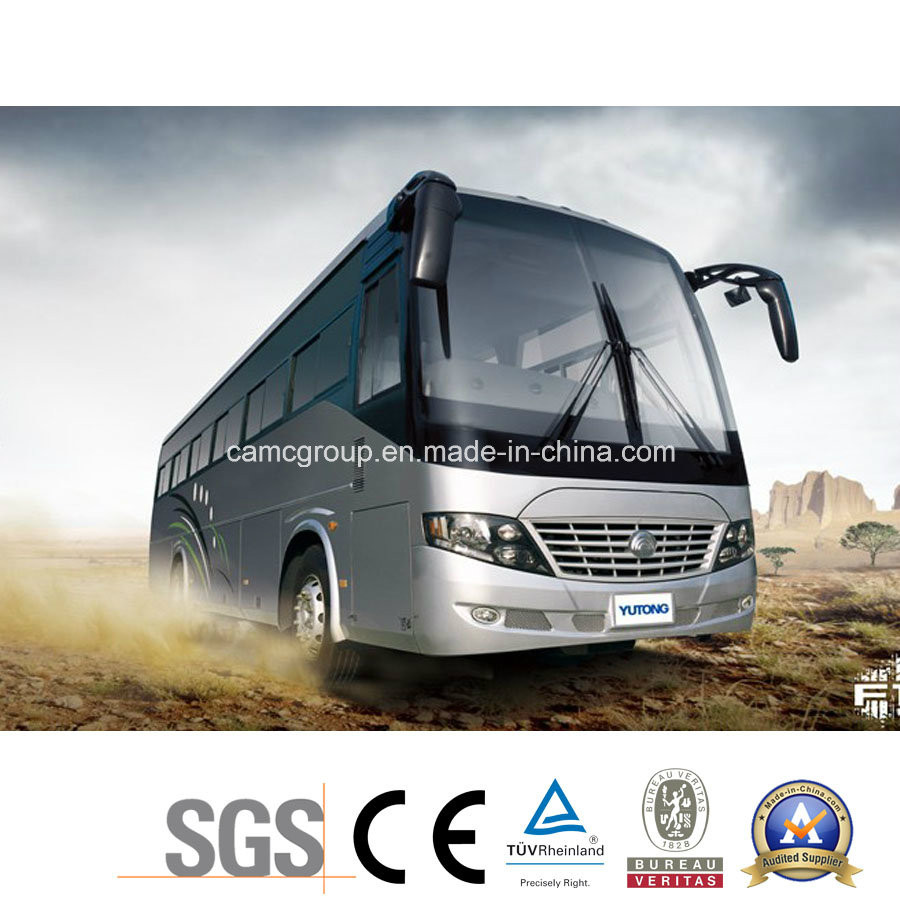

Best Brand Luxurious Yutong Bus with 52+1 Seats Zk6116D

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 59999.0-89999.0/ Piece

Price:$59999.0 - $89999.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Jul 23, 2015 To Sep 11, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZK6116D

Style:Sitting

Emission Standard:Euro 2

Certificate:ISO9001

Transmission Type:Manual

Engine Capacity:>8L

Fuel:Diesel

Seats:>50

Size:Large

Structure:Single-Deck

Condition:New

Engine:Cummins

Drive:Right or Left

Export Markets:Global

Additional Info.

Trademark:YUTONG

Packing:Nude

Standard:SGS

Origin:China

Production Capacity:500, 000 Unit/Year

Product Description

ZK6116D especially design model for Africa market,with quality engine of Cummins,SACHS ZF clutch

Length	11545mm	Engine	Model	CUMMINS L300 20
Width	2500mm		Displacement(L)	8.9(L)
Height	3560mm		Bore×Stroke	114×145(mm)
Inner Height	1925mm		Max. Output	221/2200 (kw/rpm)
Wheelbase	5800mm		Max. Torque	1180/1400 (N.m/rpm)
Tread Front/Rear	1860/1640(mm)		Emission Standard	Euro II
Front /rear Overhang	2265/3480(mm)		Fuel Type	Diesel
Max. Grade Ability	?30(%)		Position	Front mounted
Max. Speed	?110(km/h)		Brake Distance	?10m(v=30km/h full load)
Fuel Tank Capacity	400(L)		Fuel Consumption	?15(L/100km)
Kerb Weight	11500(kg)		Front/Rear Axle	5400/6100(kg)
Max. Total Mass	16000(kg)		Front/Rear Axle	6500/9500(kg)
Specification
Clutch	SACHS GMF430, single dryer, hydraulic air assistant operating
Gearbox	QJ S6-90 gear box, soft axle operating(ZF Technology)
Front Axle	Dongfeng Axle, drum brake, 7000KG
Rear Axle	Dongfeng Axle, drum brake, 11000KG
Suspension System	Front 10 rear 11 leaf spring(strengthened suspension system), interacting hydraulic, shock absorber
ABS/ASR	WABCO ABS, Automatic adjusting arm
Steering System	Integral power steering
Brake System	Dual-circuit pneumatic brake, drum brake, WABCO air drier
Retarder	Retarder
Tire	295/80R 22.5 tubeless tire, 6+1
Body Structure	Semi-integral steel shape body
Interior Trimming	Integral wind channel, light grey interior trimming
Luggage Rack	Integral luggage rack
Floor	Bamboo floor with light grey floor leather
Door and Pump	Pneumatic swing passenger door, remote control of the door, The balancingrod of passenger inside the door
Windows	Front screen divided into two pieces; Slide driver's window; Upper fixed low slide side window
Luggage Compartment	Luggage compartment
Seat	52+1 seats, all safety belts Option: 63+1 seats, 2+3 seat arrangement
Defroster	High-low natural wind defroster
Rear View	Manual operated rear view mirror, inner rear view mirror
Sun Visor	Sun visor
Curtain	Curtain for side windows
Safe Guard	Safeguard for passengers
Ventilator	2 ventilators
Extinguisher	2 KG extinguisher, 2 fire extinguisher bombs for the engine compartment
Safety Hammer	4 safety hammers
Visual System	MP 3 player( VDO), 4 loud-speaker, 1 micro-phone
Lamp	Integral head lamp , inner roof lamp, height lamp, braking lamp
Wiper	Wiper
Electric System	A pair of 6-QA-150Ah/28V,140A generator
Starter	24V electromagnetic type
Others	Chinese paint(Electrophoresis Coating for the whole chassis and bus body) Flee guard air filter, hook(for maintenance use) , 12T jack , maintenance hook

Details Show:

Safety Test:

Factory Guiding:

What are CAMC GROUP advantages:
I Variours High qualityBus,parts,maintains one station service as a package for very good price,Save your time,and Save your cost;
I World A class quality with a heavy impact testing;
I Hundreds of pattern type for your choice;
I Production data follow your requests;
I Give you a availeble suggestions follow your usage;
I Fashion type design;
I The tools bring you profits;
I Over 40 years experience;
Questions before decision:

Q: Can i get any discount?
A: Yes, there are 3 ways:
1: Order over 15 units;
2: Place order with our trailer and other goods;
3:100% TT advanced payment.

Q: Is inspection need after final production?
A: No, CAMC GROUP has a professional internal QC team to control the quality within and after final production. The buyer's inspection is also allowed.

Q:How long I can get the goods after confirm order?
A: We need 7-30days for production;If you could arrange 100%TT, we will booking ship advanced,you dont need to wasting time for waiting delivery.

Q: What is your guarantee?
A: 1 year or 12000km;

Q: What should i do if claims appears?
A: When the claims appear, what we need are the pictures of products, use condition brief, the order information. CAMC GROUP will analysize the problem, even field investigation, and work out an final option with customers.
