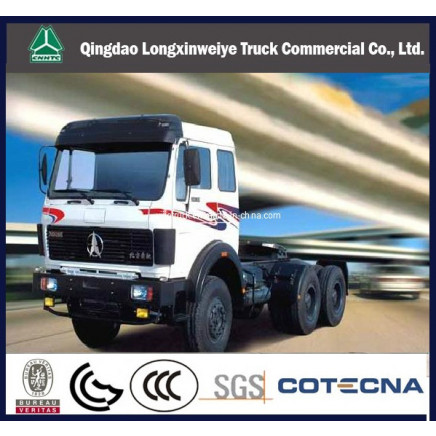

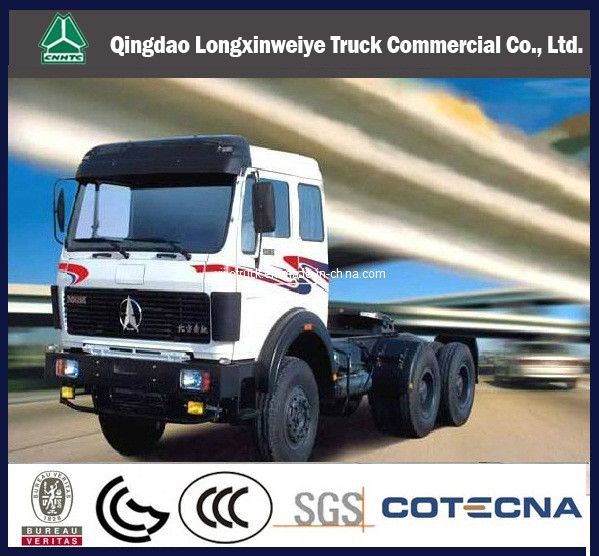

Beiben V3 6X4 Container Tractor Truck
Qingdao Longxinweiye Truck Commercial Co., Ltd is the distributor of heavy duty trucks and Equipment. We are a group corporation that combines industry and trade. Our products involve dump trucks, dump trailers, concrete mixers, semi-trailers and hauling trucks.
Our main products are:
1. Sinotruk series dump truck, tractor, HOWO concrete mixer, HOWO parts, water tank, semi-trailers, etc.
2. Shacman D'LONG dumpers, D'LONG tractors, D'LONG cargo, D'LONG mixer, D'LONG truck parts, etc.
3. XCMG truck cranes, XCMG wheel loaders and spare parts.
4. North Benz trucks
We markets products in more than 50 countries and districts all over the world, including Russia, Iran, Indonesia, Vietnam, Saudi Arabia, Algeria, Sudan, Angora, Turkey, Brazil, Peru, and Cuba.
We believe that our warm and professional service will bring you pleasant surprises as well as fortune.
Cooperate with us, You can get harmonious service like family.
Engine
| Beiben V3 6X4 Container Transportatin Tractor Truck
WEICHAI WP10.380E32
Engine model:WP10.380 EuroIII(EGR)
water-cooled, four-stoke, exhaust brake, direct injection, turcharged inter cooled
Maximum output: 380hp(280Kw) at 2200 rpm
Maximum torque: 1600
Displacement:9.726L
Bore:126mm
Stroke:130mm
Min loading BSFC(with max torque):<181
Starting temperature :_15°C
Starting temperature with assistant device :-40°C |
Clutch |
GFX420 |
Transmission
|
12JS200TA |
Front axle |
VL4/15D-7.5,Double-shoe pneumatic brake,non driving steering axle |
Rear axles
|
HD7/015DS-13,Double pneumatic brake,ductile casting casing,with hub redactor,
double reduction driving axle |
Steering |
TAS85 |
Braking system
|
Running brake:Dual circuiting compressed air brake
Auxiliary brake:Engine exhaust brake(WEVB)
Parking brake:Rear wheel power spring brake |
Wheel &types |
Rims:8.5-20,10 hole-steel
Tyres:11.00-20 |
Cab
|
Long cab with single sleeper,full steel skeleton structure,coverd
with double layer steel plate,can be tipped forwardly |
Electric system
|
Operation voltage :24V,native ground
Starter :24V,7.5kw
Alternator :3-phase ,28V,1500w
Batteries :2*12V,165Ah
Cigar lighter ,horn,headlamps fog lights,indicators and reverse light
Options :180Ah batteries |
Dimensions in mm
|
Wheel base : 3200+1350
Front wheel track : 1995/1800
Rear wheel track : 1800
Front overhang : 1410
Rear overhang : 800
Approach angle : 26
Departure angle : 50
Overall length : 6800
Overall width : 2495
Overall height : 3260 |
Fifth wheel |
Type:2''single direction(optional 3.5'')
Height of fifth wheel(mm):1410
Front fifth radius(mm):2200
Rear tractor clearance radius(mm):1700 |
Weight in kg
|
Dead weight : 8800
Rated loading capacity at fifth wheel: 16070
Front axles loading capacity : 7000
Rear axles loading capacity : 2×13000 |
Performance
|
Maximum driving speed : (km/h) 90 |
