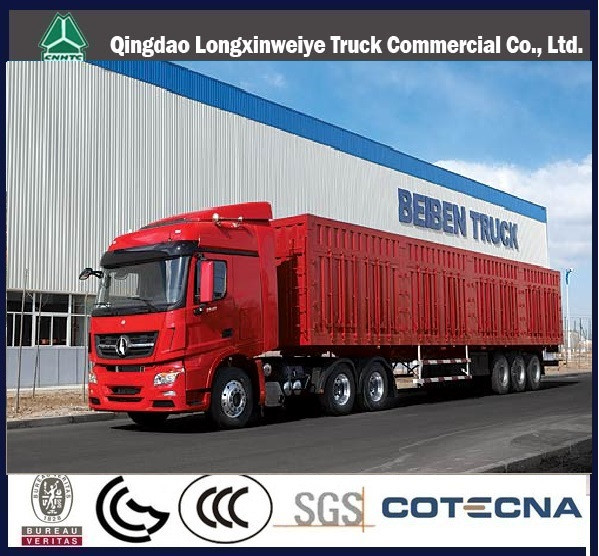

Beiben Truck V3 Weichai Engin 6X4 Tractor Head

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB

Payment Terms:L/C, T/T

Trademark:Beiben

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:Beiben V3

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 3

Drive Wheel:4WD

Seats:?5

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Type:Tractor Truck

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:Beiben

Packing:Nude Packages

Standard:Euro 2 or 3

Origin:Baotou, China

Production Capacity:3000sets/Month

Product Description

Beiben Truck V3 Weichai Engin 6x4 Tractor Head

Engine: WEICHAI
Driving type: 6X4
Standard:Euro III

STEYER, MAN, BENZ design platform. INTERNATIONAL QUALITY STANDARD

Cabin				air deflector,air-condition ,single or double sleeper, USB application,
				electric window lifter,GPRS management system. MAN/STEYER cabin

Drive type				Left hand / right hand, 4x2,6x2,6x4,8x4,6x6.

Engine : WEICHA I(WP series ,WD series)
Type				Diesel 4-stroke direct injection engine,
				6-cylinder in line with water cooling, turbo-charging& inter cooling.

Number of cylinder				Inline six-cylinder		BOSCH oil pump

Displacement				5.762L, 11.596L

Emission				Euro 2,3,4

Max torque (kg.m/rpm)				1 070NM-2000NM@1400-1600rpm

Cl u tch

Type				? 430 diaphragm construction

				Single-plate dry cluth,mechanically operating with air assisted

Gear box ,Transmission

Model				FAST FULLER(recommendation), ZF 8098,

Type				9,10,12,16 speeds AS ( Automatic Synchronizer )

Gear box				Mechanical form , Remote control device

Front axle

Type				STYER / HANDE,

Permissble load			Kg /axle	65 00 kg,7500kg

Rear driving axle

Model				STYER / HANDE driving axle

Type				Pressed axle housing,single/double reduction with planetary wheel reduction.

Permissble load		Kg /axle		1 3000kg,16 000 kg

Track				1800/1860

Transmission ratio				4.42 4.80 5.73 6.72 7.49 8.40 9.94

Tyre :

				Bias/Radial TYRE 315/80R22.5 / 12.00R20

Braking sytstem

Brake					ABS,ASR

Service brake					Dual circuit pneumatic brake

Parking brake					Spring energy,compressed air operating on rear wheels

Hanging

Type	FR/RR				Spring plate,Lug/Multi-leaf spring

Electric equipment

Operating voltage					24v,negative grounded

Battery voltage/capacity					12v/135A,165A

Turning technology					ZF8098 hydraulic pressure steering system

Oil Tank : 38 0L -1000L

Dimension of King pin(5th wheel): 50(2),90(3.5).

Other option: PTO, more than 20 colors surface, strengthen leaf spring.mainly as your requests.
