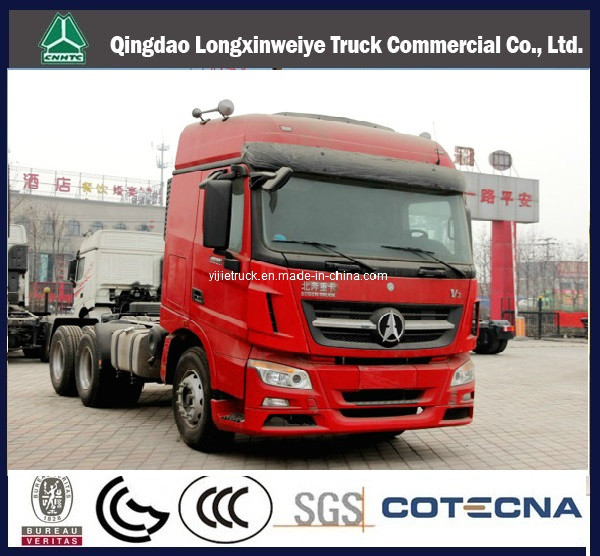

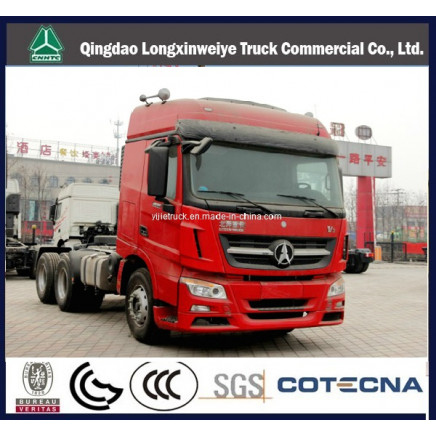

Beiben Northbenz 6X4 Tractor Truck / V3 Trailer Truck

More Views

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 21000.0-36000.0/

Price:$21000.0 - $36000.0 / Unit

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jan 08, 2015 To Apr 08, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Login or Signup to View Links.

Description

Model NO.:ND42500B32J7

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 3

Drive Wheel:6×4

Seats:?5

Horsepower:251-350hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Certification:GCC

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Export Markets:Global

Trademark:Bei Ben/Northbenz

Packing:Nude Packing

Standard:Euro 2 or 3

Origin:China

Production Capacity:6000 Sets/Month

Traction type: 6X4
Driving type: LHD (RHD is option)
Cabin: A/C and sleeper
Engine
Engine brand: Weichai
Engine HP: 280HP-420HP Euro II

Wheel base (mm)			3850+1450
Curb weight kg			9300
Engine	Model		WD12.420(WeiChai Engine Based on Styre technology, made in China),water-cooled,four strokes,6 cylinders straight in line,turbocharged, directly injection
	Displacement L		12/Diesel
	Power, max kw/rpm		420Hp 309/2200
	Emission		EUROII
Fuel tanker capacity L			300
Clutch		Model	?430, Single dry frictional disc,Hydraulic boosting
Gearbox		Model	Fuller 9JS180
Brake system		Service brake	Brake gap can be adjusted automatically, double circulation air brake system
		Assistant brake	Engine exhaust brake
		Park brake	Potential springs pressing on middle and rear wheels
Steering system		Model	ZF8098
Frame		Fish belly shape, variable width, variable sections
Front axle (Mercedes Benz Technology)		Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Benz Technology)		Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre		12.00R20
Electrical system		Battery	2X12V/135Ah
		Generator	28V-35A
		Starter	5.4Kw/24V
Cab		Long cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure.
The Fifth wheel		90#single (JOST)
