Beiben 6X4 Concrete Mixer Truck with Lowest Price

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

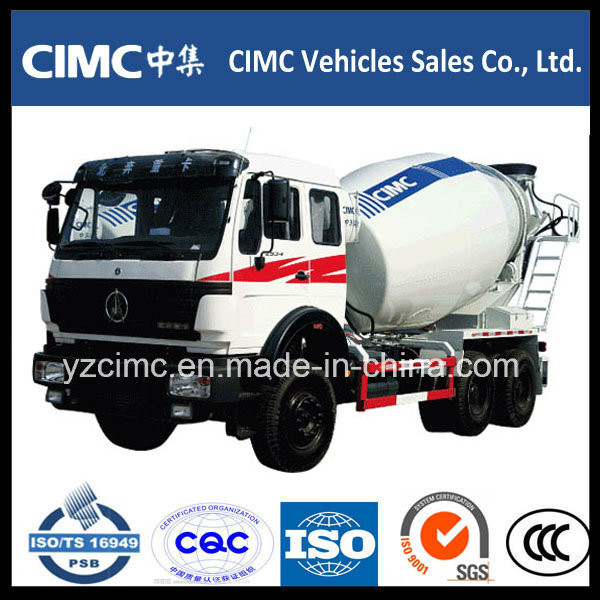

Beiben 6X4 Concrete Mixer Truck with Lowest Price

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 43500.0-48500.0/ Piece

Price:$43500.0 - $48500.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jun 26, 2015 To Sep 26, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ND5257GJBZ

Certification:ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE

Transmission Type:Manual

Emission Standard:Euro3

Displacement:8

Engine Type:4 Stroke

Payload:40T

Fuel:Diesel

Drive Mode:6x4

Maximum Horsepower:300-400hp

Condition:New

Outline Dimension (Mm):9300X2500X3900

Engine:Wp10.340e32 ,340HP

Tire:Radial Tire 12.00r20

Speed Reducer:Italian Bonfili-577L

Pump:Us Eaton5423-518

Motor:Us Eaton5433-138

Mixer Tank Volume (M 3 ):9---12

Steering Mechanism:Tas85

Wheelbase (Mm):3800+1450

Color:as Customers? Request

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Additional Info.

Trademark:Beiben

Packing:Nude Packing

Standard:ISO9000, CCC, TS16949, CE

Origin:Jiangsu, China

HS Code:8708706000

Production Capacity:1000PCS/Month

Product Description

Beiben 6X4 Concrete Mixer Truck with Lowest Price

Model		concrete mixer truck
Whole Vehicle Performance & Parameters	truck chassis		BEIBEN
	Curb Weight (Kg)		13650
	Total Vehicle Weight (Kg)		25000
	Outline Dimension(LWH) (mm)		9300X2500X3900
	Wheelbase (mm)		3800+1450
	Front Overhang (mm)		1515
	Rear Overhang (mm)		2640
	Max Traveling speed		85
Vehicle Configuration	Clutch		Dry Single Disc Clutch (?430)
	Gear Box		FAST 9T-160
	Driving Type		6*4
	Steering Mechanism		TAS85
	Service Brake		Dual-circuit Air Brake
	Parking Braking		Spring-powered Air-cut-off Brake
	Auxiliary Brake		Engine Exhaust Brake
	Tyre		12.00-20
Engine Parameters	Model		WP10.340E32
	Type		Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
	Emission Standard		Euro III
	Max Power (KW)		340HP(2200r/min)
	Max Torque		1250 N.m
Mixing Drum Parameters	Geometric Volume of Mixing Drum (m3)		14.7
	Max Mixing Cubage (m3)		9---12
	Feeding Speed (m3)		?3.5
	Discharging Speed (?m3)		?1.0
	Leftover Rate		Nearly Zero
	Max Rotating Speed (r/min)		14---16
	Mixing Drum Obliquity (°)		13.5
	Max Mixing Drum Diameter (mm)		?2162
Driving System	Speed Reducer		Italian BONFILI-577L
	Hydraulic Pump		US EATON5423-518
	Hydraulic Motor		US EATON5433-138
	Radiator		German AKG with Vacuum Meter
Water Supply System	Water Tank Capacity (L)		260
	Water Supply Mode		Water Pump; Pneumatic Pump
