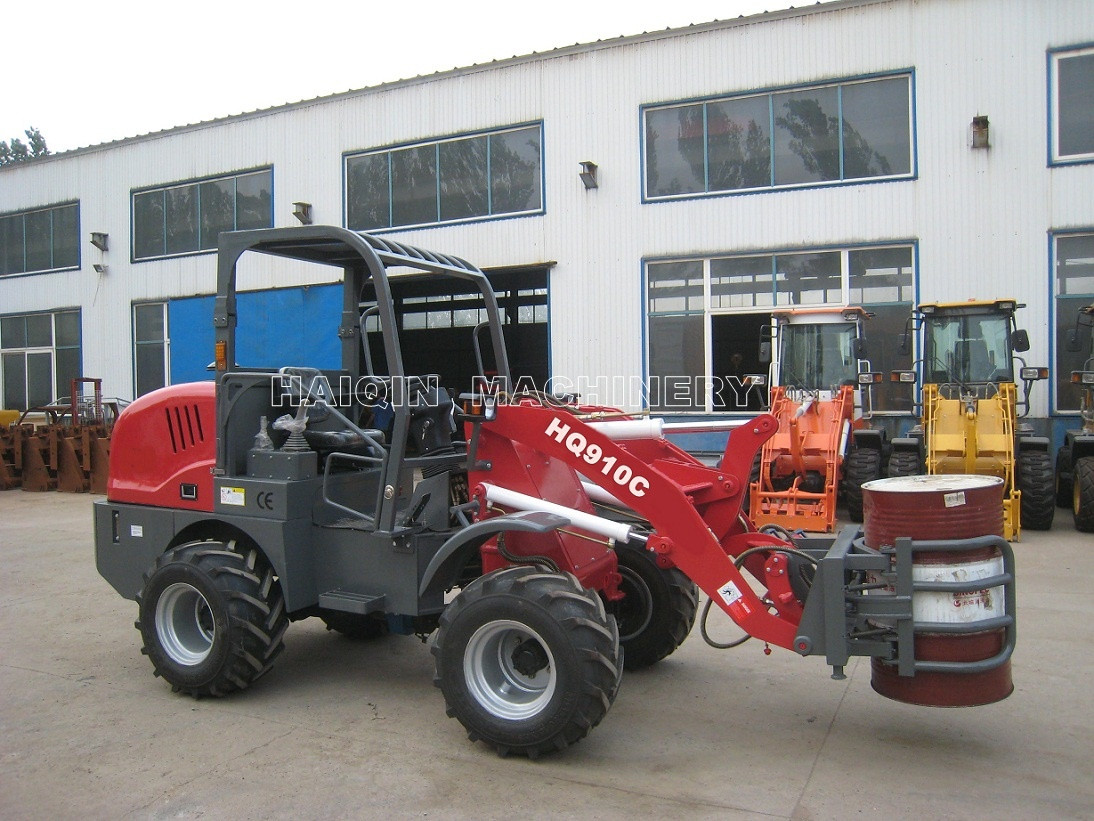

Barrel Clamp Wheel Loader (HQ910C) with CE, SGS

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 8000.0-11000.0/ Piece

Price:$8000.0 - $11000.0 / Piece

Trade Terms: FOB, CFR, CIF, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jul 08, 2015 To Apr 23, 2019

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HQ910C

Type:Small Loader

Usage:Universal Type

Scraper Type:Front End Shovel

Transmission:Hydraulic Transmission

Walking Mode:Wheeled

Load and Unload Method:Front Discharge

Engine Power:<74kw

Certification:CE, ISO9001: 2000, SGS,Rops&Fops

Condition:New

Color:According to Customers Requirments

Loading Weight:1000kg

Engine:Euro III Engine

Operating Weight:2750kg

Warranty:1 Year

Export Markets:Global

Additional Info.

Trademark:Haiqin

Packing:3 Units in One 40 Container

Standard:CE, ISO, SGS, ROP&FOPS

Origin:Shandong, China

HS Code:84295100

Production Capacity:8000 Units / Year

Product Description

Advantage of HQ910 Wheel Loader:

1) Mini Loader with Fully Hydraulic Driving: Smooth transmisson, little noise and high transmission ratio.
2) With CE Certificate
3) Mini Loader with Euro III Emission Engine
4)Multi-function Mini Loader: Hydraulic controlling pilot joystick reduces workforce intensity, improves working efficiency and enhances the driver's comfort.

Specifications of HQ910C Mini Loader
Item	Specifications	Item	Specifications
Rated loading weight	1000kg	Operating weight	2730kg
Rated bucket capacity	0.54-0.7m 3	Overall dimensions(LxWxH)	4450x1430x2600mm
Bucket width	1500mm	Engine model	XINCHAI 490 EURO III Engine ( Yanmar or Perkins for option )
Track base	1160mm	Engine type	In-line arrangement, water cooled, four-cycle diesel engine
Wheel base	1710mm	Engine starting mode	Electric
Min. turning radius(outside of rear wheels)	3750mm	Rated power/Rated speed	32.4KW/2400rpm
Min. Ground clearance	230mm	Brake mode	Four-wheel hydraulic spread-shoed brake
Dump height fully raised	2420mm	Warranty	15 months
Dump height fully raised	2420mm	Warranty
Reach fully raised	850mm	Color	According to the requirements of customers
Lifting time + Dumping time + Lowering time	9S	Tyre type	12-16.5 or 3115.515 wide tyre
Steering angle	35 degree	Shipping port	Qingdao port, China
Max. Breakout Force	35KN	Packing details	1 unit in a 20 container, 3 units in a 40 container.
Driving mode	Four-wheel drive	Delivery time	20 days after confirm the order
OEM Service	Yes
