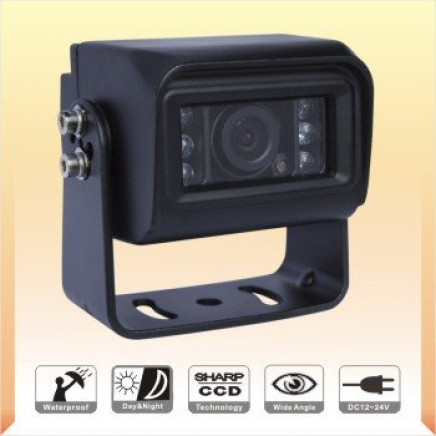

Backup View Camera for Vehicles (DF-8083)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF, EXW

Payment Terms:L/C, T/T, Western Union

Trademark:VEISE

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DF-8083

Technology:Infrared

Style:Box Camera

Type:CCTV Camera

Sensor:CCD

Horizontal Resolution:720tvl

Kind:Autofocus Lens

Certification:CE, FCC, RoHS

Feature:Waterproof / Weatherproof

Effective Distance:?30m

Sensor Size:1/3 inch

Remote Control:Without Remote Control

Export Markets:Global

Additional Info.

Trademark:VEISE

Standard:CE, FCC, ISO9001: 2000, RoHS

Origin:China

Production Capacity:5000PCS/Month

Product Description

Backup view camera for vehicles(DF-8083)

Rear View Backup Camera Eliminate Blind Spots on Farm Tractor,Heavy Equipment,Maritime Ship,Trucks,Fork-lifts ,Security Escort ,Airport Vehicles
Mini Aluminum Shell 100% Waterproof IP69K Rating and 10G Vibration
Ultra Bright Wavelength 850nm 6pcs IR LEDs for Night Vision
Backup View Camera for Vehicles (DF-8083)

Model	DF-8083
Image Pick-up Device	1/3" SHARP COLOR CCD
Horizontal Resolution	420 TV Lines
Number of Pixels	NTSC:510(H)×492(V); PAL:500(H)×582(V)
Scanning System	NTSC:525 Lines,60 Field/sec, PAL:625 Lines 50 Field/sec
Sync System	Internal Synchronization
Gamma Characterlstic	0.45
S/N Ratio	?48dB(AGC Off)
Electronic Shutter Time	On: NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec; Off: NTSC 1/60 Sec, PAL 1/50 Sec
Usable Illumination	0 lux with built-in IR LED
IR projecct distance	5-8 meters(6 Unit Infrared LED)
IR Status	Under 10 Lux by CDS
IR Power On	CDS Auto Control
Lens	Board Lens 3.6mm/F2.0(optional)
Video Output	1.0Vp-p 75 ohm
Gain Control(AGC)	Auto
Cable	BNC JACK
Water resistance	IP66
Operation Temperature	-10ºC~+50ºC RH95% Max
Storage Temperature	-20ºC~+60ºC RH95% Max
Power Supply	DC12V±10% 400mA
Dimension	70(W) x 60(D) x 65(H)mm
Weight	250g
