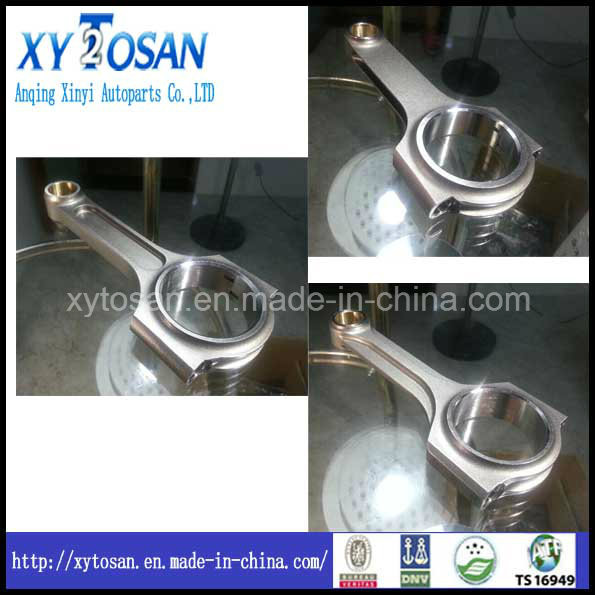

Autoparts Forged 4340 Steel Connecting Rod for Nissan Tb48

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$26.0 - $27.0 / Piece

Min. Order (Pieces)	Unit Price
50.0	US $ 27/ Piece
500.0	US $ 26/ Piece

Trade Terms: FOB, CFR, EXW, CIF, DDP, FCA

Payment Terms: L/C, T/T, Western Union, Paypal

Price Valid Time:From Jul 24, 2015 To Aug 28, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:STD TB48

Type:Connecting Rod

Body Material:Aluminium

Discharge Standard:Euro III

Certification:ISO9001, TS16949, CE, CCC

Noise Source:The Noise of Engine

The Noise of Engine:The Combustion Noise

Automobile Chassis Noise:Transmission Noise

Component:Connecting Rod

Main Market:Europe

Type Name:Racing Connecting Rod

Size:C/C:153.5mm

Car Make:Nissan Tb48

Place of Origin:Anhui China Mianland

Brand Name:Xytosan

Material Name:Forged 4340 Steel

Application:Auto Parts Performance Connecting Rod

Supported Horse:500-900HP

Rod Wrist Pin Style:Bushed Floating

Rod Bolt Head:12 Point

Export Markets:Global

Additional Info.

Trademark:XYTOSAN

Packing:Carton Package/Requirement Package

Standard:TS16949

Origin:Anhui China Mianland

HS Code:8409919990

Production Capacity:200000/Per Month

Product Description

Autoparts Racing Connecting Rod for Nissan TB48

Packaging & Delivery

Packaging Detail:	Each set is well packed in box to prevent from rust. All boxes are fixed in strong carton for shipment. Besides, we have customization service for packing.
Delivery Detail:	3 0days

Specifications
Brand: XYTOSAN
Origin: ANHUI
Type: CNC Machining Auto Parts Performance Connecting Rod
ISO System: ISO/TS 16949
H & I & X Beam Forged 4340 Steel Auto Parts Performance Connecting Rod

Brief Introduction
XYTOSAN connecting rods are designed specifically for high horsepower racing engines.Our company is a professional manufacture in this line for over 15 years.With updated machiney and skilled staffs ,we have supplied stable high quality products to customers all over the world.Please look at the following tips,and you will choose us:

Material: 4340 forged steel
Conrod bearing width: 0.6~0.8mm
Shoot pin: 0.3~0.5mm
Banlanced weight: ą1g
HRC: 34-38
Matching HP= 550HP(min)~1600HP(max),even more
Torque: 3/8-75N.M 7/16-95N.M

The rod main measurements are as follow:

Center To Center Length	6.043"
Big End Bore Diameter	2.283"
Pin End Bore Diameter	0.866"
Big End Width	0,822"

More models for Nissan series

Type

Engine

pcs/set

(mm)c-c

B/E bore

S/E bore

B/E W

S/E W

bolt

Nissan	S20 std	6	116	53	22	25.8	22	3/8"
	S20 std	6	116	53	21	25.8	22	3/8"
	S20-119	6	119	53	20	25.8	24	3/8"
	S20-116	6	116	53	22	25,8	24	3/8"
	S20-118	6	118.7	51	20	21.5	21.5	3/8"
	S20-119.5	6	119.5	51	23	21.5	21.5	3/8"
	SR20	4	136.30	51	22	22.8	21	3/8"
	SR20 (L)	4	136.30	51	22.01	22.8	23.5	3/8"
	SR20 (I)	4	136.3	51	22	22.8	23.5	3/8"
	RB26/RB25	6	121.50	51	21	21.8	21.8	3/8"
	RB26	6	121.50	51	21	21.8	21.8	7/16"
	RB29	6	121.5	53	21	24.8	21	3/8"
	RB30	6	155.5	53	21	24.8	21	3/8"
	RB30	6	152.5	53	21	24.8	21	3/8"
	RB30	6	154.3	53	21	21.8	21.8	3/8"
	L16 L24	4	133	53	21	26.77	25.4	3/8"
	L16 L24	4	130	53	21	26.77	25.4	3/8"
	DATSUN L6	4	133	53	21	26.8	23.9	3/8"
	DATSUN L6	4	130.3	53	21	26.8	23.9	3/8"
	s20119	6	119.00	52.99	21	26.8	22	3/8"
	K6A	3	113.9	41	20	21.95	21.95	5/16"
	L-137.5	6	137.5	53	21	26.8	20.5	5/16"
	L-137.5	6	137.5	53	21	26.8	20.5	3/8"
	L-NARROW Spl	6	137.5	53	21	21.8	20.5	5/16"
	L32-139 SPL	6	139	53	20	21.8	20.5	5/16"
	L32-135spl	6	135	51	21	24.8	20.5	3/8"
	L-140	4	140	53	21	26.8	20.5	3/8"
	VG30	6	154.2	53	22	20.8	20.8	3/8"
	A12(J)	4	121.5	48	17.455	24.3	21.8	5/16"
	A12(L)	4	121.5	48	17.5	24.3	24.3	5/16"
	U20-158.5	4	158.5	55	20	28.7	21	3/8"
	A15	4	133	48	19	24.3	21.8	5/16"
	CA18	4	133	48	20	24.2	21	3/8"
	CA18 DET(uk)	4	133	48	20	24.2	21	3/8"
	132.84	4	132.84	48	22	24.2	23	3/8"
	AUT(Hayabusar)	4	119.5	41	20	21	21	5/16"
	SGG-RK	4	133.1	51.68	18	22.5	15.05	5/16"
	CRC-CA(VG35)	4	144.2	55	22.01	20.8	20.8	3/8"
	A13	4	145	48	19	24.3	20	5/16"
	CRC-CA(VQ35)	6	144.2	55	22	20.8	20.8	3/8"
	CC163.5mm	6	163.5	60	23	32.8	25.9	7/16"
	CC148mm	6	154	60	23	32.8	25.9	7/16"
	CC151.75mm	4	151.75	57	22	20.8	20.8	3/8"
	RGC CC151.75	4	151.75	59	21	19.45	20.9	3/8"
	149.3	4	149.3	53.9	20.64	25.7	21	3/8"
	7AFE	4	132.5	51	20	21.8	21.97	3/8"

Quality Control:

Measurement	Scope Tolerance	Instrument	Capability
Bore Diameter	ą0.005mm	Bore Gauge (Sunnen)	0.001mm
Bore to Bore Distance	ą0.05mm	Micro-Hite Gauge (TESA)	0.001mm
Rod Thickness	ą0.05mm	Micrometer (Mitutoyo)	0.001mm
Hardness	HRC 25~45 HRC 59~63	Hardness Testing Machine (Mitutoyo)	1 HRC
Roundness / Cylindricity	0.003mm	Round Tester (Mitutoyo)	0.01?m
Roughness	Under Ra 0.2?m	Roughness Meter (Mitutoyo)	0.01?m
Parallelism	0.05/100	Indicator (Mitutoyo)	0.01mm
Ring Gauge Correction	ą1?m	Universal Length MeasuringInstrument (Helios)	0.1?m
Rod Profile	ą0.30mm	Video Measuring System (ARCS)	0.5?m

ABOUT US:

AnQing XinYi Auto Parts Co., LTD. Was Established In 1998, Headquartered In Anqing City Economic And Technological Development Zone Industrial Park. . Our Company Mainly Produces The Valve, valve guide, The Valve Seat . As More And More The Requirements Of The Guests We Provide Different Engine Parts, To enlarge our development further, we have built a branch in Angola. Our Quality Objectives: Zero Defect. Our Service Goals: One-Stop Service.
We welcome your phone cell, comments, requests and certainly welcome the opportunity to cooperate the business with your company.
