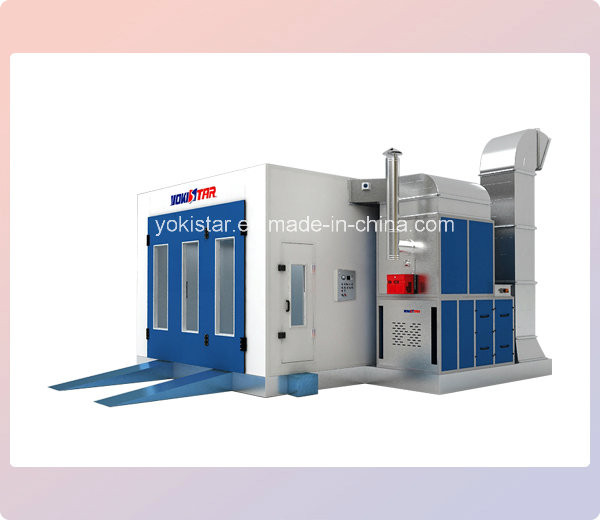

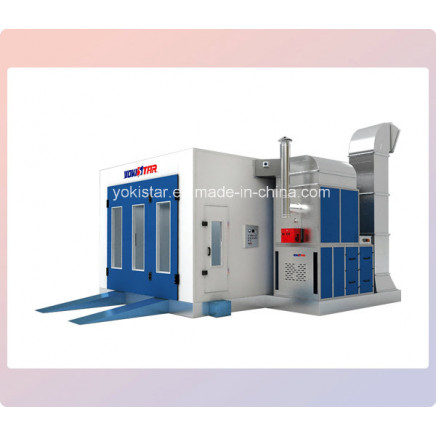

| Basement |
| Floor Arrangement |
|
| 2 rows of grilles made of 30x4mm flat bar and 10mm twisted steel, with surface galvanised treatment, |
| loading weight is 600KG/wheel, equipped with floor filter supporting frame. |
| 3 rows of indented plate with surface painted treatment. |
| 2 ramps, each size is 520x2,000mm(WxL). |
| Covered Plate |
|
| made of bended galvanised steel, 300mm high. |
| Supporting Frame |
|
| made of galvanised square steel tube with 40x80mm(WxL) size. |
| Floor Filter |
|
| Fiber glass filter laid on the filter fram,G3 Grade(EN779), type is PA-50, filtering area: 10.35M2. |
|
|
| Cabin |
| Inside Size |
|
| 6,900x3,900x2,650mm(LxWxH). |
| Outside Size |
|
| 7,000x5,350x3,400mm(LxWxH). |
| Entrance door |
|
| 3-leaf,size is 3,000x2,600mm(WxH), made of bended steel without covered edge,with tempered glass |
| embedded into square frame made of color steel. |
| Personnel Door |
|
| 1 unit, size is 700x2,000mm(WxH),with tempered glass embedded into square frame made of |
| color steel. |
| Wall Panel |
|
| 50mm thick and 1,000mm wide,insulation is EPS and covered by 0.326mm thick of color steel inside |
| and outside.Tongue and groove interlock strucutre,two sides covered by steel. |
| Roof Panel |
|
| Made of 0.6mm thick bended galvanised plate. |
| Ceiling Light |
|
| Left and right upper position have 5 lighting fixtures, total 10 fixtures. Each fixture is equipped with |
| 4 PHILLIP fluorescent tubes of 36 Watt with two in one electronic ballast. |
| Plenum |
|
| 450mm high, all spare parts of plenum are made of galvanised bended steel and treated by white |
| powder for long using life. |
| Ceiling Filter |
|
| Supporting net is made of C shape steel with surface oil painted treatment,sub-high efficiency filter, |
| F5 Grade(EN779),type is SP-600G. |
|
|
| Makeup Air Units |
| Frame Size |
|
| 2,400x1,250x2,400mm(LxWxH) |
| Cabinet Frame |
|
| Made of 1.5mm thick bended galvanised steel, three way connector made of alluminium alloy. |
| Motor and Fan |
|
| Motor:direct drive type; qty.:1pc; single motor power:7.5KW, total power:7.5KW; |
| Fan type: single intake turbo fan,total air capacity: 25,000m3/h |
| Makeup Air Control |
|
| by Belimo NMU230 10N actuator to control fresh air quantity. |
| Pneumatic Actuator |
|
| To control the air valve be opened or closed while the working status is spraying or baking. |
| Heat Exchanger |
|
| 200KW, made of 1.5mm stainless steel 1Gr18Ni9Ti(SUS304), with round type multi-cycle |
| radiatorpipe, equipped with safe anti-explosion hole, 1M stainless steel chimney, 3M |
| long bended galvanisedsteel chimney and 1 pc of rain shield. |
| Burner |
|
| Riello G20 diesel burner, heating productivity is 200,000Kcal/H. |
| Filtering |
|
| Pre-filter, G3 Grade(EN779),type is C16-300 ; |
| Fibre glass filter, G3 Grade(EN779),type is PA-50 . |
|
|
| Exhaust Air Units |
| without the unit made of motor and fan. The wasted air exhausted by positive pressure. |
| Equppped with 4M straight duct, 1pc 90╟ elbow duct and 1pc 30 elbow╟ duct. |
|
|
| Control System |
| Temperature Controller,Hours,Baking Timer,Pressure Gauge,Power Indicator,Spray Indicator, |
| Bake Indicator,Failure Indicator,Spray Switch,Bake Switch,Left Light Switch,Right Light Switch, |
| Emergency Stop,Start Switch. |
