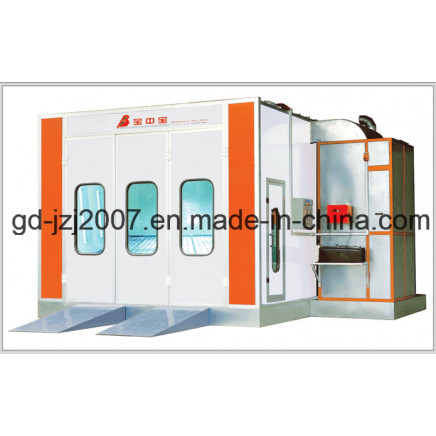

Automotive Spray Paint Booth CE High Quality with Good Price

More Views

More than 10 available

Availability: In stock

Price:

Min. order:1 set

Trade Terms:FOB

Payment Terms:T/T

Trademark:BZB

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Login or Signup to View Links.

Description

Model NO.:BZB-8200

Certification:CE

Condition:New

Color:as Require

Voltage:as Require

Export Markets:Global

Trademark:BZB

Packing:Polyfoam and Carton

Standard:CE, ISO9001: 2000

Origin:Guangzhou, China

HS Code:84198990

Production Capacity:500per/Year

Our spray booth BZB-8200 has goodd ventilation and filtering system, it is also very economical and of good quality.

Outside Size: (mm)	7000? 5560? 3430	Front Door: (mm)	3000(w)? 2700(h)
Inside Size: (mm)	6900? 4000? 2800	Total Power: (km)	10

Cabin System	Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards, 50mm Thick, Compound Construction, Anti-flame and Heat-Insulation Galvanized Steel Roof Panel.
	Basement:	Two Grid& Three Embossed Plate, Galvanized Steel Sheet Construction, Two Ramps,
Air Circulation System	Inlet Fan		Capacity: 12000m³ /h	Power: 4kw/set	Quantity: 2set
	Air Volume: 24000m³ /h; Air Speed: 0.35m /s
Air Purification System	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 ? m. Ceiling Filter Capture Granules Bigger than 5 ? m. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. TSP ? 1.4mg/m³
Heating System	Burner		Italy Riello Brand, G20 Diesel Burner, 180000Kcal/h, The Heat Exchange Rate 85%.
	Heat Energy Converters		Stainless Steel, Argon Arc Welding.
	Max Temp: 80° C, Heating Time: 5-7min, Fuel Consumption: 4 -6kg /vehicle
Lighting System	Ceiling Light: 24 pcs 36w Philips Lamp; 800 Lux
Electric Controlling System	Light Switch, Spray & Baking Switch, Emergency Stop, Breakdown Alarm
