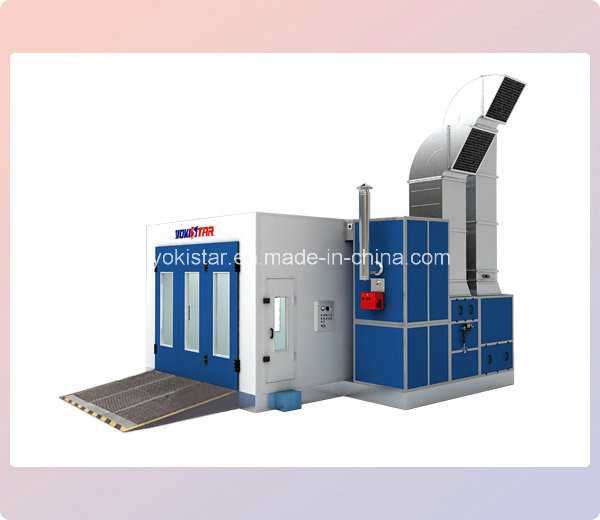

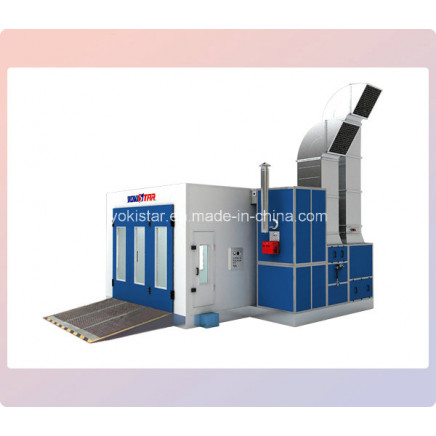

| Basement |
| Floor Arrangement |
|
| Full grilles made of 30x4mm flat bar and 10mm twisted steel, with surface galvanised treatment, |
| loading weight is 600KG/wheel. |
| Full ramp is made of grilles which size is 3,500x2,500mm(WxL). |
| Covered Plate |
|
| made of bended galvanised steel, 300mm high. |
| Supporting Frame |
|
| made of galvanised square steel tube with 40x80mm(WxL) size, height can be adjusted |
| for making the floor be flat. |
| Floor Filter |
|
| Fiber glass filter laid on the filter frame,G3 Grade(EN779), type is PA-50, filtering area: 10.35M2 |
|
|
| Cabin |
| Inside Size |
|
| 6,900x3,900x2,650mm(LxWxH). |
| Outside Size |
|
| 7,000x5,350x3,400mm(LxWxH). |
| Entrance door |
|
| 4-leaf,size is 3,200x2,600mm(WxH), made of bended steel without covered edge,with tempered glass |
| embedded into square frame made of color steel,equipped with a set of pressure lock. |
| Personnel Door |
|
| 1 unit, size is 700x2,000mm(WxH),with tempered glass embedded into square frame made of |
| color steel. |
| Wall Panel |
|
| 50mm thick and 1,000mm wide,insulation is EPS and covered by 0.6mm thick of color steel inside |
| and outside.Tongue and groove interlock structure,two sides covered by steel. |
| Roof Panel |
|
| Made of 0.6mm thick bended galvanised plate. |
| Ceiling Light |
|
| Left and right upper position have 5 lighting fixtures, total 10 fixtures. Each fixture is equipped with |
| 4 PHILLIP fluorescent tubes of 36 Watt with two in one electronic ballast. |
| Side Light |
|
| Left and right side have 5 lighting fixtures, total 10 fixtures, vertical installation. Each fixture is |
| equipped with 4 PHILLIP fluorescent tubes of 36 Watt with two in one electronic ballast. |
| Plenum |
|
| Normal shape, 450mm high, all spare parts of plenum are made of galvanised bended steel and treated by |
| white paint for long using life. |
| Ceiling Filter |
|
| Supporting net is made of C shape steel with surface oil painted treatment,sub-high efficiency filter, |
| F5 Grade(EN779),type is SP-600G. |
|
|
| Makeup Air Unit |
| Frame Size |
|
| 1,300x1,250x3,100mm(LxWxH). |
| Cabinet Frame |
|
| made of 1.5mm thick bended galvanised steel, three way connector made of alluminium alloy. |
| Motor and Fan |
|
| Motor: inside of the fan; qty.:1pc; single motor power:7.5KW; total power:7.5KW; |
| Fan type: double intake centrifugal fan, YDW-5.6M, total air capacity: 20,000m3/h. |
| Makeup Air Control |
|
| by Belimo NMU230 10N actuator to control fresh air quantity. |
| Equipped with 3M straight duct, 1M 90╟ elbow duct, 1M 30╟ elbow duct. |
| Pneumatic Actuator |
|
| To control the air valve be opened or closed while the working status is spraying or baking. |
| Heat Exchanger |
|
| 232KW, made of 1.5mm stainless steel 1Gr18Ni9Ti(SUS304), with round type multi-cycle |
| radiatorpipe, equipped with safe anti-explosion hole, 1M stainless steel chimney, 3M |
| long bended galvanised steel chimney and 1 pc of rain shield. |
| Burner |
|
| Riello RG5S diesel burner, heating productivity is 260,000Kcal/H. |
| Makeup Air Filtering |
|
| Pocket pre-filter, G3 Grade(EN779),type is C16-300 ; |
| Fibre glass filter, G3 Grade(EN779),type is PA-50. |
|
|
| Exhaust Air Units |
| Frame Size |
|
| 1,300x1,250x1,500mm(LxWxH). |
| Cabinet Frame |
|
| Made of 1.5mm thick bended galvanised steel, three way connector made of alluminium alloy. |
| Motor and Fan |
|
| Motor: inside of the fan; qty.:1pc; single motor power:7.5KW; total power:7.5KW; |
| Fan type: double intake centrifugal fan, YDW-5.6M, total air capacity: 20,000m3/h. |
| Exhaust Air Control |
|
| by Belimo NMU230 10N actuator to control fresh air quantity. |
| Equipped with 4M straight duct, 1pc 90╟ elbow duct and 1pc 30╟ elbow duct. |
| Exhaust Air Filtering |
|
| Fibre glass filter, G3 Grade(EN779),type is PA-50 . |
| Granular Active Carbon (KC-8.0) in "M" Shape Filter Frame. |
|
|
| Control System |
| Pressure Gauge,Temperature Controller,Baking Timer,Hours,Spray Indicator, |
| Heat Spray Indicator,Bake Indicator,Failure Indicator,Left Light Indicator, |
| Right Light Indicator,Spray Switch,Heat Spraying Switch,Bake Switch,Left Light Switch, |
| Right Light Switch,power Indicator,Start Switch,Power Switch,Emergency Stop. |
