Automatic Car Spray Booth Form Yokistar

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
1.0	US $ 6500/ Set

Price:US $6500.0 / Set

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Cash

Price Valid Time:From Jul 11, 2015 To Dec 01, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:Yubase-T

Type:Spray Booth

Certification:CE

Substrate:Steel & Aluminum

Brand:Yokistar

Coating:Painting & Powder Coating

Airflow Direction:Full Downdraft Airflow Way

Heating Mode:Diesel

Paint Mist Treatment:Dry-type

Condition:New

Ventilation:Full Downdraft Airflow Way

Air Intake:2*3kw Motor Inside Centrifugal Fan

Heating:1 Unit Riello G10 Diesel Burner

Voltage:1X220V, 3X380V, Your Special Voltages

Optional Colour:White, Blue, Orange and Red

Port:Huangpu Port or by Your Order

Main Product:Spray Booth, Prep Station, Infrared Curing System

Export Markets:Global

Additional Info.

Trademark:YOKISTAR

Packing:Bubble Film Packing for Sea Transportation in Bulk

Standard:20?GP can load 1 set, 40?GP 2 sets, 40?HQ 3 sets.

Origin:Guangzhou, China

HS Code:84198990

Production Capacity:120units/Month

Product Description

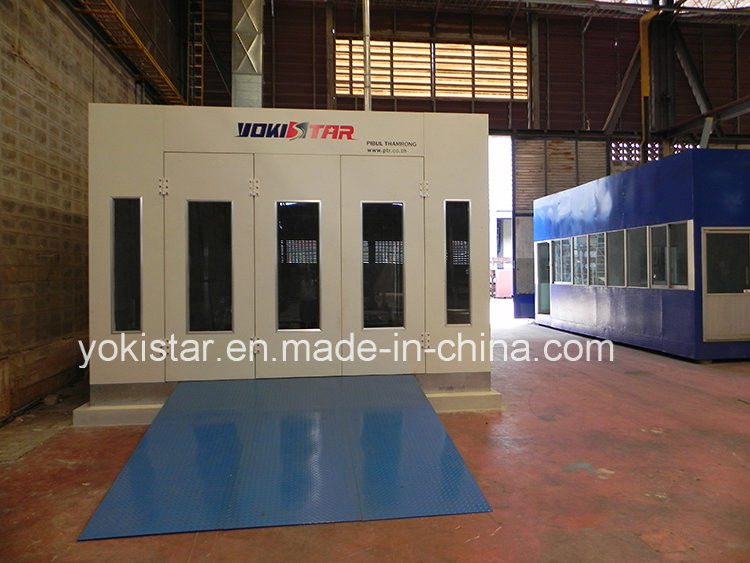

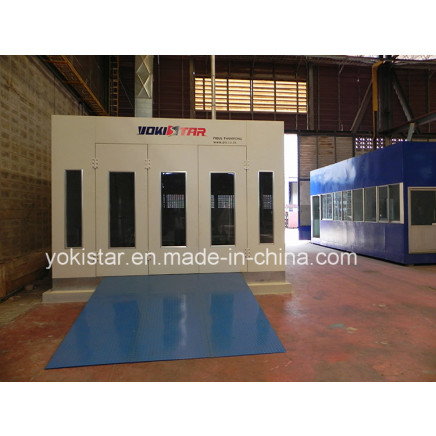

Spray booth from YOKISTAR

Outside dimension	7000в5350в3400mm(LXWXH)
Inside dimension	6900 X 3900 X 2650mm(LXWXH)
Basement	2 rows of grilles made of 30x4mm flat bar and 10mm twisted steel, with surface galvanised treatment
Wall Panel	50mm thick and 1,000mm wide,insulation is EPS and covered by 0.326mm thick of color steel inside and outside.
Intake air Unit	1x7.5kw direct drive type single turbo fan, with total air capacity: 25,000m3/h
Cabin	Pre-filter, G3 Grade(EN779),type is C16-300 ; Fibre glass filter, G3 Grade(EN779),type is PA-50
Option	Add exhaust air unit

Warranty:

The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

YOKISTAR products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.
