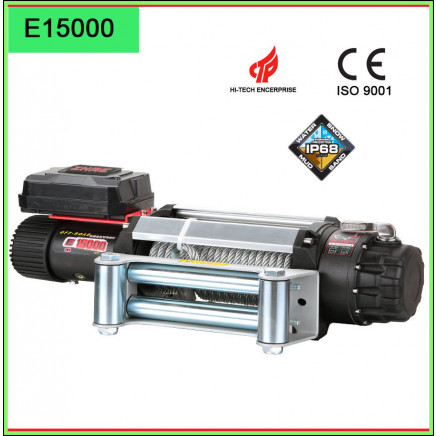

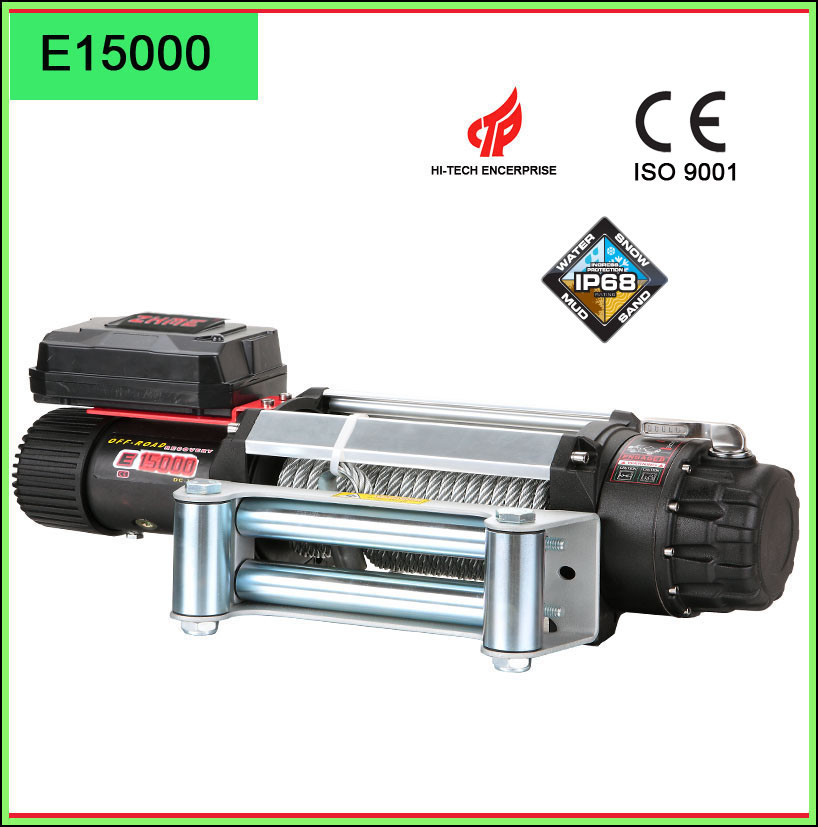

Auto Winch with Water Proof Control Box

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$295.0 - $325.0 / Piece

Min. Order (Pieces)	Unit Price
15.0	US $ 325/ Piece
1000.0	US $ 295/ Piece

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From Apr 07, 2015 To Jul 07, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:E15000LBS

Type:Electric Winch

Certification:CE

Heavy Duty:Black Textured

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Strong Carton Box, Optional Pallets

Standard:CE

Origin:Ningbo, China

HS Code:84253190

Production Capacity:600PCS / Month

Product Description

Truck Winch E 15000
Rated line pull: 15000lbs (6804 kgs) Single line.
Motor: Seires Wound 6.8HP/5.0 kw, 12V DC.
Gear Train: 3 Stage Planetary
Gear Ratio: 262.: 1
Clutch Sliding Ring Gear
Braking action: Automatic in the drum
Fairlead: 4-way Roller Fairlead
Rope: Wire rope 11.5mmX26m
Drum size: 3.0"X 8.8" ( 76mm X 224mm)
Dimensions: 23. "X6.7"X8.4"(584mm X 170mm X 214mm)
Mounting bolt pattern: 10" X 4.5" ( 254mm X 114.3mm)
Battery: Recommended 650 CCA minimum for winching 32Square mm, 72" ( 1.83m)
N. W: 97 lbs (46 kg)
Packing: 640mm X 210mm X 400mm / Carton

One 20 feet container covers 300 cartons, If need, Use pallets.
