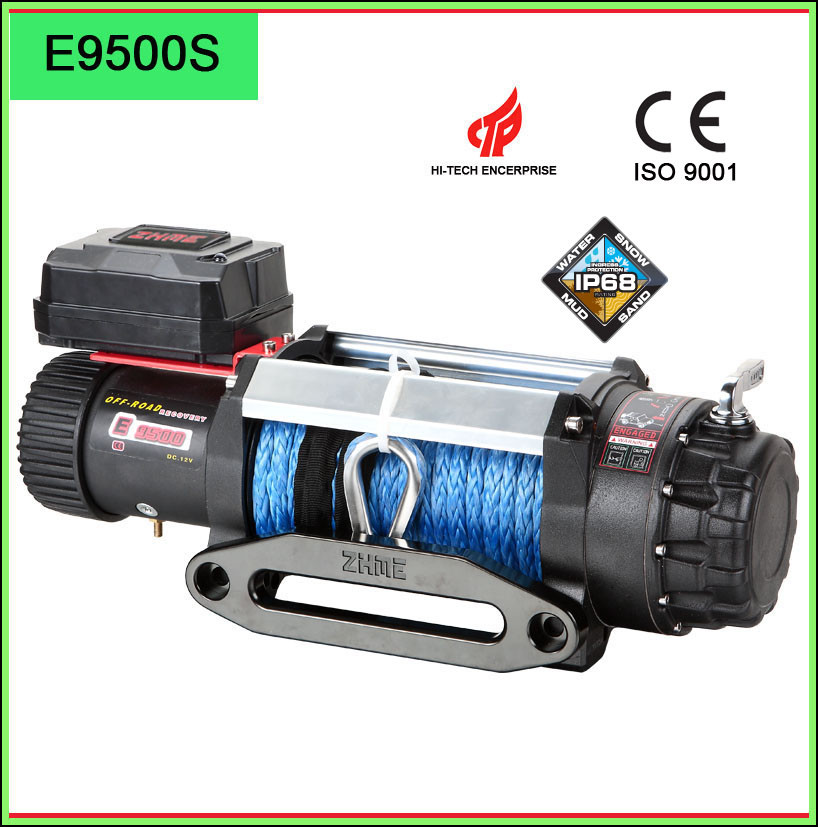

Auto Winch 9500lbs with Synthetic Rope

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$295.0 - $325.0 / Piece

Min. Order (Sets)	Unit Price
15.0	US $ 325/ Piece
1000.0	US $ 295/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 07, 2015 To Jul 07, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:AUTO WINCH 9500LBS SYNTHETIC ROPE

Type:Electric Winch

Power Type:Series Motor DC

Pull Direction:4-Way

Brand:Zhme

Applicable Environment:Mountain Road

Certification:CE

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Strong Carton Box, Optional Pallets

Standard:CE

Origin:Ningbo, China

HS Code:84253190

Production Capacity:1000PCS / Month

Product Description

Rated line pull: 9500lbs (4310 kgs) Single line.
Motor: Seires Wound 6.0 HP/4.4 kw, 12V DC.
Gear Train: 3 Stage Planetary
Gear Ratio: 212: 1
Clutch Sliding Ring Gear
Braking action: Automatic in the drum
Fairlead: 4-way Roller Fairlead
Rope: Synthetic rope 9.5mmX26m
Drum size: 2.5"X 9.0" ( 64mm X 224mm)
Dimensions: 23. "X6.6"X8.4"(552mm X 168mm X 214mm)
Mounting bolt pattern: 10" X 4.5" ( 254mm X 114.3mm)
Battery: Recommended 650 CCA minimum for winching 25 Square mm, 72" ( 1.83m)
N. W: 75lbs (34 kg)
Packing: 620mm X 390mm X 200mm / Carton

One 20 feet container covers 400 cartons, If need, Use pallets.
