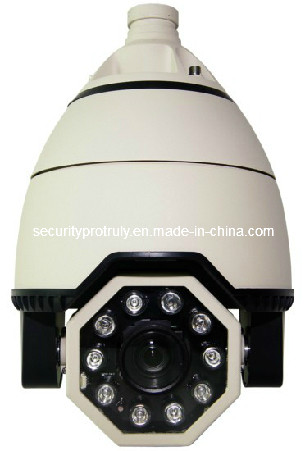

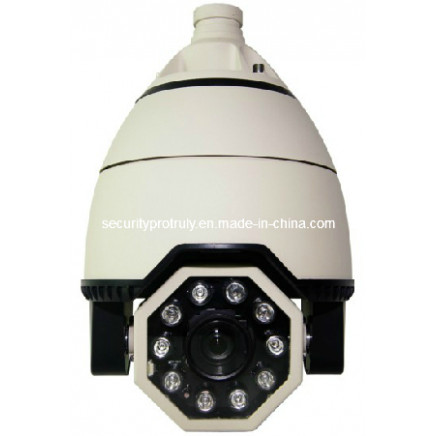

Auto-Iris IP66 Infrared PTZ Dome CCTV Camera with FCC and CE Approved (BQL/JeR89-27/120)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:4 Pieces

Trade Terms:FOB, EXW

Payment Terms:L/C, T/T, Western Union

Trademark:Protruly / OEM

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BQL/JeR89-27/120

Type:Dome Camera

Sensor:CCD

Speed:High-speed Dome

Technology:Infrared Dome Camera

Feature:Vandal-proof, Mini Size, Waterproof / Weatherproof, High Definition, Awb., WDR ., Mask., Dnr ., Strong Light Inhibition

Horizontal Resolution:480tvl

Signal Model:Auto-Iris

Lens:3.2-86.4 Mm

OSD:Full -Screen Chinese / English Menu

Housing Protection:IP66

Zoom:Optical Zoom 27X / Optional 10X

Image Sensor:1/4" Sony CCD

Iris:IR-Cut

Export Markets:Global

Additional Info.

Trademark:Protruly / OEM

Standard:CE/FCC/ROHS

Origin:China Shenzhen

HS Code:8525801390

Production Capacity:2000PCS / Week

Product Description

7" Outdoor/Indoor Infrared high speed dome camera (J - IR 120m series BQL/JeR49-27/120 )

HOT: 1. Real Auto-Iris compared with Other manufacture
2. All our items are High speed dome. All our domes can match public network module, it constitutes IP dome. Our company can buy netwaork module on your behalf.

Advantage:
1. It uses all-digital control, simple and ingenious design, discretional quickly locate and continuous follow-up scan, it has automatic tracking function, make smart surveillance of all-round, non-blind spot
.
2. It can automatically adapt to the environment and target distance changes in light and dark, High reliability and long-term stable operation, without maintenance.
.
3. High speed PTZ camera is compatible with a variety of control protocols, so it can support a variety of popular platforms.

Application places:
Infrared intelligent high-speed ball of various characteristics of large area, applicable to all walks of life activities target surveillance.
Such as: Power systems, telecom departments, bank security, mines, intelligent building, intelligent community, city road monitoring, airports, railway stations, etc as security monitoring situation, and the fire monitoring system of image monitoring equipment.

Technical program about Sony EFFIO:
EFFIO (Enhanced Features and Fine Image Processor. It has high resolution, high SNR and excellent Color reproduction). It was came into market by Sony. It had four versions: Effio, Effio-E, Effio-P, Effio-S.

Features of Sony EFFIO-E:
1/3 "Sony EX-VIEW HAD II CCD with high-quality and high- sensitivity. Up to 650 tvl of horizontal resolution, high-definition images, excellent low light performance.
A. Range of AWB. Is 1.8 ~ 10K, it can monitor environment with a variety of shine.
B. Digital WDR...Excellent color reproduction (ATR Auto Levels adaptation).
C. 2D DNR...In the case of low light, obtained clean and delicate images.
D. 8 language OSD menu, powerful, high brightness compensation, strong light inhibition.

7" Outdoor/Indoor Infrared 120m high speed dome camera (J - IR 120m series)
Madel No.	BQL/JeR89-27/120
Image Sensor	1/4" SONY CCD
Signal Model	PAL/NTSC
Horizontal Resolution	480TVL
Effective Pixel	PAL: 500(H)X582(V) NTSC: 510(H)X492(V)
Iris	Auto-iris
Lens	3.2-86.4 mm
Minimum Illumination	0Lux, Color to B/W
Application Environment	Indoor/Outdoor
Installation way	histing mounted , wall mounted
Housing protection	IP66
S/N Radio	? 60dB ( enhanced )
Filter	IR-CUT
Backlight Compensation	On/Off
White Balance	Auto
Electronic Shutter	PAL: 1/50~1/10000 seconds, NTSC: 1/60~1/12000 seconds
IR distance	120m IR
Optical zoom	27X
Digital zoom	Optional 10X
Focus	Auto/manual , take high-performance DSP to realize complete digital and ultra-high speed focus function.
Preset	255
Pattern scan	4 groups , each can record 200 actions
Tour scan	4 groups , every group have16 presets can join cruise, can setting the presets' residence time
Other Scan	4 groups, support horizontal scan, deuce area scan, scan random
Rotation Range	Horizontal 360° unlimited rotation, Vertical 180° , auto reversal
Rotation Speed	Horizontal & Vertical Min 0.01° /s, Max 300° /s
Camera protocols	supported SONY or CNB
Communications	RS485, PELCO D, PELCO P
Baud Rate	2400/4800/9600/19200
Dome address	255
Camera menu	8 languages
OSD	Whole screen Chinese/English menu
Special function	AWB, MASK, DNR, Strong light inhibition, Mirror
Power Supply	AC24V/3A, DC12V/4A
Material	Aluminum shell
Work Environment	-20 Celsius degree ~+50 Celsius degree (select temperature control accessories), < 95%RH
