ATV Winch with Synthetic Rope

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$95.0 - $105.0 / Piece

Min. Order (Pieces)	Unit Price
100.0	US $ 105/ Piece
500.0	US $ 95/ Piece

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From Apr 07, 2015 To Jul 07, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:X4500LS

Type:Electric Winch

Power Type:Permanent-magnet DC

Pull Direction:4-Way

Brand:Zhme

Applicable Environment:Beach

Certification:CE

Finshing:Black Texture

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Carton Box, Pallets

Standard:CE

Origin:Ningbo, China

HS Code:84253190

Production Capacity:6000 PCS /Month

Product Description

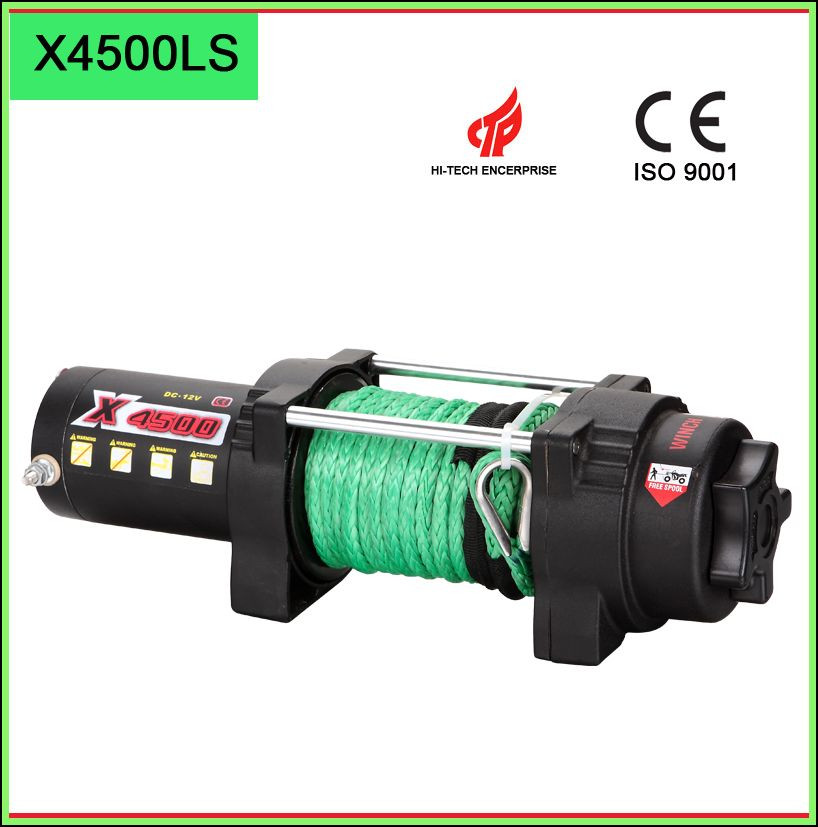

UTV winch X 4500LS

Rated ling pull: 4500lbs ( 2041kgs ) single line.
Motor: Permanent magnetic motor 1.8hp/1.3kw DC12V
Gear Train: 3 stage planetary
Gear ratio: 198: 1
Clutch: Sliding Ring Gear
Braking Action: Automatic in the drum
Fairlead: Aluminum Hawse fairlead
Rope: Synthetic rope 6.3mm * 15m
Drum size: 50mm X 119.5mm
Dimensions: 391mm X 114mm X 120mm
Mounting bolt pattern: 124mm X 76mm
N. W.: 165lbs (7.4kgs)
Packing: 480mm X 250mm X 220mm ( 800 pcs per 20' container )

Additional Information
