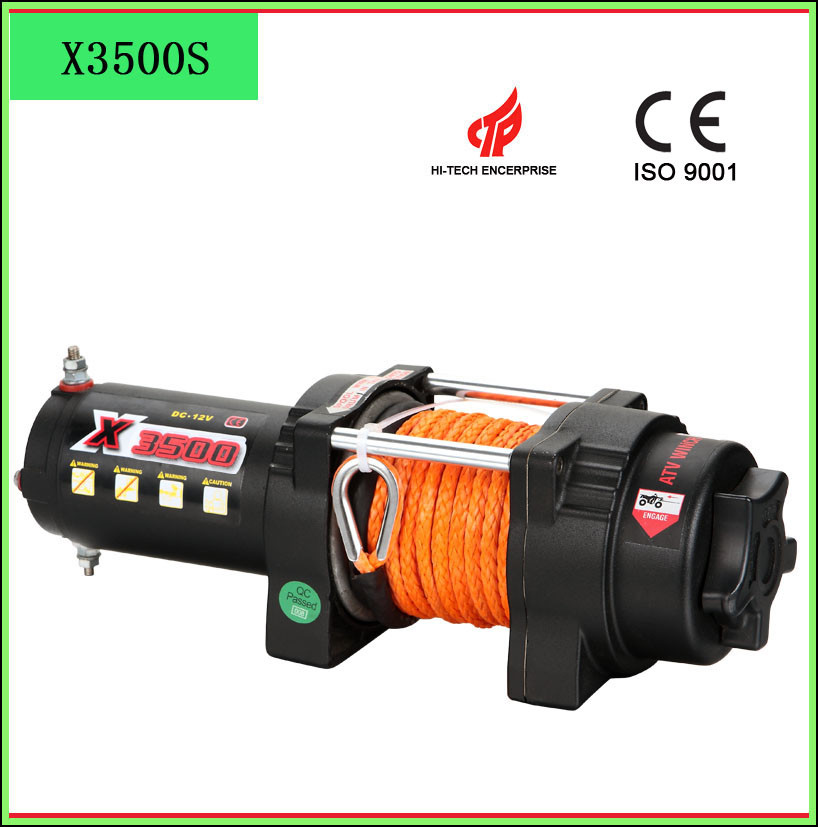

ATV Winch/Electric Winch/ Dsm Rope Winch

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:100 Pieces

Trade Terms:FOB, CFR, CIF, EXW

Payment Terms:L/C, T/T, D/P

Trademark:ZHME(can be OEM)

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:X3500S

Type:Electric Winch

Power Type:Permanent-magnet DC

Electric Winch Model:ATV

Working Voltage of Electric Winch:Low Voltage

Brand:Zhme

Certification:CE

Rated Line Pull:3500lbs(Kgs) Sinle Line

Export Markets:Global

Additional Info.

Trademark:ZHME(can be OEM)

Packing:Netural Packages

Standard:CE

Origin:China

HS Code:84253190

Production Capacity:5000 PCS Per Month

Product Description

Synthetic Rope Winches for ATV/UTV.

1. Brake system: Fully independent and automatic braking ensures safety and reliablity.
2. Water reasistance: Proven design for reasistance to severe environmental conditions
3. Motor: Low current and high efficiency minimize battery drain.

Rated line pull: 3500lbs(1587kgs) single line
Motor: Permanent Magnetic motor (1.5HP)/1.0kw DC12V
Gear Train: 3 stage planetary
Gear ratio: 198: 1
Clutch: Sliding Ring gear
Braking action: Automatic in the drum
Fairlead: Aluminum hawse fairlead for synthetic rope
Synthetic rope: Ø 5.5mm × 10m
Drum size: 50mmx76.5mm
Dimensions: 334mmX114mmX120mm
Mounting bolt
Pattern: 124mmX76mm
N. W: 17.6LBS(8.0KGS)
Packing: 440mmX250mmX220mm(per carton)
1000PCS per 20' container

Line speed and motor current(first layer)
Line pull	lbs	0	1000	2000	3000	3500
Line pull	kgs	0	454	907	1360	1589
Line speed	FPM	16	10.5	9.2	7.2	5.9
Line speed	MPM	4.9	3.2	2.8	2.2	1.8
Motor current	Amps	15	70	105	135	150

Line speed and cablecapacity
Layer of cable		1	2	3	4
Rated line pull per layer	lbs	3500	2870	2430	2100
Rated line pull per layer	kgs	1598	1300	1100	950
Cable capacity per layer	Ft.	6.9	15.1	2409	36.4
Cable capacity per layer	M	2.1	4.6	7.6	10
