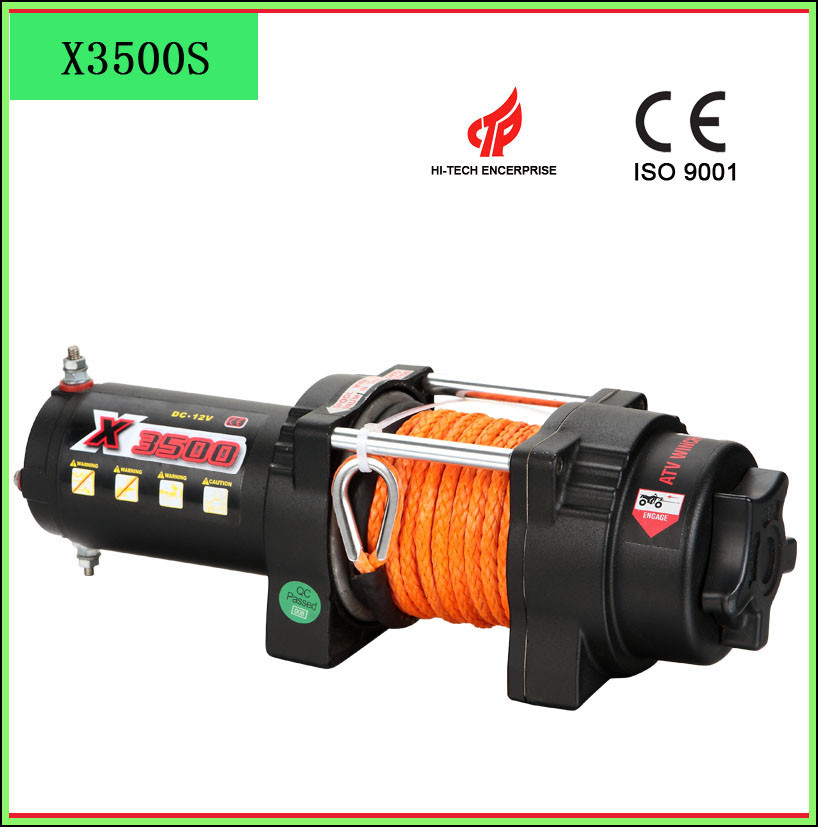

ATV/UTV Winch X3500s

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
50.0	US $ 70.0-85.0/ Piece

Price:$70.0 - $85.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Sep 06, 2014 To Dec 06, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:X3500S

Type:Electric Winch

Certification:CE

Rated Line Pull:3500lbs

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:1 PC / CTN

Standard:CE, ROHS, ISO9001

Origin:China

HS Code:84253190

Production Capacity:200000

Product Description

Specifications

    Rated line pull:    3500lbs(1587kgs) single line
    Motor:    Permanent Magnetic motor (1.5hp)/1.0kw DC12v
    Gear Train:    3 stage planetary
    Gear ratio:    198:1
    Clutch:    Sliding Ring gear
    Braking action:    Automatic in the drum
    Fairlead:    Aluminum hawse fairlead for synthetic rope
    Synthetic rope:    Ø5.5mm ×10m
    Drum size:    50mmx76.5mm
    Dimensions:    334mmX114mmX120mm
    Mounting bolt
    pattern:    124mmX76mm
    N.W:    17.6LBS(8.0KGS)
    Packing:    440mmX250mmX220mm(per carton)
    1000pcs per 20' container

Line speed and motor current (first layer)
Line pull	Lbs	0	1000	2000	3000	3500
Line pull	Kgs	0	454	907	1360	1589
Line speed	FPM	16	10.5	9.2	7.2	5.9
Line speed	MPM	4.9	3.2	2.8	2.2	1.8
Motor current	Amps	15	70	105	135	150

Line pull and cable capacity
Layer of cable		1	2	3	4
Rated line pull per layer	Lbs	3500	2870	2430	2100
Rated line pull per layer	Kgs	1598	1300	1100	950
Cable capacity per layer	Ft	6.9	15.1	24.9	36.4
Cable capacity per layer	M	2.1	4.6	7.6	10
