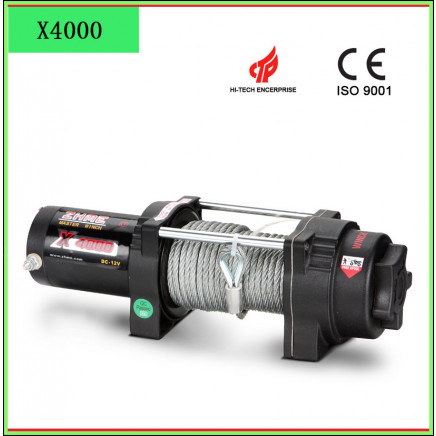

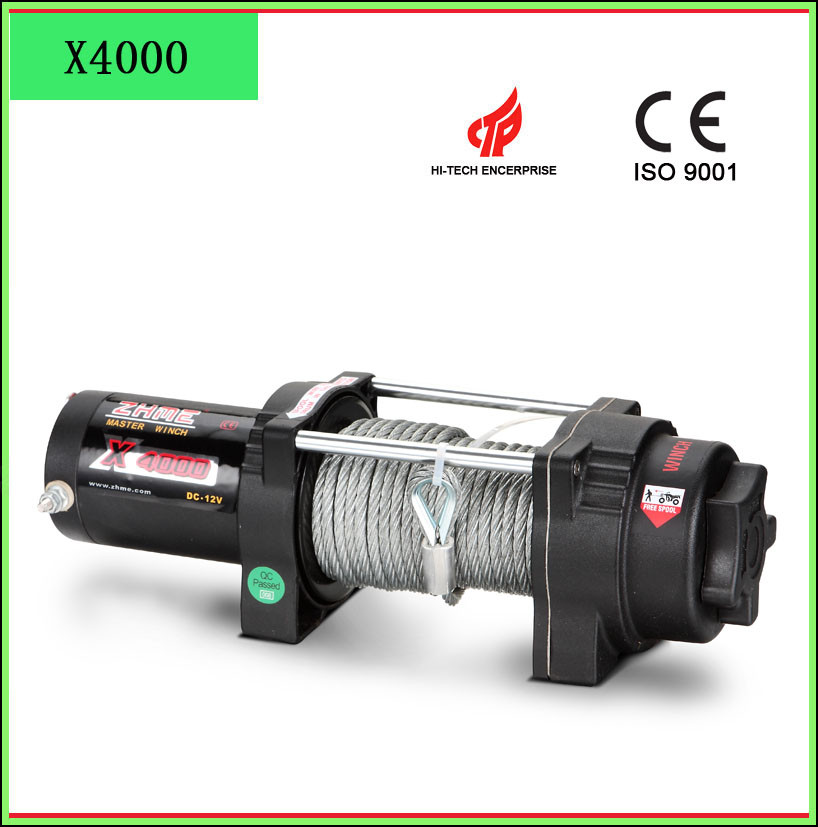

ATV / UTV /12V Winch / 4000lbs Winch

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:100 Pieces

Trade Terms:FOB, CFR, CIF, CIP, CPT, EXW

Payment Terms:L/C, T/T, D/P, Western Union

Trademark:ZHME(can be OEM)

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:X4000

Type:Electric Winch

Power Type:Permanent-magnet DC

Pull Direction:Forward

Electric Winch Model:ATV

Working Voltage of Electric Winch:12V

Brand:Zhme

Applicable Environment:Snow

Certification:GS, CE, RoHS

Rated Line Pull:4000lbs

Export Markets:Global

Additional Info.

Trademark:ZHME(can be OEM)

Packing:Netural Packages

Standard:CE, RoHs, ISO9001

Origin:China

HS Code:84253190

Production Capacity:100000PCS Per Year

Product Description

Specifications
Rated line pull: 4000lbs(1818kgs) single line
Motor: Permanent Magnetic motor (1.6HP)/1.2kw DC12V
Gear Train: 3 stage planetary
Gear ratio: 198: 1
Clutch: Sliding Ring gear
Braking action: Automatic in the drum
Fairlead: Aluminum hawse fairlead for synthetic rope
Wire rope: Ø 6.2mm × 10m
Drum size: 50mmx76.5mm
Dimensions: 348mmX114mmX120mm
Mounting bolt
Pattern: 124mmX76mm
N. W: 19LBS(8.6KGS)
Packing: 440mmX250mmX220mm(per carton)
1000PCS per 20' container

Line speed and motor current (first layer)
Line pull	Lbs	0	1000	2000	3000	4000
Line pull	Kgs	0	454	907	1360	1816
Line speed	FPM	16	10.5	9.2	7.2	4.9
Line speed	MPM	4.9	3.2	2.8	2.2	1.5
Motor current	Amps	15	70	105	135	180

Line pull and cable capacity
Layer of cable		1	2	3	4
Rated line pull per layer	Lbs	4000	3225	2700	2325
Rated line pull per layer	Kgs	1816	1460	1225	1055
Cable capacity per layer	Ft	6.6	14.1	23.6	39
Cable capacity per layer	M	2	4.3	7.2	12
