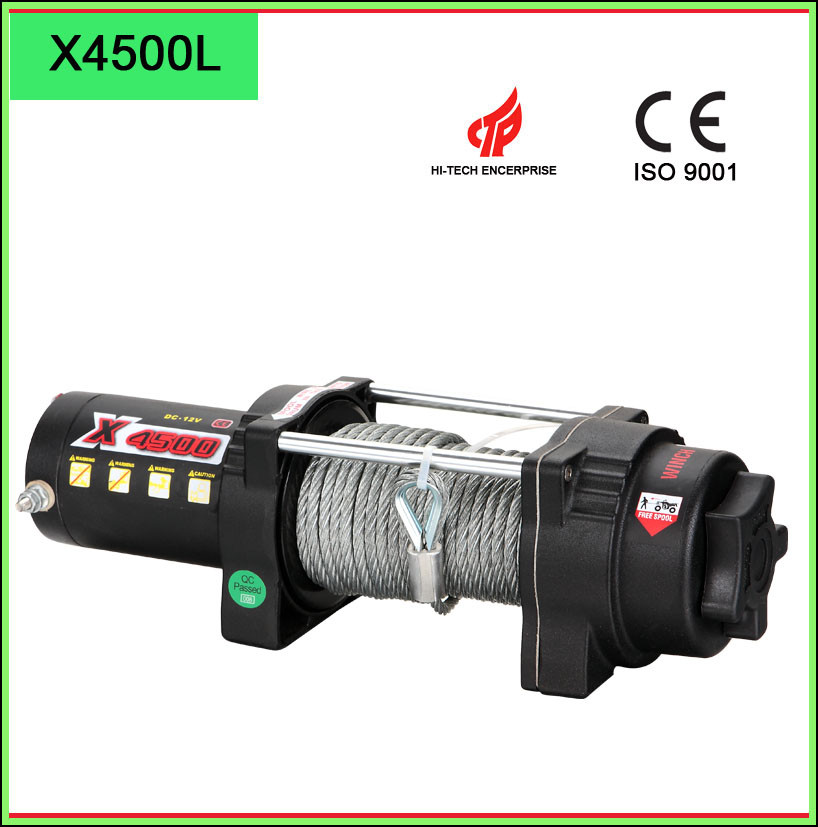

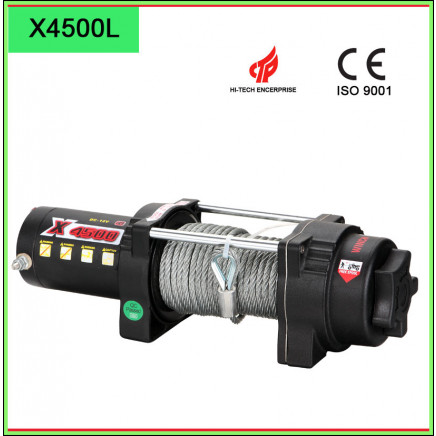

ATV Electric Winch with 4500lbs Pulling Capacity

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$95.0 - $105.0 / Piece

Min. Order (Pieces)	Unit Price
100.0	US $ 105/ Piece
1000.0	US $ 95/ Piece

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From Jun 13, 2015 To Jul 07, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:X4500L

Type:Electric Winch

Power Type:Permanent-magnet DC

Pull Direction:4-Way

Working Voltage of Electric Winch:Low Voltage

Brand:Zhme

Applicable Environment:Mountain Road

Certification:CE

Finishing:Black Texture

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Carton Box, Pallets

Standard:CE

Origin:Ningbo, China

HS Code:84253190

Production Capacity:6000 PCS /Month

Product Description

ATV ELECTRIC WINCH WITH 4500LBS PULLING CAPACITY

Rated ling pull: 4500lbs ( 2041kgs ) single line.
Motor: Permanent magnetic motor 1.8hp/1.3kw DC12V
Gear Train: 3 stage planetary
Gear ratio: 198: 1
Clutch: Sliding Ring Gear
Braking Action: Automatic in the drum
Fairlead: 4-Way roller fairlead
Wire Rope: 6.3mm * 15m
Drum size: 50mm X 119.5mm
Dimensions: 391mm X 114mm X 120mm
Mounting bolt pattern: 124mm X 76mm
N. W.: 165lbs (7.4kgs)
Packing: 480mm X 250mm X 220mm ( 800 pcs per 20' container )

	PERFORMANCE
Line speed and motor current (first layer)	Line pull	Lbs	0	1000	2000	3000	4500
	Line pull	Kgs	0	454	907	1360	2041
	Line speed	FPM	16	10.5	9.2	7.2	3.9
	Line speed	MPM	4.9	3.2	2.8	2.2	1.2
	Motor current	Amps	17	70	105	135	210


Line pull and cable capacity	Layer of cable		1	2	3	4
	Rated line pull per layer	Lbs	4500	3625	3010	2596
	Rated line pull per layer	Kgs	2041	1648	1368	1180
	Cable capacity per layer	Ft.	12.5	26.9	43.3	49
	Cable capacity per layer	M	3.8	8.2	13.2	15
