Asme Standard LPG Storage Liquefied Petroleum Gas Trailer

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Asme Standard LPG Storage Liquefied Petroleum Gas Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 34500.0-39800.0/ Piece

Price:$34500.0 - $39800.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From May 28, 2015 To Jul 16, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW Liquefied Petroleum Gas Trailer

Type:Towing Pin

Load Capacity:25T

Certification:ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949, SGS

Wheel Base:6865+1310+1310

Tread:1820mm

Grade:Heavy Duty

Towing Pin Material:Carbon Steel

Impeller Type:Front Semi-open Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:90mm

Differential Gear Type:Gear Type

Independent Suspension Type:Cross Arm Type

Connecting Type:Semi-trailer

Shape:Cylinder

Axle Number:3

Tire Number:12

Self-dumping:Self-dumping

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Steel

Condition:New

Volume:30 35 40 45 56cbm 3 Axles LPG Tank Tralier

Tanker Material:Q345/370r Carbon Steel, Stainless Steel, Alloy Ste

Suspension:Air Suspension or Mechanical Suspensio

Feathers:Anti-Corrosion, Anti-Acid, Anti-Rusty

Description:LPG Tank Trailer, LPG Semi Trailer, LPG Trailer

Thickness:11.5mm for Both Tanker Body and End Plate

Alxe Brand:Bpm Fuwa or L1 for LPG Trailer with 3 Axles

Full Passed:CCC, Asme, ISO, SGS, BV, Son Cap

Loading Material:LPG, Propane, Gas or 3 Axles LPG Tank Trailer

Tanker Type:LPG Trailer LPG Storage Tank LPG Truck Container

Export Markets:Global

Additional Info.

Trademark:CLW

Packing:Bulk, RO-RO, Container, Naked Waxed LPG Trailer

Standard:CCC, ASME, ISO, SGS, BV, SON CAP

Origin:Hubei, China

HS Code:8716319000

Production Capacity:10000set

Product Description

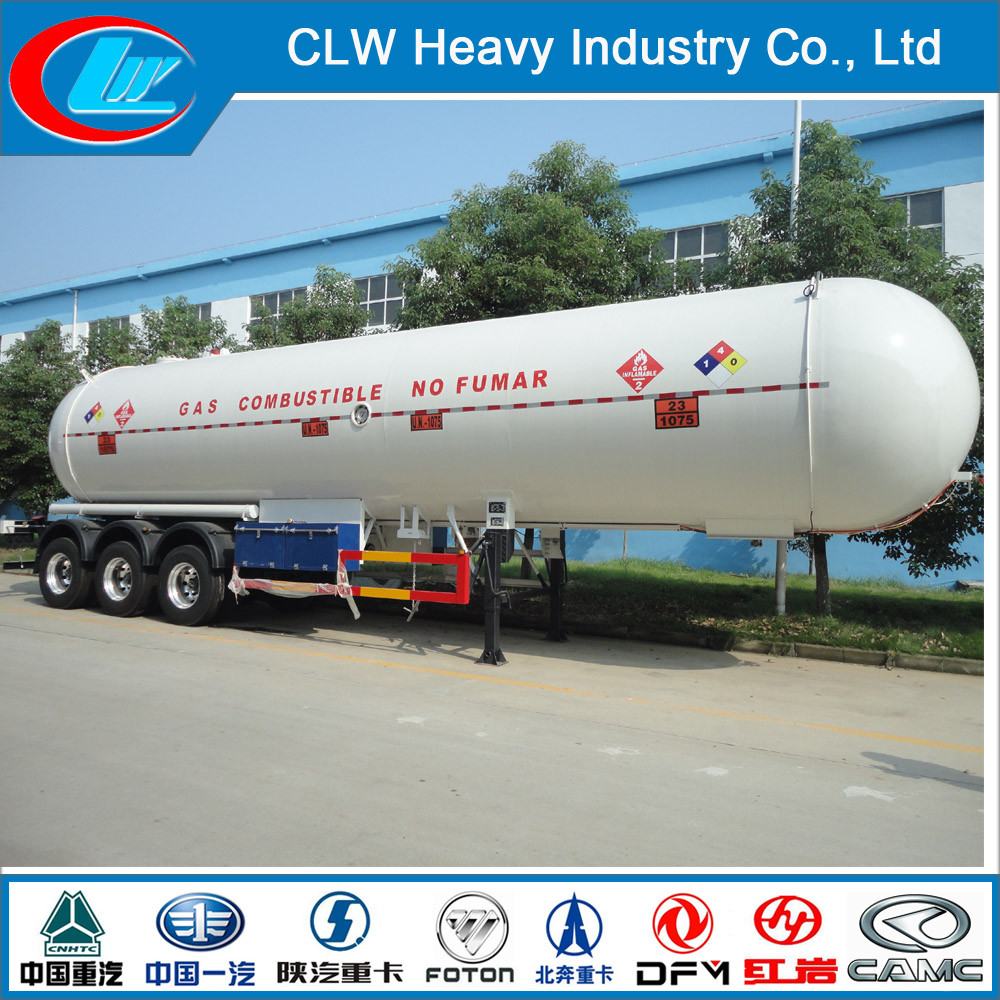

ASME Standard LPG storage Liquefied Petroleum Gas Trailer

We provide LPG semi trailer from 23.97m3 to 59.6m3.low transport costs, more profit.
We also provide LPG storage tank volume from 5m3 to 120m3.both ground and underground.
We provide LPG transporation truck from 5.5m3 to 35.5m3.

Any comments please contact with Yuki +86-18858011948
Product Information:

Item		Unit	Parameters
Product name			LPG Tank Semi-trailer(CLW9390GYQ)
Fact Volume		M3	56
Loading capacity		kg	23520
GVW			39000
Curb weight			15480
Overall dimensions		mm	12700�2500�3975
Number of axles			3
Wheel base			6865+1310+1310
Front Tread			-
Rear Tread			1840/1840/1840
F/R overhang			-/1550
Approach/Departure angle		�	-/20
The quality of the maximum allowable bearing saddle		kg	15800
Axle Load		kg	-/23000(3 axles)
Tire specification			12R22.5 12PR
Special configuration	Tank material	Q370R
	Standard configuration	Single fluid, double side loading and unloading, double valve box, double toolbox, relief valve, thermometer, pressure gauge, emergency shut-off valve, 13 tons BPW axle,12 pieces tubeless tire ,JOST leg, JOST drawing pin, fire bottle, anti-static adhesive tape, plastic fender,Anti-lock Braking System.
	Others	Filling medium: LPG propane; Design pressure 1.61 Mpa, the design temperature of 50 �C, filling ratio: 0.42 t/m3, corrosion allowance: 1 mm; The shape of tank size: 245011.512340mm
	Manufacturing standards	GB150 "pressure vessel" and "the transportable pressure vessel safety technology supervision regulation".

ASME Standard LPG storage Liquefied Petroleum Gas Trailer

Product features

1. The anticorrosion coating of liquefied gas semi-trailer adopt the following process: sandblast,spray painting,purging and so on.
2. There are domestic or imported safety accessories with high quality, its matching is complete.
3. We adopt scientific advanced construction process strictly, ensure that the products are with the lowest shrinkage and the highest dimensional stability at low temperature.
4. We inspect the quality of product strictly,ensure that A and B type of welding seam pass the examination
of level two radiographic test, C and D type of welding seam pass the examination of level one radiographic test.
