API 6A Welding Demco Mud Gate Valve

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
10.0	US $ 10.0-1000.0/ Piece

Price:$10.0 - $1000.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, D/P, Western Union

Price Valid Time:From Mar 07, 2015 To Apr 20, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:3 inch, 4 inch

Type:Direct-acting

Material:Stainless Steel

Connection Form:Flanged, Threaded, Welded

Pressure:High Pressure

Actuator:Manual

Seal Surface:Parallel Gate Valve

Thread Position of Valve Rod:Outside Gate Valve

Usage:Flow Control

Standard:API

Application:Industrial Usage

Structure:Gate

Temperature of Media:Normal Temperature

Media:Mud

Port Size:2"-5"

Export Markets:Global

Additional Info.

Trademark:HBSH

Packing:Wooden Case or as Your Requirement

Origin:Hebei, China(Mainland)

HS Code:8481804090

Product Description

Specifications

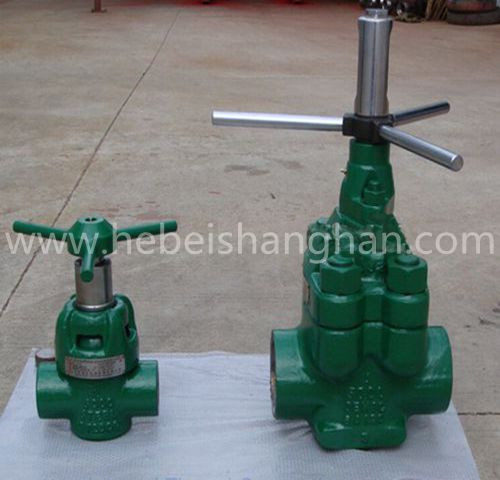

API 6A Welding Demco Mud Gate Valve
1. API certification, PR1~2, PSL1~3,
2. DN2"~5"( DN50~DN100)
3. 2000psi-20000psi

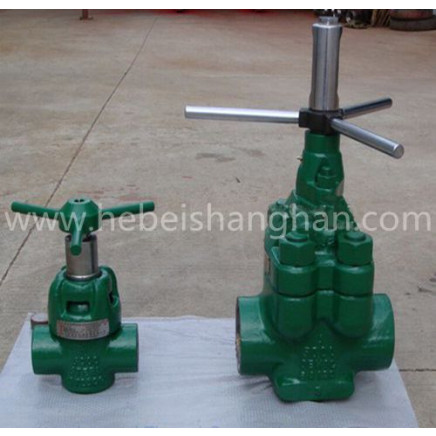

API 6A Welding Demco Mud Gate Valve

Brief Introduction
1.The Mud Gate Valve,with superior design features precision workmanship and a proven priciple are engineered to meet the harsh drilling requirements in today's oilfield.

2.The Valve conforms to the standard flange dimensions and pressure rating of 3000 and 5000 PSI working pressure,the nominal size is 2",3",4",4"×5",and temperature service up to 400 F.

3.The Valve standard trim includes 316SS Gates 316SS Stems and Buna N seats,optional trims are available which include Ni Plated Carbon Steel,Monel and Aluminum Bronze gates.Seats are offered in Viton and Hypalon and optional 303SS Stem is available.

Construction
All the Valves conforms to API flange dimensions in all pressure class ratings.The valves have rising stems that are driven by a double threaded hub for quick opening and closing with minimum torque.The permanently lubricated stems and stem screws are fully sealed,which get high and low pressure sealing through support ring.
