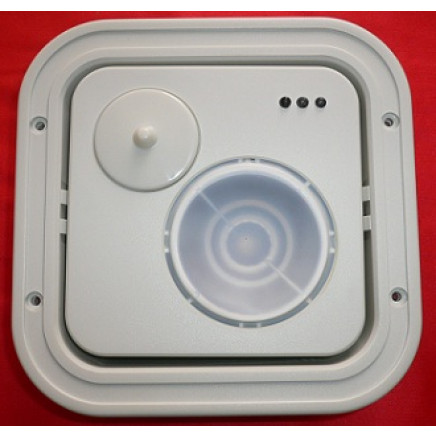

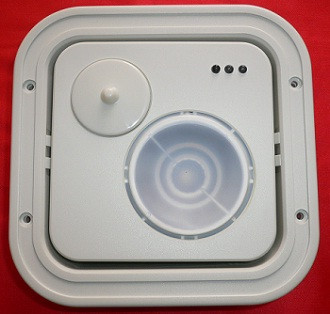

Anti-Masking Dual PIR &Micrwave Intelligence Detector (DT6360STC)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:20 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T, Paypal, Western Union

Trademark:HONEYWELL

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DT6360STC

Usage:Anti-theft

Application:Home

Pet Immunity:30kg

Anti-Maskin Distance:10-15cm

Detecting Distance:18m

View Angle:360°

Export Markets:Global

Additional Info.

Trademark:HONEYWELL

Packing:CTN

Origin:China

Production Capacity:10000PCS/Month

Product Description

Description:
Microwave Advanced Processing (MAP)
Incoming microwave and PIR signals are constantly monitored and individually qualified for intrusion characteristics. The timing and sequence of each of these signals must be qualified by MAP settings to specific environments, allowing for optimum catch performance and false alarm immunity.

Features:
1. Microwave/PIR Technology. The use of dual technology provides the best detection available while virtually eliminating false alarms and costly service calls.
2. Built-in Diagnostics and Supervision. Allows trouble conditions to be quickly identified, diagnosed and corrected.
3. Ceiling Mount Design. 360° Field-of-view, mounting height from 8' to 16' (2.4m to 4.9m), install as recessed or surface mount.
4. Microcontroller-initiated Self-tests. Microcontroller automatically initiates self-tests at power-up, trouble conditions and programmed intervals.
5. Trouble Output. After a trouble is confirmed with a self-test, the trouble output can be used to annunciate the trouble condition.
6. Full Supervision Microwave/PIR. Patented INFORMER® Circuit constantly monitors microwave and PIR against blockage and misapplication. Independent circuit supervises both microwave and PIR against failure; At a loss of signal, microcontroller initiates self-test and unit switches automatically to single technology operation.
7. Mounting. Surface or flush mount on ceilings (flush mount kit included); Maximum standard range obtained at 11' (3.4m). PIR mirror assembly included for installation on 12' to 16' (3.7m to 4.9m) ceilings.

Name:	anti-masking Dual PIR &Micrwave Intelligence Detector (DT6360STC)
Model:	Honewell DT6360STC
Physical Dimensions	White, high impact, ABS plastic
housing	5" H x 5" W x 2.3" D(12.7cm x 12.7cm x 5.8cm)
Weight:	14 oz (397 g)
Power Requirements	10 – 14.5VDC,40mA, 12VDC typical
Trouble Output	Open collector: voltage between collector and emitter (Vce) is 0.3V@ 50mA
Alarm Relay	Energized Form C: (N.O./N.C.)reed relay rated 125mA at 25VDC
PIR White Light Immunity	900 LUX
Detection Range	50' (15m) diameter, 25' (7.6m) radius
Microwave Frequencies	10.525 GHz
