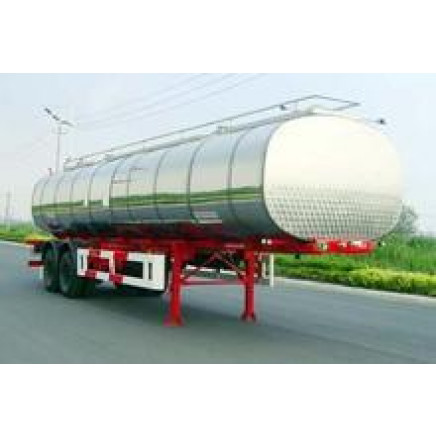

Aluminum Alloy Oil Tanker Semi Trailers with Private Label

More Views

Aluminum Alloy Oil Tanker Semi Trailers with Private Label

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 46500/ Piece

Price:US $46500.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Trademark: jupiter

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FTW9400GYY

Type:Towing Pin

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Trailing Arm Type

Colour:as Your Requirements

Use:Storage Oil

Custom Made:Available

Private Lable:Avaiable

Export Markets:North America, South America, Southeast Asia, Africa, Oceania, Mid East

Additional Info.

Trademark:jupiter

Packing:Nude or as Customer?s Requirement

Standard:ISO90001

Origin:China

HS Code:87163910

Production Capacity:1000 PCS Per Year

Product Description

Trailer/semi trailer
This Oil tanker semi trailers is applied to transport OIL, FUEL, DIESEL, WATER AND ALL KINDS OF LIQUEFIED CHEMICALS in a short or long distance. It's an ideal equipment to transport oil from oil storage field to oil plant, and transfer oil from refinery and wharf to oil storage field. It is also been used in refueling service station.

No. Name Remarks
1 Total size L12000× W2800× H3800
2 Tare weight 7500 KGS+5%expension
3 Payload 40 ton
4 Tank body Volume: 5 CBM to 60 CBM, shell thick 5mm, end thick 5mm baffles 4mm, compartments make according to customer's requirement. Top access Steel ladder and foldable handrail; Walkway with anti-slip material coveringthe complete length of the tank;
5 Painting Wax whole trailer, polyurethane, color according to customer's requirement
6 Axles 10T, 13T, 14T, 15T, 16T, 20T BPW, FUWA, LITAI^...Are available for choose

7 Wheel rim Zhengxing brand
8 Tyre Double star, hancook, double corn, yellowsea and all kinds of brand are available for choose
9 Leaf spring 90width*10 pieces*13thickness
10 Kingpin 3.5"(90#) or 2.0"(50#)
11 Landing legs Two speed landing gear
12 Suspension Jupite machanical type
13 Air tank jupite
14 Brake chamber T3030 and T30 are available
15 Air connector one units reliable local brand stander air connector
16 Relay valve WABCO valve
17 7-pin socket one unit of 24V 7-pin socket
18 Lamb tail lamb with turn signal, brake light^including a whole set of stander lamb
19 Cable one set of stander cable
20 Tool box
21 Fire extiguishers 2 units;
22 Wheel carrier
The above trailer is just one of our products, we producing according to customer's requirements.
As the requirements of the customers in different countries are different, we can design for our customer's special need. Please don't hesitate to contact me if you have any inquiry! !

Cubage(CBM)	13-16
Parameters	Overall dimension length/width/height (mm)	8050×2480×2950
	Total Mass(kg)	14500
	Payload(kg)	7000
	Kerb Mass(kg)	7350
	Approach angle/ Departure angle(mm)	16/15
	Front suspension/rear suspension(mm)	1245/2305
	Fuel Type	diesel
	Fuel Consumption/100 km
	Max Speed	85
Engine	Type	EQB180-20 Commins six-cylinder inner-cooling supercharged diesel engine
	Displacement/Power(kw)	5883/132kw(180hp)
	Manufacturer	Dongfeng Cummins Engine Co.,Ltd
	Type	Water-cooling 6-in line, four-stroke supercharged diesel engine
Chassis	Drive type	4×2
	Wheelbase(mm)	4500
	Tread(front/rear)	1940 / 1860
	Front axle	5T
	Rear axle	10T
	Steering gear	Duel-armed steering wheel, power steering
	Transmission	6 gear mechanical drive transmission
	Clutch	Diaphragm clutch, hydraulic remote control, pneumatic servo
	Braking system	Split air braking system,pneumatic servo,drum brake
	Cab	Non-longheaded, one and a half row cab,whole metal-enclosed
	Number of spring axle(front/rear)
	Tire Type
	Air-condition	Choose to fix
