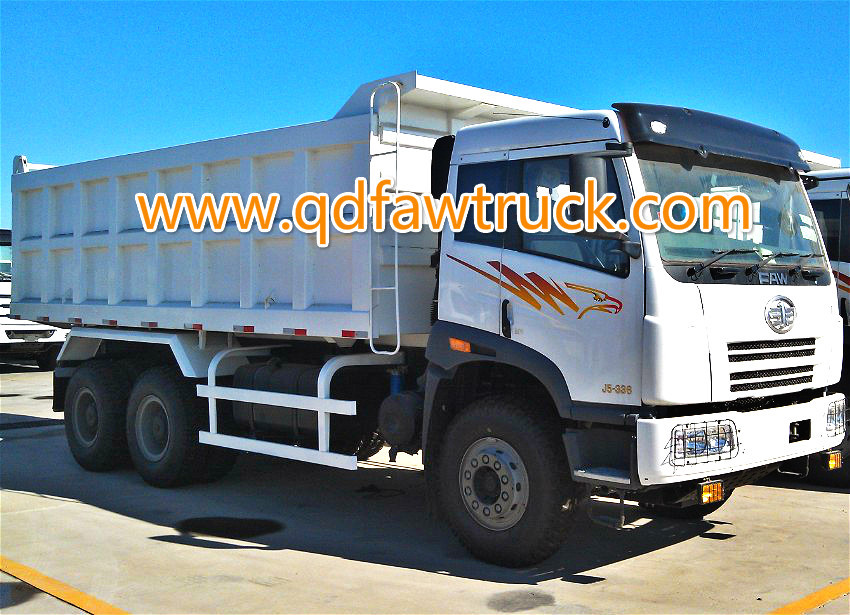

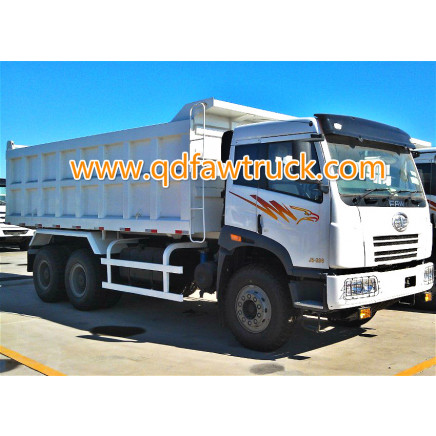

Africa Hot Sale! J5 Faw Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (set)	Unit Price
1.0	US $ 35000.0-49900.0/

Price:$35000.0 - $49900.0 / set

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From May 05, 2015 To May 31, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CA325

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 3

Drive Wheel:6×4

Engine Capacity:?8L

Seats:?5

Horsepower:251-350hp

Tire Type:Inner Tube

Tire Certification:ECE, ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Truck Type:Dump Truck

Type:Tipper

Brand:Faw

Driving:6X4

Steering:LHD, Rhd

Capacity:20-30tons

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:FAW

Packing:Nude Packing

Standard:ISO

Origin:China

HS Code:87042300

Production Capacity:300 PCS/ Month

Product Description

Africa hot sale! J5 FAW dump truck

CA3253P7K2T1A faw dump truck, dump truck, dump truck FAW, Faw Dumping Truck, Rhd Dump Truck, Rhd Faw Dump Truck, 10 Wheel Tipper Truck, 10 Wheels Dump Truck, Dumper Truck, Dumper, Tipper Truck, Mining Dump Trucks, Truck, 10 Wheel Dump Truck, 10 Wheel Tipper, 10 Wheeler Truck, 10 Wheel Faw Dump Truck
Overall dimensions Length: 8393mm
Width: 2500mm
Height: 3280, 3530mm
Axle base (full load): 3825+1350,
Front overhang(loaded): 1493/ 1493
Rear overhang(loaded): 725 /890.

Wheel base Front wheel: 1939, 2020
Rear wheel: 1840/1840

Ground clearance(loaded) Under front axle: 285
Under rear axle: 290
Passing angle(loaded) Approach angle: 25/25
Departure angle: 30/27

Mass
Parameter Curb weight (kg): 12080, 12400
Gross truck weight: 25000
Payload weight(kg): 12725, 12470

ENGINE: WD615.50, WD615.46, WP10.380E32, WP10.340E32
TRANSMISSION: CA10T, FULLER 9JS135,12JS160T
REAR AXLE: LB300
TIRE: 12.00R20
Cargo box dimension: 5400/5600/6000X2300X1500
Color: Red

LOADING CAPACITY: 20T/25T/30T/35T/40T

TRUCK SPECS	Overall d imension:		8000x2496x3450mm(26.25x8.19x11.32ft)/ 8545X2496X3170mm(28.04x8.19x10.40ft)/ 8675x2496x3450mm(28.46x8.19x11.32ft)/ 8845x2496x3450mm(29.02x8.19x11.32ft)
	Cabin	Cabin size:	standard cabin(2 seats)/ long cabin(2 seats and 1 bed)/ high cabin(2 seats and 2 bed)
		Seats and sleeper Bed:	2 seats/ 2 seats and 1 bed/ 2 seats and 2 bed
		Air conditioner:	standard
	Engine	Horsepower(hp):	280 320 340 380
		Tech:	steyr tech
		Engine Type:	6-cylinder in line, 4-stroke, water-cooled,turbocharged, intercooled
		Emission Standard:	EUR 2
		Fuel Type:	Diesel
		Engine Capacity(ml):	9726
	Gear Box/Transmission		10 speeds and 1 reverse speed
	Clutch		?430
	Axles	Front Axles:	9T
	Axles	Driving Axles:	2x16T
	Tyre:		12.00-20,10 Radial tires with one spare tire/ 12.00R20,10 Radial tires with one spare tire
	Max speed:		75/80/85km/h
	Tare weight(MT):		12MT
BODY SPECS	Body Dimensions (LengthXWidthXHeight):		5400X2300X1500mm(17.72x7.55x4.92ft)/ 5600x2300x1500mm(18.37x7.55x4.92ft)/ 5800x2300x1500mm(19.03x7.55x4.92ft)/ 6000X2300X1500mm(19.70x7.55x4.92ft)
	Material:		Q235
	Body steel (mm):		floor 8mm(0.32in),side 6mm(0.24in)
	Cpacibility(M3):		20CBM 22CBM 25CBM 30CBM
	Lift System:		hydraulic system with power assistance
	Wheel base:		3825+1350mm(12.55x4.43ft)
	Track Width(front/rear):		2041/1830mm(7.91x6ft)
	Overhang(front/rear):		1500/1870mm(7.55x6.14ft)
	Approach/Departure Angle:		19°/23°
