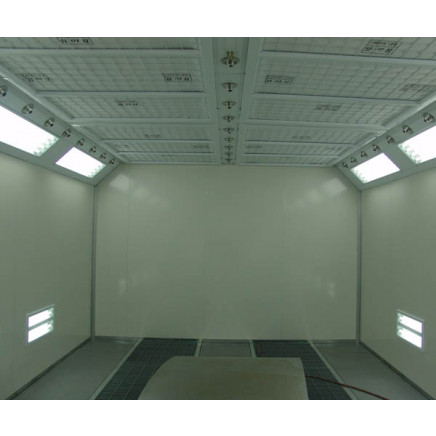

9m EPS Industrial Heat Spray and Baking Booth, Room

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Set

Trade Terms:FOB, CFR, CIF, DAT, CIP, EXW

Payment Terms:L/C, T/T, D/P, Paypal, Money Gram, Western Union

Trademark:OEM/Captain

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CPYE9275

Type:Air Spray Equipment

Application:Hardware Spraying Equipment, Wood Spraying Equipment, Plastic Spraying Equipment, Porcelain Spraying Equipment

Method Type:Automatic

Export Markets:Global

Additional Info.

Trademark:OEM/Captain

Packing:Export Container /Pallet /Disassembly with Carto

Product Description

M Emergency Stop Energy Saving Insulation EPS Industrial Heat Spray And Baking Booth, Room

Tag: Water Spray Booth, Spray Bake Paint Booth

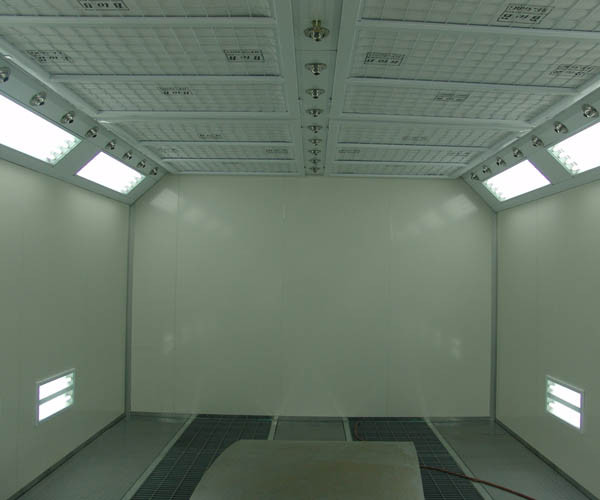

9m EPS Industrial Heat Spray and Baking Booth, Room

Booth Dimension
- Internal Size(L�B�H)		9200x4500x3500mm
- External Size(L�B�H)		9344x6396x4100mm
Foundation and Floor
- Grid		2 rows air exhust plenum chamber
- Metal Basement		Need to build the base construction , 2 rows of pits in the ground for exhaust air, with galvanized grids made by twisted steel and flat bar above
Wall and Door
- Steel Wall		Double construction with insulationsEPS , thickness 75mm, 0.5mm steel thickness ; width:950mm, tongue and groove interlock structure, with Polystyrene(EPS) insulation inside
- 3-Folded Entrance Door With Safety Glass Window		1 Unit, 3500�3400 mm(WxH) , galvanized steel cover frame, with polystyrene(EPS) insulation inside
- Operator�s Door With Safety Glass Window		1Unit, 650�2000 mm(W�H)
Lighting System
- Ceiling Lights		12Units, each 4�36 W, with electronic ballasts.
- Side Lights		12Units, each 2�30W, with electronic ballasts.
- Brightness		>1000LUX
Filter System
- Filter	31M2
Ventilation System
- Intake air system (Fresh Air)			2x5.5KW double-intake centrifugal fans for intake air, model is YDW4.5M, total air capacity is 30000m3/h
- Exhaust air system(Exhaust Air)			1x7.5KW double-intake centrifugal fans for exhaust air, external motor, belt-drive, model TAE-710H, air capacity is 20000m3/h
- Damper actuates			Manual damper actuates from spraying to baking cycle, manual damper for exhaust air
Heating System
- Heating Exchange			Stainless Steel
- Heating Exchange Capacity			260000Kcal/h
- Max. Drying Temperature			80 �C
- Heating time			10-15 min (from 20 to 60) by Drying Phase
- Heating Type (optional)			RIELLO RG5S (260000 kcal/h)Diesel )1set
Control Box
- Control system			Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hour meter, temperature limit controller, pressure gauge, exhaust reduction voltage motor start
- Total power			22KW
