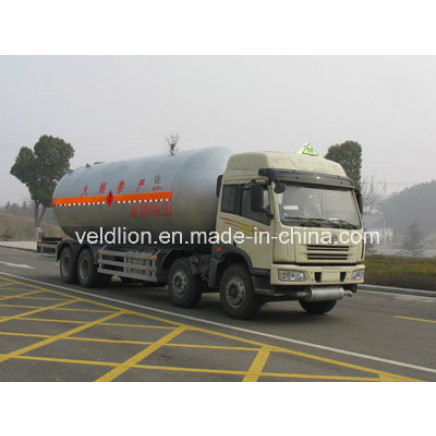

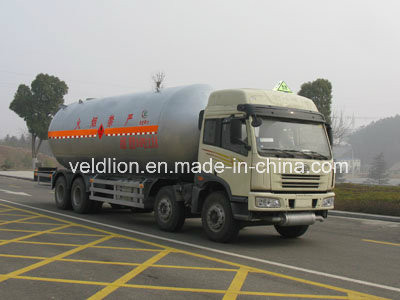

8X4 Drive Chemical Liquid Tank Truck for Sale

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

8X4 Drive Chemical Liquid Tank Truck for Sale

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
1.0	US $ 36500/ Piece

Price:US $36500.0 / Piece

Trade Terms: FOB, CIF, DAP

Payment Terms: L/C, T/T, Paypal

Price Valid Time:From Jun 08, 2015 To Sep 08, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VL5311GYQ

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 2

Tank Volume:?30000L

Drive Wheel:8в4

Seats:?5

Horsepower:251-350hp

Engine Capacity:6-8L

Storage:Chemical

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Condition:New

Color:White

Fuel:Diesel

Certification:ISO9000, CCC, EPA

Engine Type:4 Stroke

Volume:>30000L

Type:LPG Tanker

Payload:30t

Export Markets:Global

Additional Info.

Trademark:VELDLION

Packing:in Bulk or in Container, Wax Polished

Standard:CE, ISO9001: 2000

Origin:China

HS Code:8706002200

Production Capacity:300 PCS Per Month

Product Description

"LPG tank truck"
1. The biggest LPG truck;
2. FAW chassis, 8X4;
3.35.5cbm, can load 15tons LPG;
4. CA6DF2-26, 260HP, Euro

"LPG tank truck"

Our factory is a professional LPG tank manufacturer in China, our Products fully passed ISO9001-2000 international quality system and 3C Authentication.
We have the biggest LPG trailer and LPG truck in the world:

1. We have the biggest LPG trailer in the world, the valid volume is 58.5cbm; Low transport costs, more profit.

2. We have the biggest LPG truck in China, it's valid volume is 35.5cbm;

3. Our LPG storage tank ranged from 10cbm to 100cbm. Both on the floor Ones and in the ground ones.

Main parameter of 24.8cbm LPG truck:

Parameter for the LPG truck:

Item	unit	parameter
Vehicle model		LPG truck VL5311
Overall dimensions	mm	1170024903690
Fact cubage	L	35500
GVW	kg	Approв31000
Loading capacity		Approв14910
Mass in working order		Approв15895
Wheel base	mm	1900+4500+1350
Exhaust/hp	ml/kw	7146/203
Max speed	km/h	79
Tire specification	11.00-20	Engine	FAW
Traction system	8x4	Engine type	BF6M1013-26E3
Chassis manufacturer	Dongfeng	Number of axles	4
Allowable passengers in cab		3

Item	unit	parameters
Products name		LPG storage tank
Filling medium		LPG(propane)
Tank size(inner diameter*length)	mm	DN2374X8960
volume	m3	35-36m3
Designing pressure	Mpa	1.77
Working pressure	Mpa	?1.6
Working temperature	╟C	?50
Hydraulic test pressure	Mpa	2.22
Air test pressure	Mpa	1.77
Material of tank and accessory	Q345R,16MnIII
standard	GB150 Steel pressure vessel, pressure vessel safety technology to monitor the procedures
accessory	Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc.
