8000L Fuel Tanker Dongfeng 4X2 Oil Tank Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

8000L Fuel Tanker Dongfeng 4X2 Oil Tank Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$16000.0 - $20000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 20000/ Piece
10.0	US $ 18000/ Piece
20.0	US $ 16000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From May 29, 2015 To Dec 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:EQ1121

Transmission Type:Manual

Power:Diesel

Load Capacity:1-10t

Emission Standard:Euro 3

Tank Volume:5001-10000L

Drive Wheel:4�2

Seats:?5

Horsepower:150-250hp

Engine Capacity:4-6L

Storage:Oil

Tire Type:Inner Tube

Tire Certification:ISO, CCC

Tire Design:Bias

Condition:New

Chassis Brand:Dongfeng, Dfac

Cabin:Half Row, with A/C

Cummins Engine:125kw / 170HP

Gearbox:6 Forward Gears & 1 Reverse

Drive Axle:9t

Tire:9.00-20

Tanker Load:8000L Optional 10000L 12000L

Tanker Material:Carbon Steel Optional Stainless Steel, Aluminum

Tanker Thickness:4 Mm / 5mm

Equipment:Fuel Pump Optional Flow Meter, Tanker, Refueling G

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

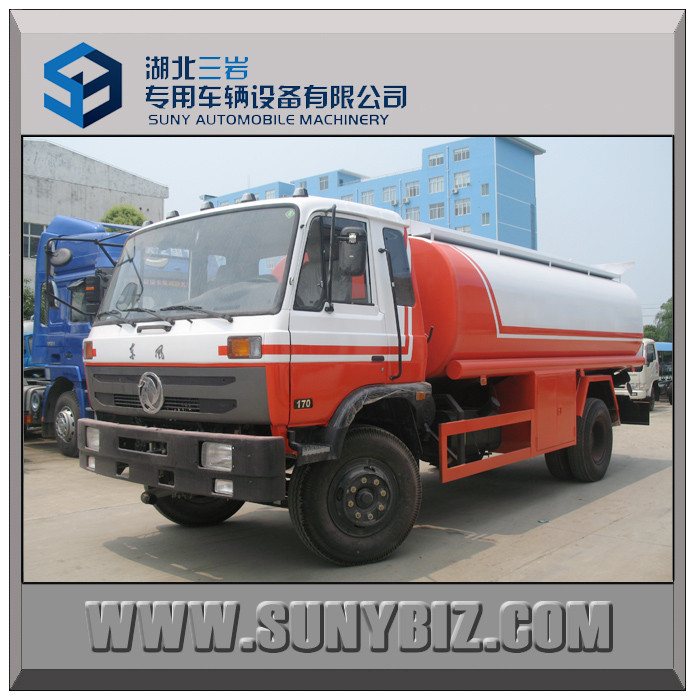

8000L Dongfeng 4x2 Oil tank truck
Cummins 170hp diesel engin,6-speed,
9tons rear axle,
tanker Material:Carbon steel Q235
Optional:Stainless steel SS304 SS316
Optional :10000L fuel tanker truck
12000L tanker truck

Optional: Righ Hand Drive / All Hand Drive(off-road/4WD/Four-wheel drive)

Products Technical Specification
Product Name		Dongfeng 4*2 FuelTank Truck
Chassis model		EQ1121
Fuel type		Diesel
Cabin		Dongfeng153,Half row,with sleeper
Emission Standard		Euro 3
Fact Cubage (L)		8000
Whole vehicle main dimensions (mm)	Overall dimensions (L�W�H)	730024702800
	Tank dimensions	450022001400
	Wheel base	3950
	Front overhang	1250
	Rear overhang	1820
	Min. ground clearance	400
Weight data (kg)	G.V.W	12450
	Curb weight (chassis)	5445
	Max payload	8000-12000
Whole vehicle main performance	Max. speed (km/h)	80
Whole vehicle main performance	Max. slope of climb (%)	30
Engine	Model	B170 33
	Maximum power	125kw / 170hp
	Number of cylinders	6
	Displacement (L)	5900
	Engine Manufacturer	Dongfeng Cummins Engine Co., Ltd.
Gear box	Number of gears	6 forward gears & 1 reverse
Axle	Front Load capacity (ton)	3.6
Axle	Rear Load capacity (ton)	9
Suspension	Front	8- Leaf spring
Suspension	Rear	10+8-leaf spring
Steering Wheel	left/right hand drive	RHD
Brake system	Service brake	Air braking
Electric device	Rated voltage	24V
Tyres & Quantity		9.00-20 6+1
Tank Description
Tank dimensions(mm)		450022001400
Standard configuration	Shape	Oval or Square
	Material	Carbon steel Q235 Optional Stainless steel
	Thickness	4mm Optional 4mm
	Single-chamber one manhole,two artesian mouth, two pipelines, Equipment, pumps,Refueling gun, flow meter, tax fuel dispenser,refueling reel (Optional all API Standard) Equipped with the specific pump to suck and discharge the oil automatically. Discharge and loading,Gravity discharge,Top loading.Optional:Bottom loading

We also have Dongfeng/DFAC/DFL water tank truck,Oil tank truck,Garbage truck,Van truck,Flatbed Truck,Dump truck,Truck with crane,etc

Other brand of Chassis eg,Dongfeng-DFAC,FOTON-AUMAN-FORLAND,FAW-J5-J6,SHACMAN-F3000-M3000-X3000,SIONTRUK-HOWO-A7,Beiben,IVECO-HONGYAN-GENLYON,JAC,JMC,YUEJIN,KAMA,T-KING,UD,HINO,ISUZU,CAMC,C&C.etc.

Product Series:
1. Fuel tank truck/trailer/semi-trailer/container.
2. Water tank truck/trailer/semi-trailer/container.
3. Chemical tank truck/trailer/semi-trailer/container.
4. Bitumen tank truck/trailer/semi-trailer/container.
5. Bulk powder tank truck/trailer/semi-trailer/container.
6. Gas tank truck/trailer/semi-trailer/container.
7. Dump truck/trailer/semi-trailer
8. Truck mounted crane
9. Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck

Chassis Brands:
-Dongfeng-DFAC-KINGRUN,KINGLONG
-FOTON-AUMAN-FORLAND
-FAW-J5-J6
-SINOTRUK-HOWO-A7
-SHACMAN-F3000-M3000-X3000
-Beiben-NG80-V3
-IVECO HONGYAN-GENLYON-NEW KING
-JAC
-JMC
-YUEJIN
-KAMA
-T-KING
-100P-600P-700P
-HINO 700
-UD

Packaging & Shipping
Truck is nude packing, shipping by container, bulk cargo, ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!

Customer service

We supply sincerity, efficient, professional, happiness service on pre-sale, in the sale, after-sale
Any requiry will be replied within 24 hours.
High quality ,competitive&reasonable price, fast lead time.
Our products are direct from factory,there is no middle man,no high markup,so we can provide quality items yet very competitive price.
We guarantee that all our goods has gone through strict quality control and testing to ensure that it is in good condition before ship out.We strive for 100% customer satisfaction on every sale we complete.
Fast delivery time: within about 10~~20 working days.
We provide 13 months warranty.
We supply quick-wear parts and spare parts in time for customer .

MOB: 0086 137 0717 3051
If you have any questions please let Adam Li know.
