80 Tons Rated Load 4 Axles Low Bed Trailer

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

80 Tons Rated Load 4 Axles Low Bed Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$10000.0 - $30000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 30000/ Piece
5.0	US $ 10000/ Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Aug 05, 2015 To Oct 14, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:PLY9003DBP

Type:Semi-Trailer

Load Capacity:40 Tons - 80 Tons

Certification:ISO9001, CCC, ISO/TS16949, SGS, BV CQC

Wheel Base:1310 mm

Tread:1820mm

Grade:Heavy Duty

Towing Pin Material:Carbon Steel

Impeller Type:None

Hook Type:None

Universal Joint Type:None

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:2" and 3.5" for Options

Differential Gear Type:None

Independent Suspension Type:Mechanical Independent Suspension System

Connecting Type:Semi-trailer

Shape:Flatbed

Axle Number:4

Tire Number:16

Self-dumping:Not Self-dumping

ABS Anti-lock Braking System:Optional

Material:Steel

Condition:New

Stringer:Made of Manganese Steel in H Shape

Technology with Stringer Forming:Automatic Submerged Arc Welding

Shipping Terms:by Bulk Cargo Ship / RO-RO/ 40 Hq Container

Guarantee Terms:Life-Long Quality Guarantee, 1 Year?s Free-Pairing

Rim Model:8.0-20 (or 9.0-22.5 or as Needed)

Tire Model:11.00 R 20 (or 12.00 R 22.5 or 315/80 R 22.5)

King Pin:Size of 2" or 3.5", Changeable Type

Color:as Needed

Rust Prevention:Sand Blasting, 1 Layer of Prime, 2 Layers of Paint

Customizing:Accepted

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:Phillaya

Packing:N/M

Standard:as needed

Origin:China

HS Code:87163990

Production Capacity:200 Units Per Month

Product Description

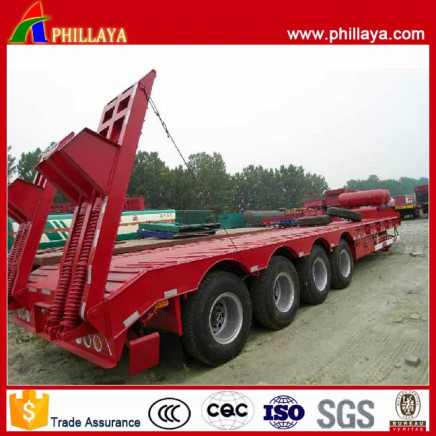

Four axles low bed semi-trailer
Color	Any color will be available
Rated Load	80 T
Tare Weight	13 T
Wheel Base	1310 (mm)
Tire Specifications	10.00R20
No. Of Tires	16
Axle Brand	FUWA Brand
No. Of Axles	4 Axles
Pieces of leaf-spring	10
Suspension	Heavy Duty Leaf Spring
Front/Rear Overhang	1950 mm
Outside Dimensions	14500x2500x1500 (mm) (L x W x H)
Material of Main Beam	Q345B/ST52-3 manganese plates, automatic submerged arc welded Main-beam Height 500mm, Lower flange: 20mm Upper flange: 20mm Mid Web: 12mm
Usage	For heavy duty machine, as transformer, crane, excavator transportation.
Brake System	Dual Lines Braking System With Automatic Air Chambers
Brake Air Chamber	Six double and two single chamber
Electrical System	24V, 7core socket, lights according to European standards.
Floor	3mm management plate
Tool Box	1 box of standard tools
Spare tire carrier	2 sets
Color and Logo	Depends on the buyer's requirement.
The traction pin	2 & 3.5 inch inter-changeable
Pin Height	According to the height of the tractor saddle.

Qingdao Phillaya International Trading Co., Ltd. is a comprehensive corporation majored in the Technology R & D, Import & Export of kingds of semi trailers like container semi trailers, flat bed semi trailers, side wall semi trailers, store house bar semi trailers, van type semi trailers, low bed semi trailers & kinds of tank semi trailers like fuel tank semi trailers, LPG semi trailers, LNG semi trailers, chemical liquid tank semi trailers, bulk cement semi trailers, asphalt tank semi trailer etc. of which tank bodys are made of carbon steel, aluminum alloy, or stainless steel.
We have two factories, your enquiry and visiting will always be welcome warmly. Our concept is to promise you better quality at competetive prices with best service all the time.

Buying Guides
1	You send us your enquiry
2	We shall reply you with the quotation within 12 hours
3	We negotiate on the configuration that you need
4	Confirmation of the tech data ? sign contract (P/I) ? 30% deposit (or L/C issuing)? production
5	Manufacturing process updated news ? completing production
6	Balance payment ? ex works ? shipment ? custom clearance ? A/S service for 1 year

Why to cooperate with Phillaya

Ø Price - competitive price (we are manufacturer ourselves)
Ø Quality - reliable with guarantee period of 1 year long (we have over 15 years' manufacturing experience)
Ø Delivery - timely for sure (experienced engineer and workers under efficient management, with advanced equipment and technology)
Ø Service - prompt reply, efficient communication by phone/email/app online. There are always perfect solutions to problems that you can come up with.

Alvin
Cell phone: +86 18553205202
Office: +86 532 8395 7810
