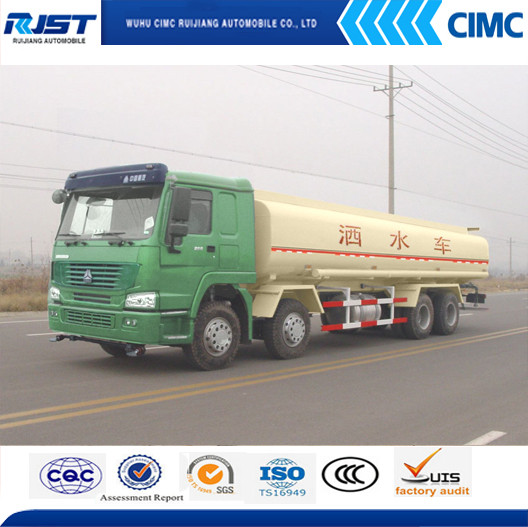

8*4 Water Cart Truck

More Views

8*4 Water Cart Truck

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T

Trademark:CIMC RJST

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL9402GY

Transmission Type:Automatic

Fuel:Diesel

Condition:New

Power:Diesel

Truck Type:Tanker Truck

Tire Design:Radial

Tire Certification:Gcc

Drive Wheel:2WD

Type:City Bus

Export Markets:Global

Additional Info.

Trademark:CIMC RJST

Packing:in Nude or in Container

Standard:ISO9001 CCC

Origin:China

Production Capacity:10, 000PCS Per Year

Product Description

Standard cabin with air conditioning
Rear two axles: ST16
Axle space: 4600+1350
Steel spring leaves: 9/12
Tare Weight (Kg): 13300
Loading Capacity (Kg): 17500
Max. Speed (Km/h): 102
Brakes: Air braking
Tyres: 12: 00-20
Outline Dimension (mm): 8984 (L) x 2496 (W) x 3800 (H)
Displacement (cm3): 9726

ELECTRICAL:
Voltage: 24 Volt.
Receptacle: 7 way
Light: Front marker lamp: White
Side marker lamp: White and red
Rear lamp: Red
Turn signal lamp: Amber

TANK SPECIFICATION:
One compartments
Tank material: Carbon steel, thickness 6 mm.
Bulkhead: Thickness is 6 mm.
Baffle: Thickness is 4mm approx.
Shape of tank: Ellipse(double "D").
Test pressure designed: 0.4MPa.

TANK ACCESSORIES AND FITTINGS:
Two manholes, with 10" fill/vent per compartment. Normal and emergency venting included in manhole assembly...
3"steel pipe line outlet

OTHER FITTINGS
Fire extinguisher box is big enough to set 8kg fire extinguisher. The two boxes are fixed on the left and right side of the tank.
Fender: Plastic material, semicircle.
Hose carries: 2 PCS, .
Hose: 2 PCS, Diameter 3"of 6 meters, with a 3"female quick camlock coupling.
With ABS
With relay valve

PAINTING:
As per customer's wish

PACKAGE:
The product can be shipped by bulk vessel

*84 water tank truck,sprinkler,watering cart,water tanker**
ame vehicles	tank truck	Chassis model	ZZ1257N4441W
Dimension(L×W×H) (mm)	830025503550(mm)	Wheelbase (mm)	4350+1350(mm)
			4350+1300(mm)
Track front/rear (mm)	2047/1820	Kerb mass (kg)	12400
Engine model		WD615.62,WD615.87
Max. power (kw/r/min)		196/2200,213/2200
Engine manufacturer		China National Heavy Duty Truck Group Co., Ltd., Weichai Power Co.,Ltd.
Front overhang / rear overhang (mm)		1320/2775,2825
Approach angle / Departure angle (°)		1015
Max. speed (km/h)		90
Max. total mass (kg)		24980
Tank effective volume (m3)		12
Working speed (km/h)		18.1
Pumping capacity (L/min)		5~10
Sprinkling width (m)		900
Anti-aircraft spray gun vertical gunshot (m)		14~18
