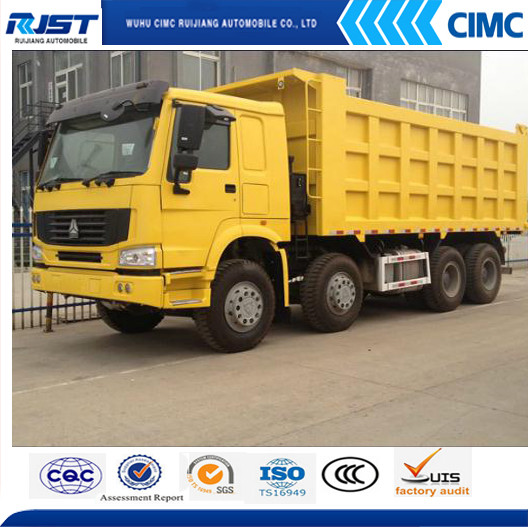

8*4 HOWO Dump Truck/Tipper Tractor

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 31000.0-45000.0/ Piece

Price:$31000.0 - $45000.0 / Piece

Trade Terms: FOB, CIF, CIP

Payment Terms: L/C, T/T

Price Valid Time:From Jun 27, 2015 To Sep 27, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZJV3255RJ42

Transmission Type:Automatic

Power:Gas/Petrol

Load Capacity:30t

Emission Standard:Euro 2

Drive Wheel:4WD

Tire Type:Inner Tube

Tire Design:Nylon

Condition:New

Truck Type:Dump Truck

Type:Box/Stake Truck

Export Markets:Global

Additional Info.

Trademark:CIMC RUIJIANG

Packing:in Nude

Standard:ISO9001

Origin:China

HS Code:8704230090

Production Capacity:8000 Units/Year

Product Description

Tipper Truck, Dump Truck Specification:
6X4 Truck
20-30 tons loading capacity
We can produce according to customer's special requirements.

Wuhu CIMC Ruijiang Automobile Co., Ltd specializing in special vehicle, up to now, five producing lines have been built, including concrete mixer, liquid & powder tank, dump truck (tipper), low flat-bed and common semi-trailer. After the improvement of technology in 2007, we have achieved a production capacity of 30, 000 units per year.

Pleae contact us to know more.

TRUCK SPECS	CHASSIS MODEL	ZZ33177N2867W, 8x 4, with air conditioner, RHD
	Engine	WD615.47 371HP Europe II
	Engine capacity	9726
	Engine power (kw)	273
	Transmission	HW19710
	Front axle	HF9
	Driving axle	HC16
	G. R. V. W (Kg)	45040
	Tare Weight (Kg)	15040
	Loading Capacity (Kg)	30000
	Max. Speed (Km/h)	75
	Brakes	Air braking
	Tires	12: 00-20
	Cab	HW76, two seats with one bed
	Outline Dimension (mm):	9100(L) x 2496 (W) x 3450(H)
	Wheelbase (mm)	1800+2800+1350
	Front axle load (kg)	9000
	Rear axle load (kg)	16000
BOX SPECS	Dimension of cargo box (mm)	6200 (L) x 2300 (W) x 1750(H)
	Lift system	Front lift, 180#cylinder
	Thickness of bottom plate(mm)	8
	Thickness of side plate(mm)	6
	Loading capacity of cargo box (m3)	25
