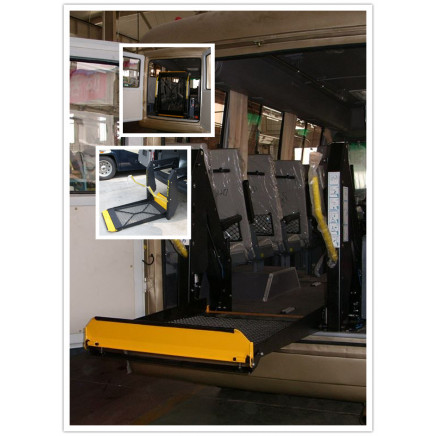

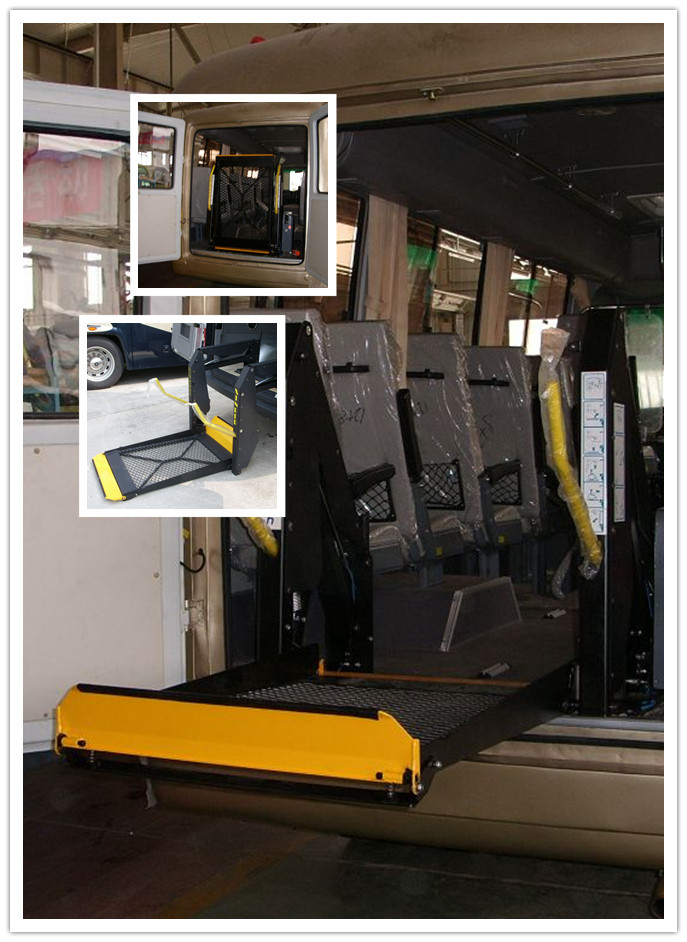

720*1150 Portable Electrical &Hydraulic Wheelchair Lift (WL-D-880)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 1/ Piece

Price:US $1.0 / Piece

Trade Terms: FOB, CIF, EXW

Payment Terms: T/T, Paypal, Western Union

Price Valid Time:From May 28, 2015 To Aug 13, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL-D-880

Application:Van, Minibus

Lift Mechanism:Electrical &Hydraulic Lift

Carrying Capacity:350kg

Moves:Stationary

Driven Type:Hydraulic

Running Mode:Stationary

Certification:CE, Ts16949

Loading Capacity:350 Kg

Volt:12/24 V

Platform Dimension:1150*720mm/1250*820mm

Max Floor Height:880 Mm

Max Working Pressure:14 MPa

Own Weight:134 Kg

Operation:Electric and Manual

Working Method of Front and Rear Rollsto:Automatic

Position of Hydraulic Pump:Inside Vehicle

Export Markets:Global

Additional Info.

Trademark:Xinder

Packing:Wooden Case

Standard:CE

Origin:Jiangsu Changzhou

HS Code:8428909090

Production Capacity:1000 Sets

Product Description

A. INTRODUCTION

WL-D series Dual-Arm wheelchair lift provides an easy access for the people in wheelchair to get in/out of vehicles. The platform can move smoothly, reliably and safely, whose loading capacity can be up to 350kg. There is electrical &hydraulic control system in WL-D series wheelchair lift, which can operate lift to extend, stow, lift and lower down. Lift performance is controlled by standard controller which can be wire control or remote control. Moreover, there is manual equipment for manual operation.

Maintenance free bearing is used at hinged joint, so that this lift is easy to maintenance. This van wheelchair lift will take up little vehicle space because of the exquisite and compact design and completely steel structure.

WL-D Series wheelchair lifts are fully hydraulic in operation, for both the fold/unfold and up/down cycles. Lift operation is controlled by the standard hand-held control, the on-lift controls, or the optional remote control.

This WL-D-880 wheelchair van conversion offers you dependable accessibility while its trim, compact design maximizes valuable interior space. The lift also features a strong durable steel frame built to give you years of dependable service.

B. ADVANTAGES:
1. Automatic Inboard and Outboard Rollstops
2. Powerful hydraulic pump ensure smooth, stable operation for heavy wheelchairs and scooters
3. All-steel frame features convenient handrails for increased comfort and security
4. Stable, non-skid platform with automatic inboard and outboard rollstops accommodates most 5. Wheelchairs and scooters
6. Pre-lubricated bearings at all major pivot points offer long-term durability
7. High gloss, polyester powder coat finish resists corrosion
8. Built in manual backup system
9. Compact design, quiet and smooth operation
10. Easy to maintain

Loading capacity	Own weight	Electric system	Max working pressure	Platform dimension	Max floor height
320 kg	134 kg	12-24 Volt	14 Mpa	1150720mm/1250820mm	880 mm

Model	Operation	Working Method of front and rear rollstop	Position of Hydraulic pump	Application
WL-D-880	Electric and manual	Automatic	Inside vehicle	Van, minibus

Model	Overall Length(A)	Overall Width(B)	Overall Height(C)	Platform Net Length(D)	Platform Net Width(E)	Required Door Width(F)
WL-D-880-1150	440mm	1135mm	1225mm	1150mm	720mm	1000mm
WL-D-880-1250	440mm	1235mm	1325mm	1250mm	820mm	1100mm
